Description and Operation
>>
Heater and Air Conditioning
>>
Air Conditioning System
Air Conditioning System

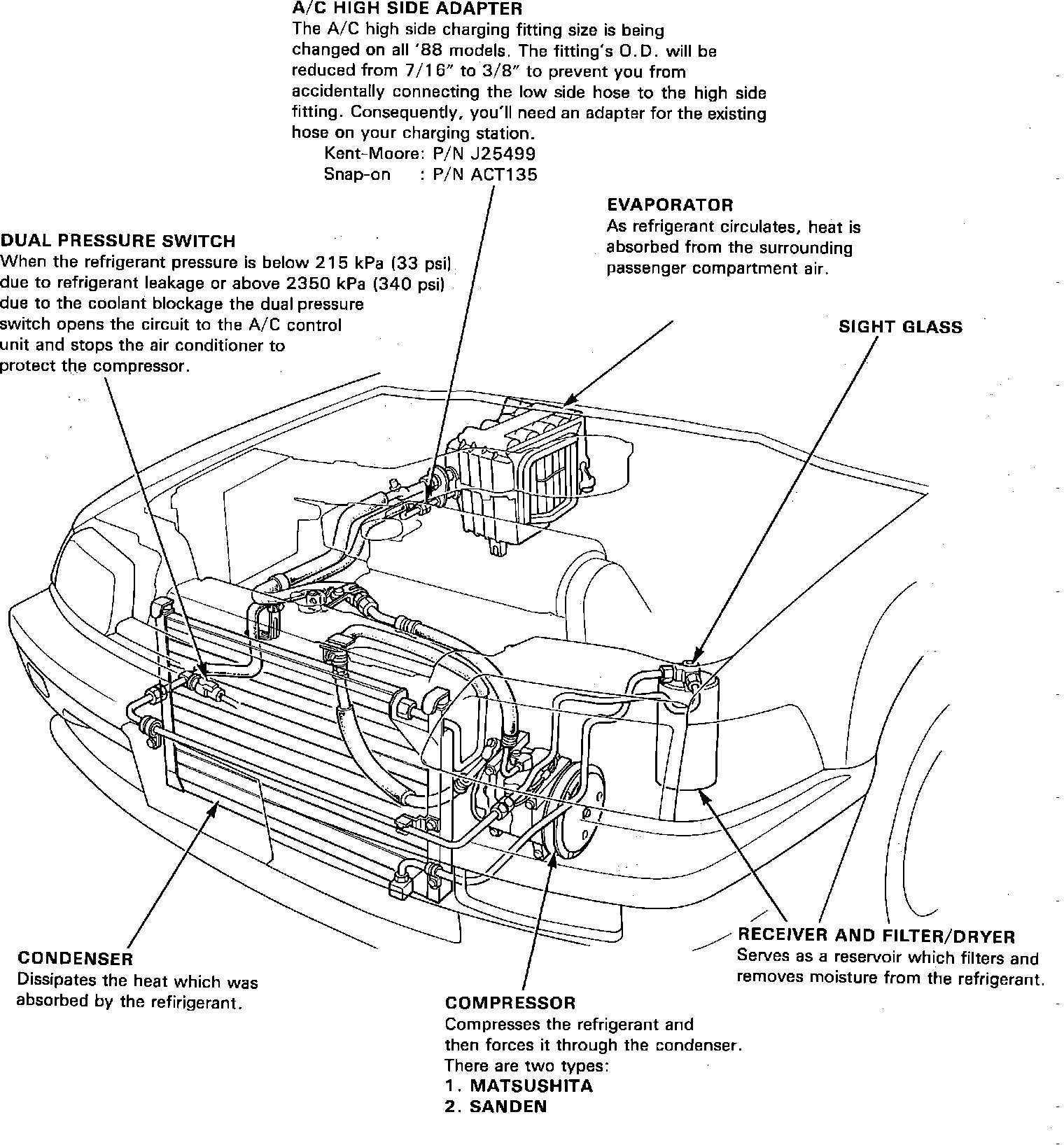

Fig. 23 System description, A/C.:
