Brake Caliper

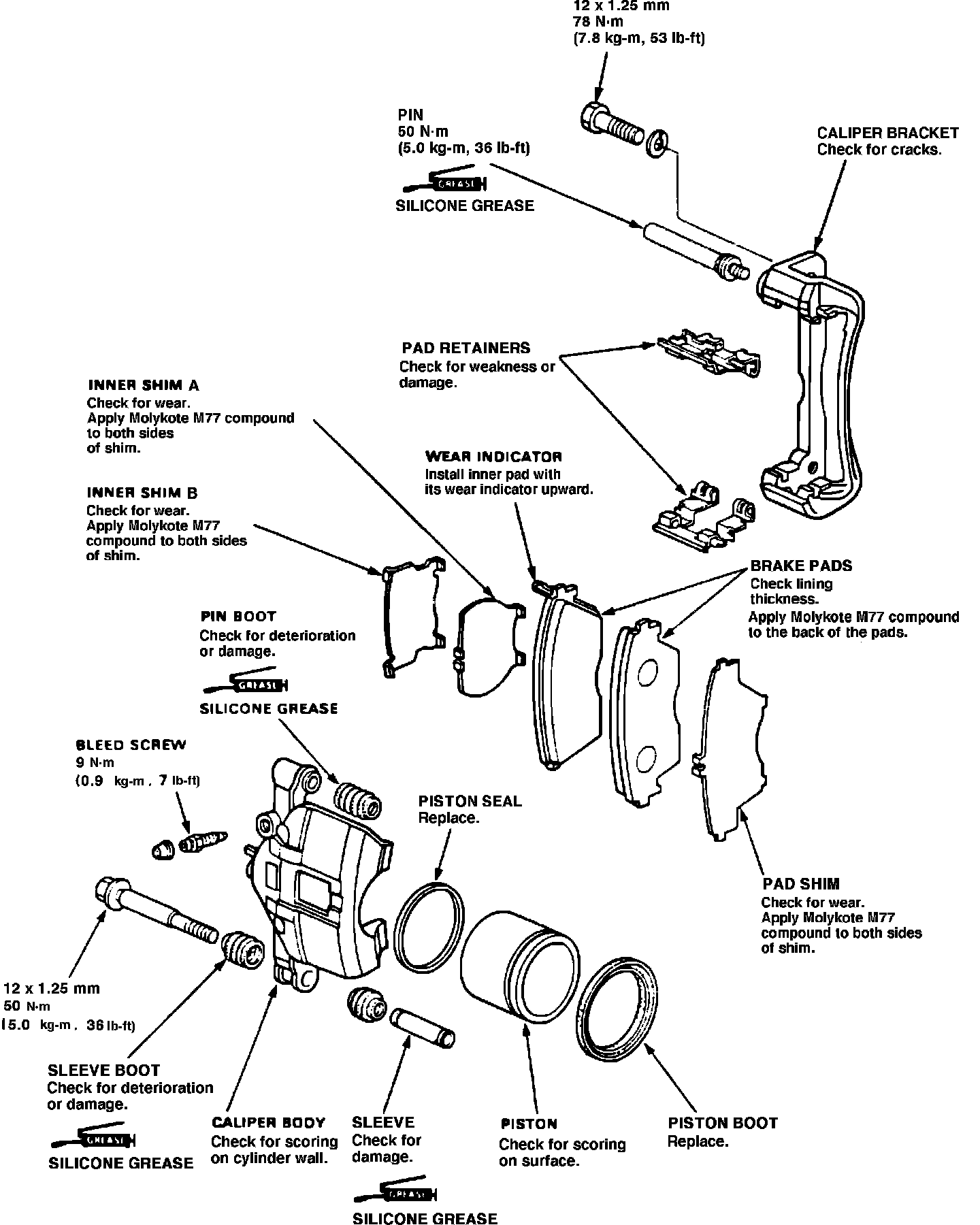

Fig. 6 Front disc brake caliper exploded view. 1988 Civic Except Wagon & CRX except HF:

Fig. 9 Front disc brake caliper exploded view. 1988 Civic Wagon Less 4 WD:

Fig. 10 Front disc brake caliper exploded view. 1988 Civic Wagon With 4 WD:
