Emission Control Systems: Locations

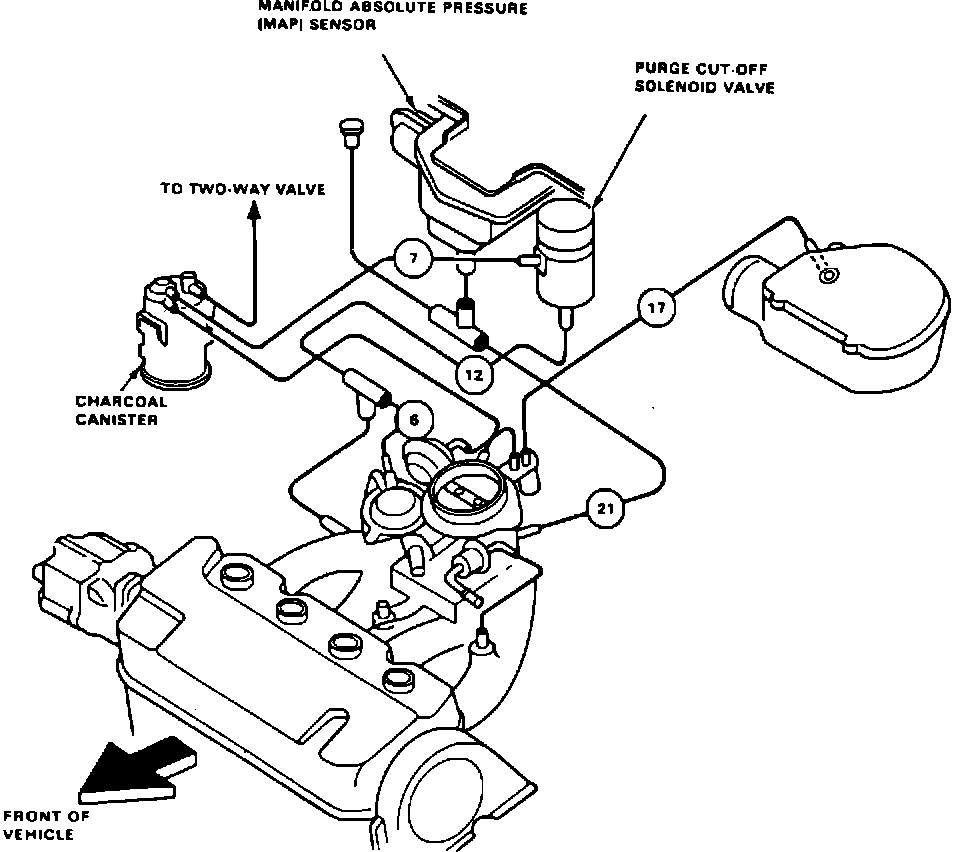

Vacuum Components & Connections.:
Engine Compartment
Applicable to: 1988 Civic 1500 w/Fuel Injected Engine
