Engine Compartment Reference Diagram

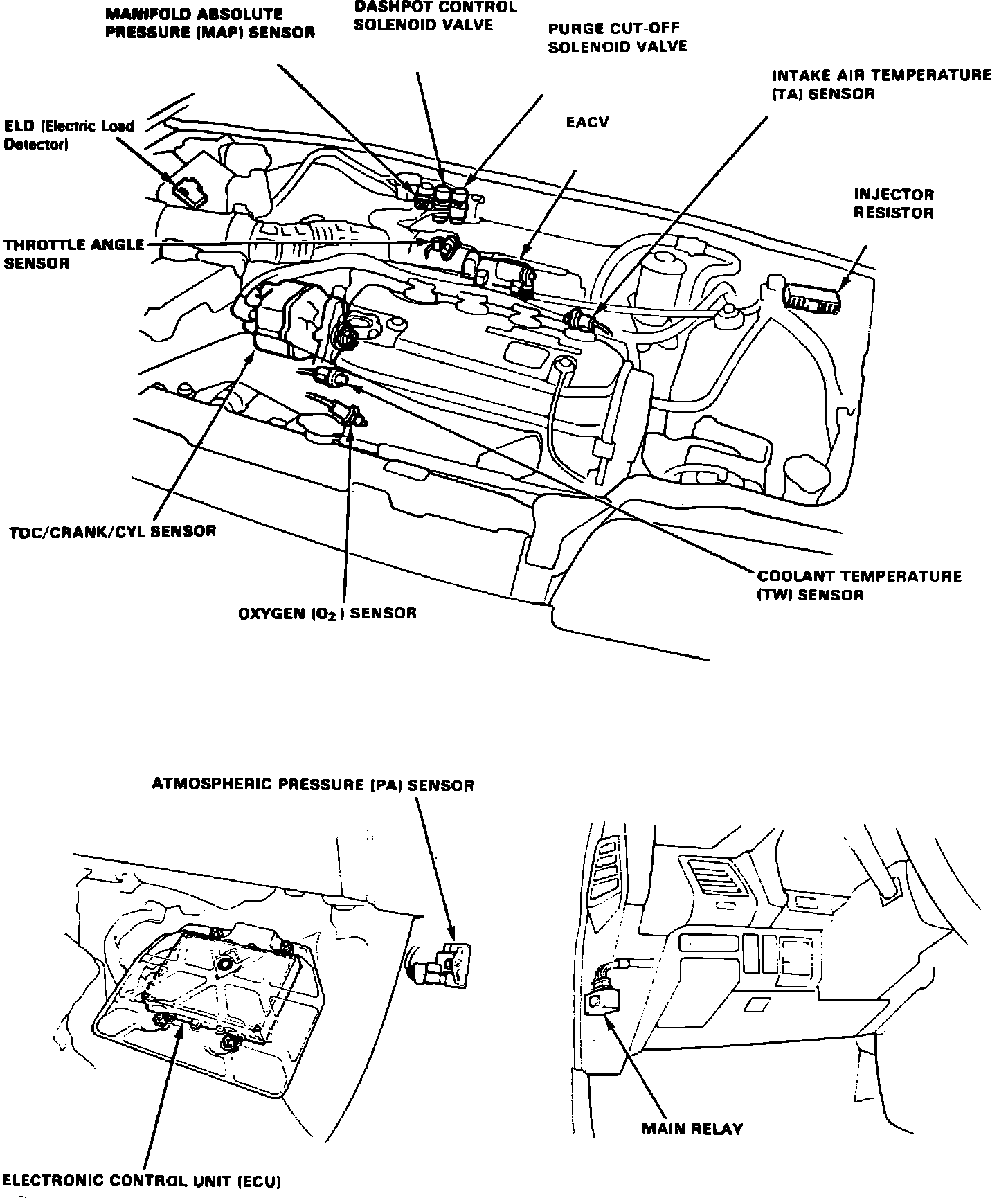

Fig. 65 Engine Compartment Reference Diagram.:

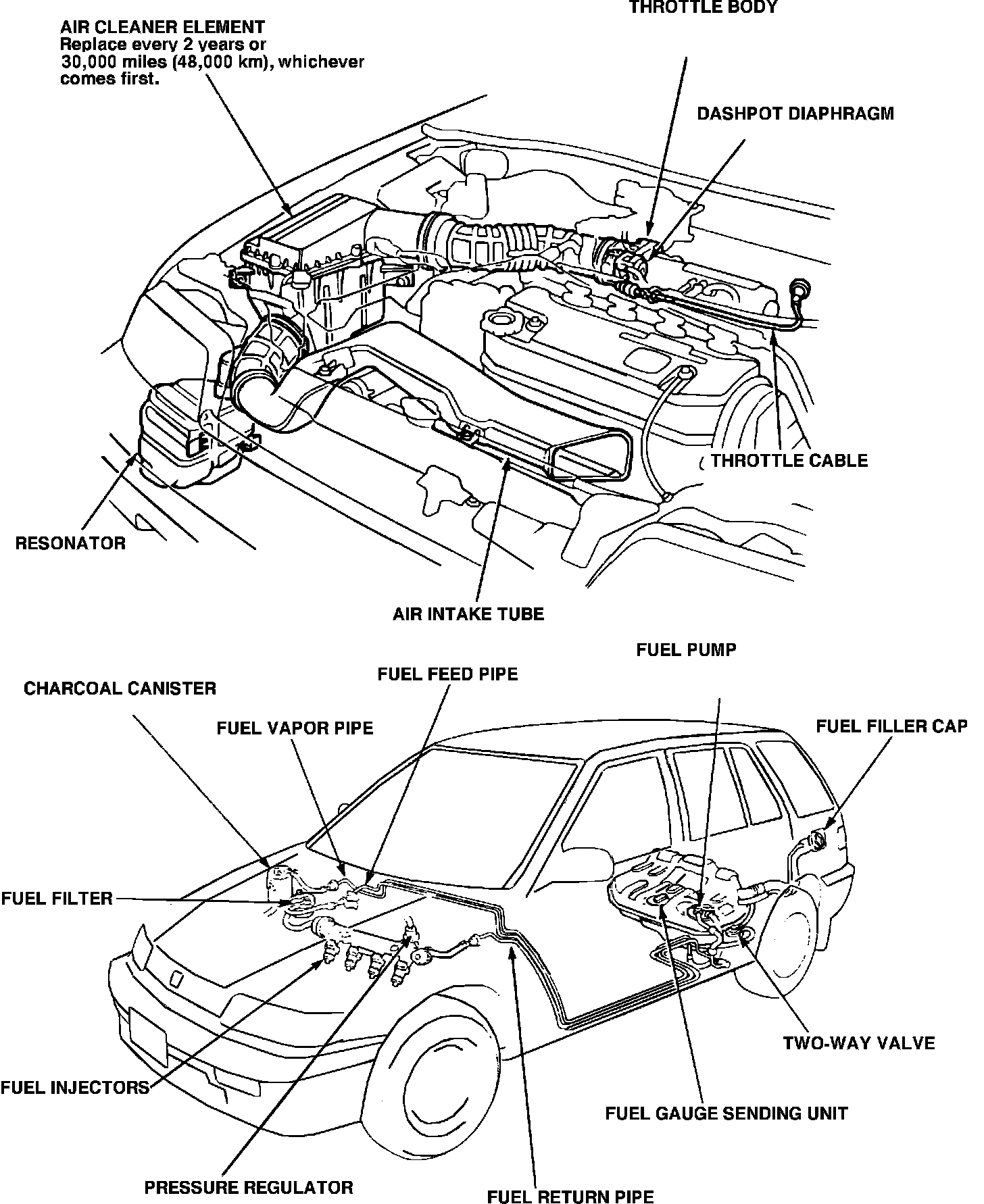

Fig. 65 Engine Compartment Reference Diagram.:



Fig. 65 Engine Compartment Reference Diagram.:
