Radio - Replacement Repair Harness

87honda02

Model
ALL

Applicable To
'86-'88

File Under
ELECTRICAL

Bulletin No.
87-020

Issue Date
AUG 28, '87

Replacement Radio Repair Harness





A radio wire harness is now available to repair damaged wire harnesses.

The harness consists of a 16 pin connector with color matched wires that can be spliced to the damaged harness, eliminating the need to replace the vehicle's wire harness.

To connect the repair harness to the damaged wire harness, cut the repair harness to the length needed. Attach wires using crimp connectors from the wire terminal kit listed below.

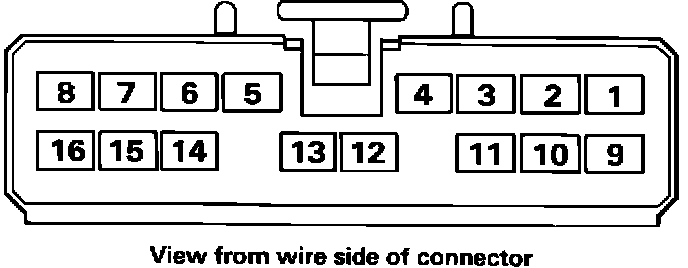

Pin Wire Color Function

1 Red/yellow Right rear speaker (+)
2 Blue/yellow Left rear speaker (+)
3 Yellow/white Power antenna
4 Yellow/red Switched power (hot with key on)
5 White/yellow Memory power (hot at all times)
*6 Red/Black Illumination power (hot with lights on)
7 Blue/green Left front speaker (+)
8 Red/green Right front speaker (+)
9 Brown/white Right rear speaker (-)
10 Gray/white Left rear speaker (-)
11 Black Ground
12 Blue/red Not used
13 Blue/black Not used
14 Blue/white Not used
15 Gray/black Left front speaker (-)
16 Brown/black Right front speaker (-)

*not used on '86-'87 model radios; not used on all '88 models
PARTS INFORMATION

Repair Harness H/C 2647824 P/N AE-94T91063F01
Terminal Kit H/C 0252437 P/N 07692-0010000
