Complete Body & Chassis Wiring Circuit

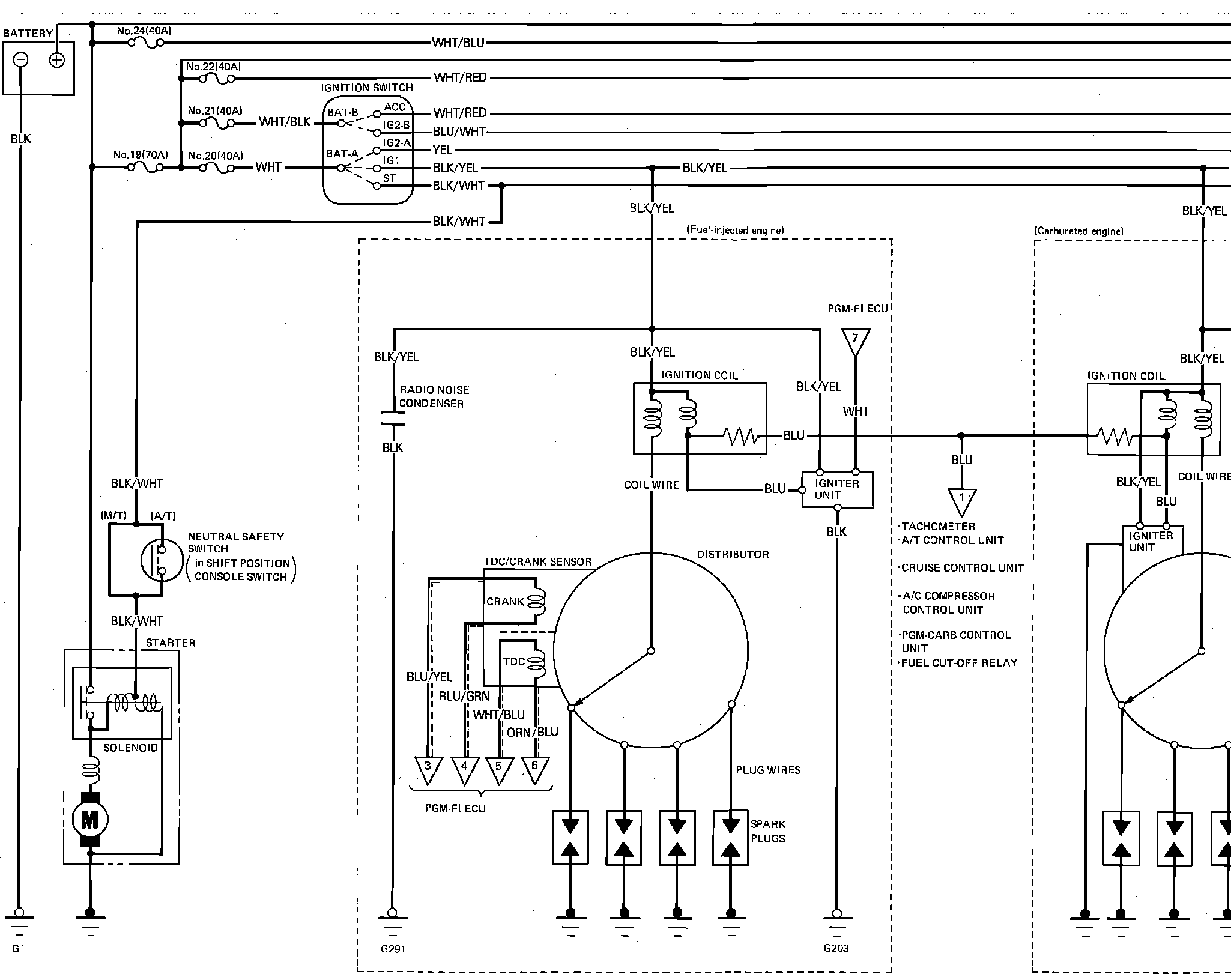

��\cFig. 20a Complete Body/Chassis Wiring Diagram:

Charging, Ignition, Distributor.

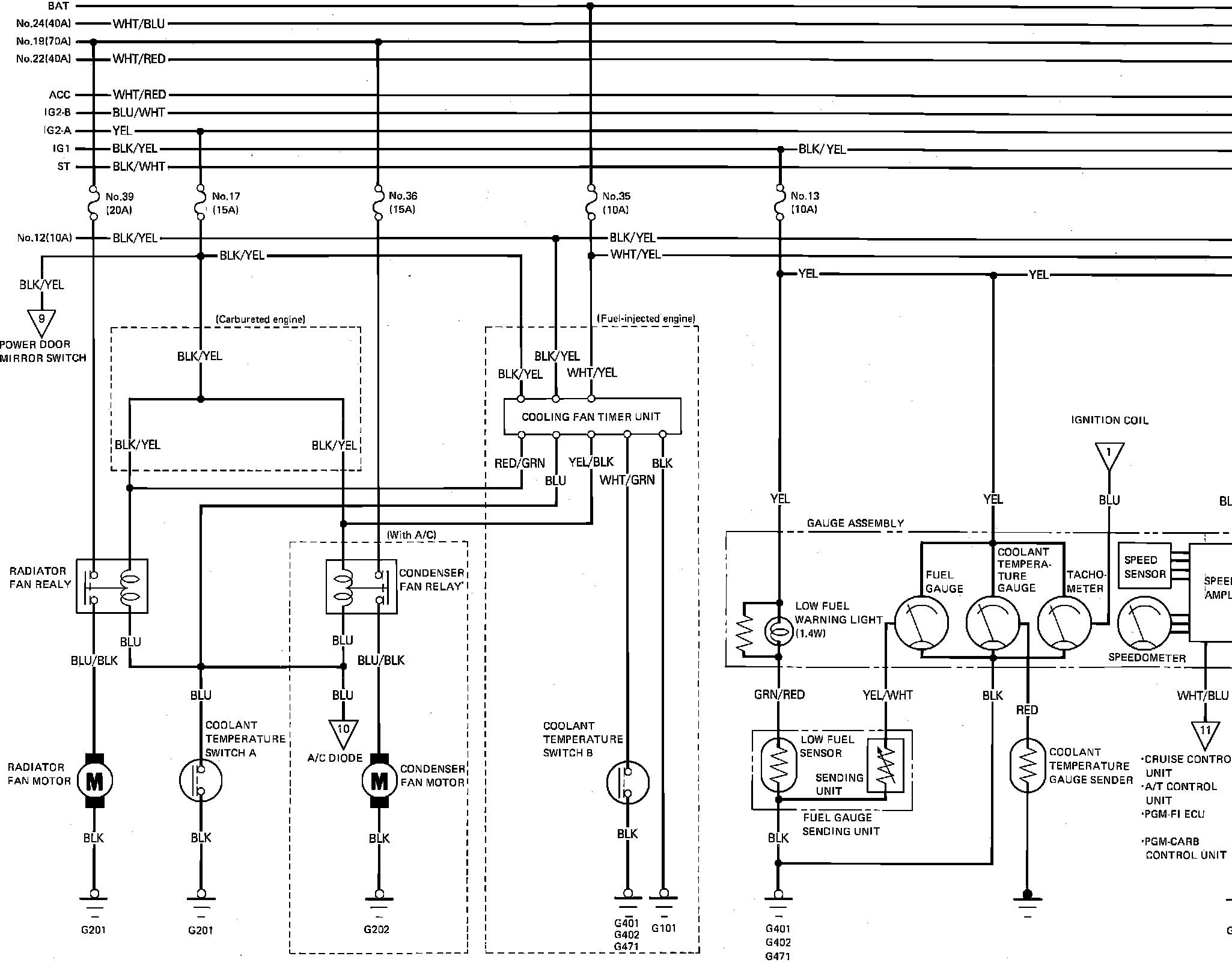

d$]cFig. 20b Complete Body/Chassis Wiring Diagram:

A/C Cooling Fan Timer and Motor, Radiator Fan Relay and Motor, Gauges, Fuel Sending Unit.

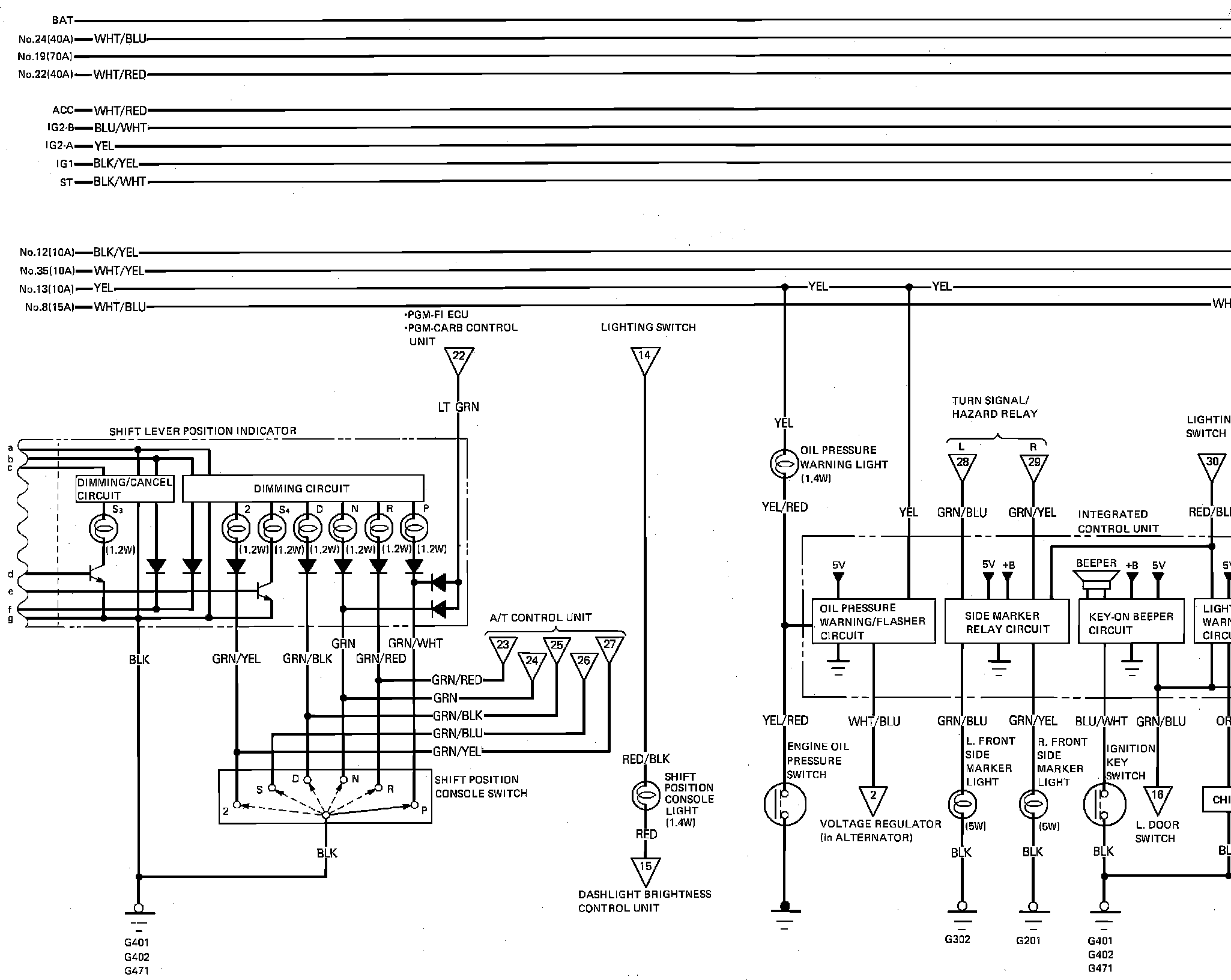

�]cFig. 20c Complete Body/Chassis Wiring Diagram:

Shift Lever Position Indicator, Warning Lights.

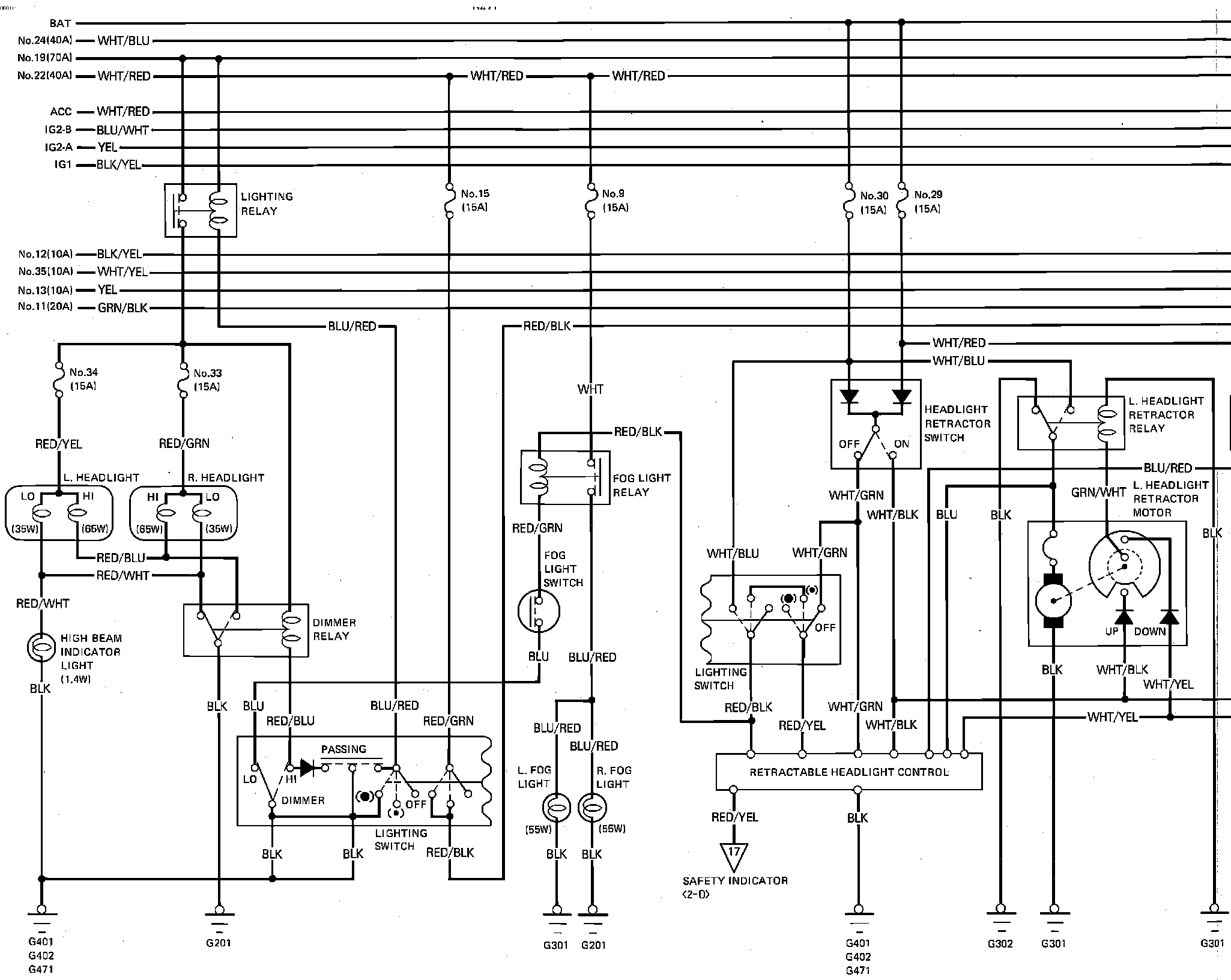

�^cFig. 20d Complete Body/Chassis Wiring Diagram:

Headlight Control System.

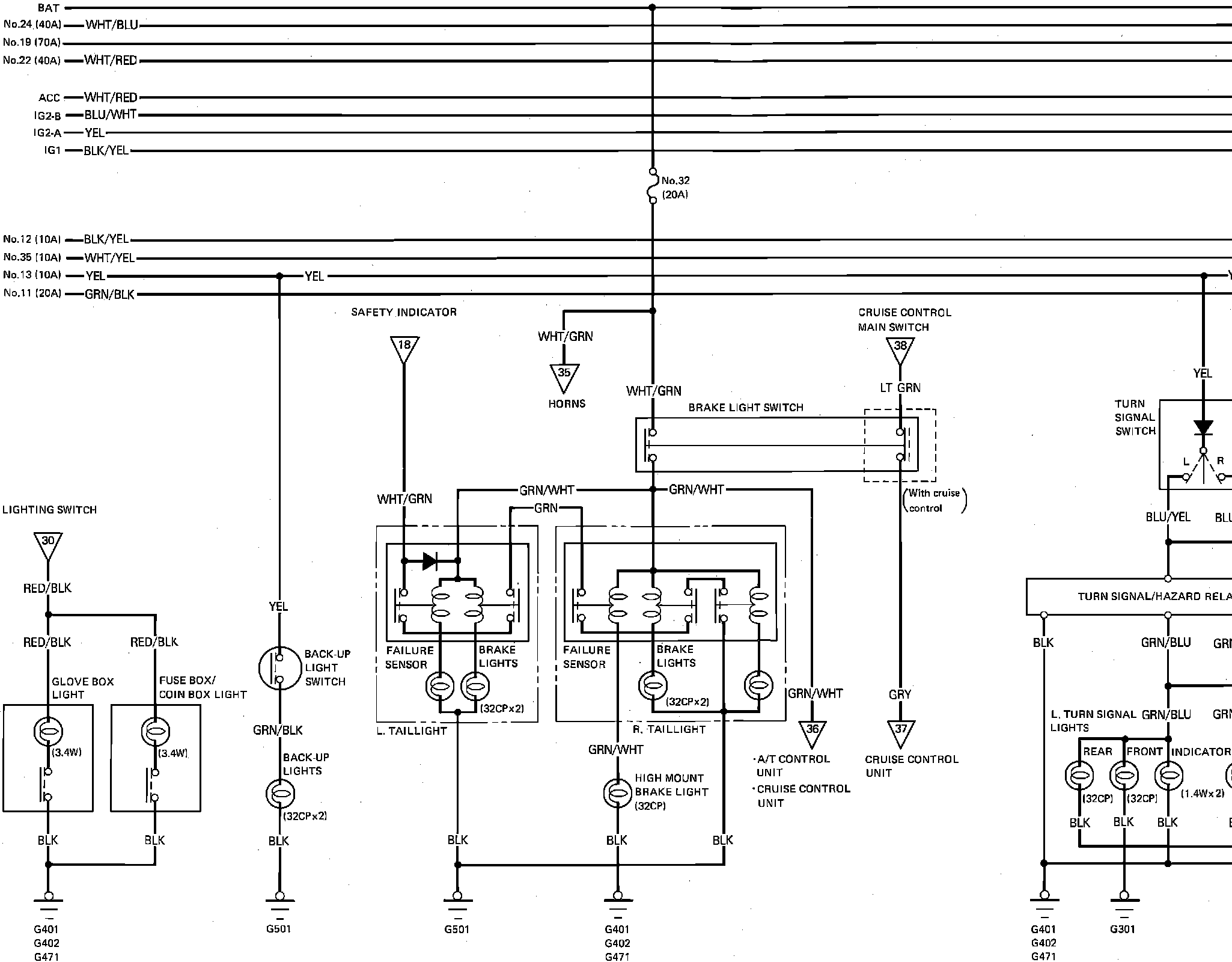

�^cFig. 20e Complete Body/Chassis Wiring Diagram:

Brake Light Switch, Turn Signal and Hazard, Radio Power Antenna.

R�^cFig. 20f Complete Body/Chassis Wiring Diagram:

Clock, Cigarette Lighter, Power Door Mirrors, Horn, Seat Belt Control System.

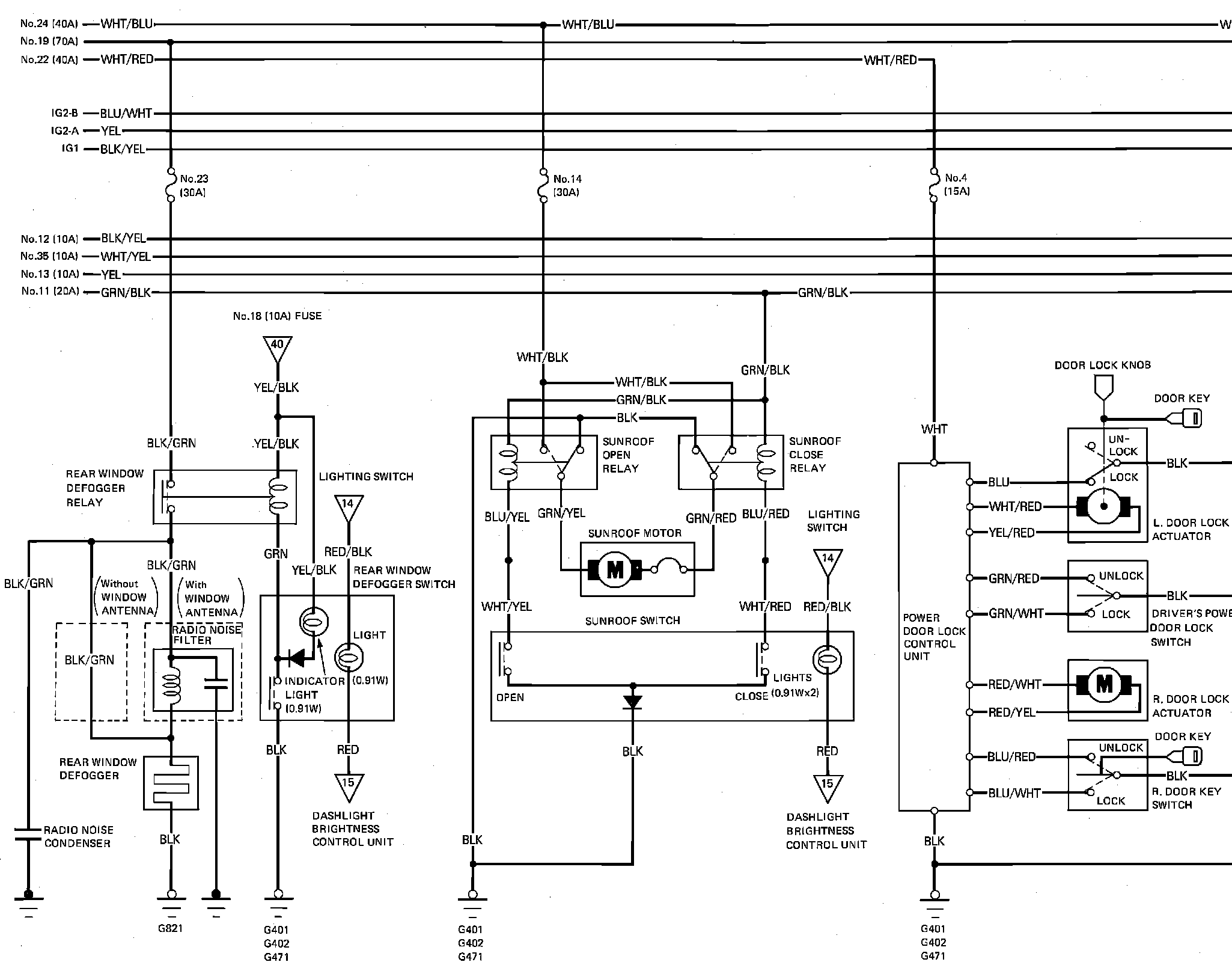

�c_cFig. 20g Complete Body/Chassis Wiring Diagram:

Rear Window Defogger, Sunroof Switch and Motor, Power Door Lock Control, Power Window Control.

)�_cFig. 20h Complete Body/Chassis Wiring Diagram:

Windshield Wiper System, Cruise Control, ECU (Partial Fuel Injection).

@:`cFig. 20i Complete Body/Chassis Wiring Diagram:

ECU (Partial Fuel Injection) Carbureted.

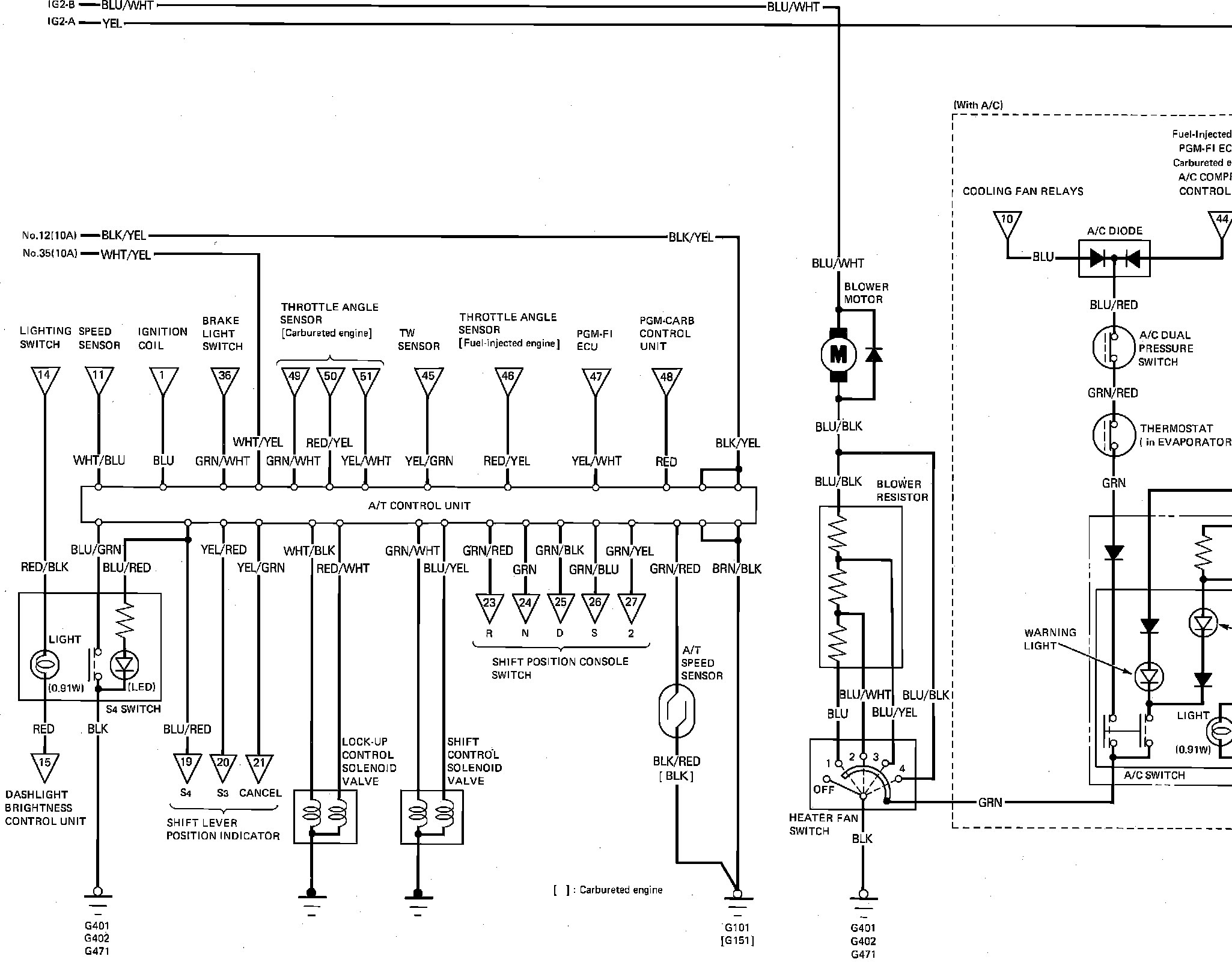

�`cFig. 20j Complete Body/Chassis Wiring Diagram:

A/T Control Unit, Heating System.

Fig. 20k Complete Body/Chassis Wiring Diagram:

A/C System.
