Door/Trunk Ajar Indicator/Lamp

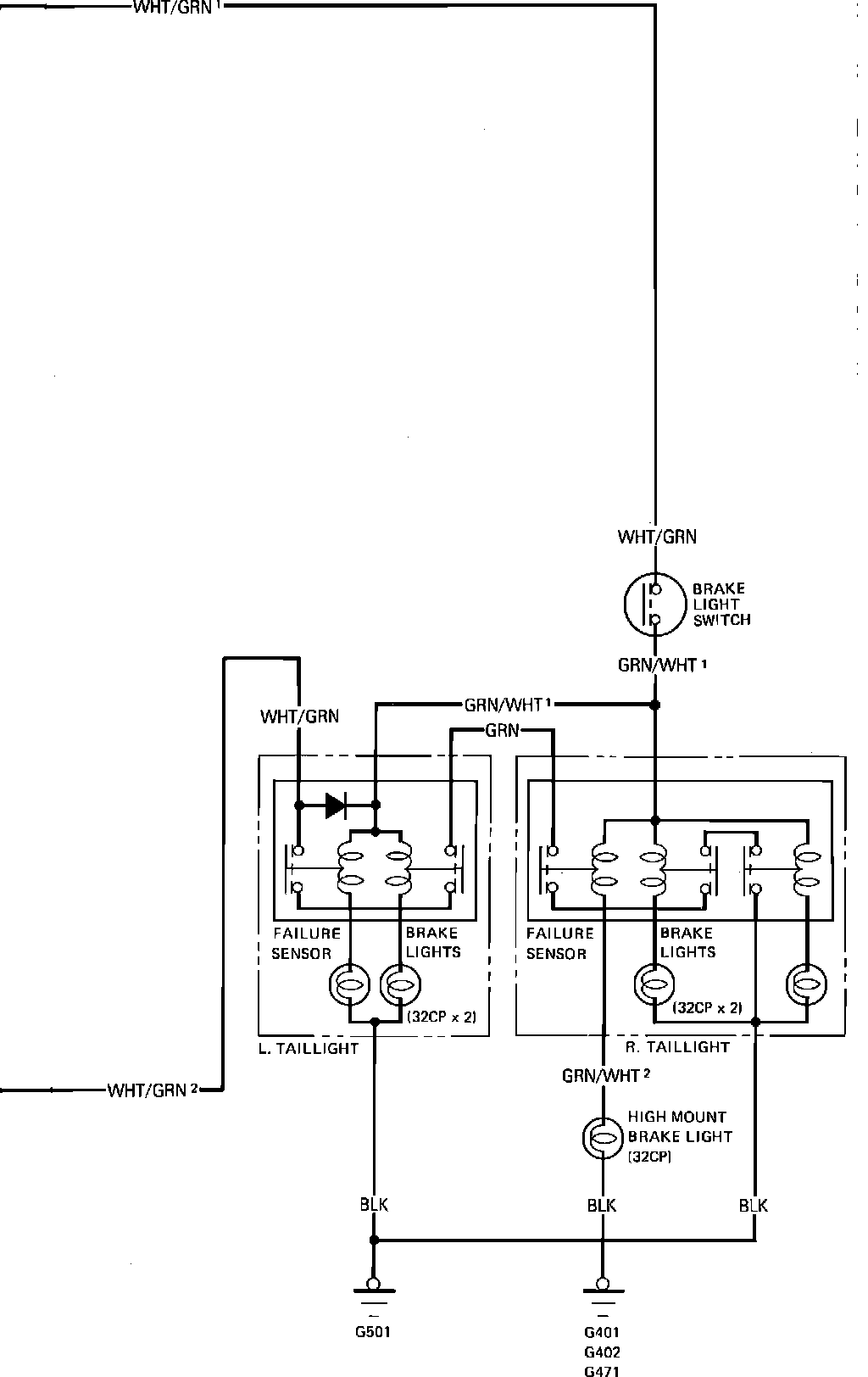

Fig. 67a Safety Indicator Wiring Diagram:



Fig. 67b Safety Indicator Wiring Diagram:
