Interior Lighting Module

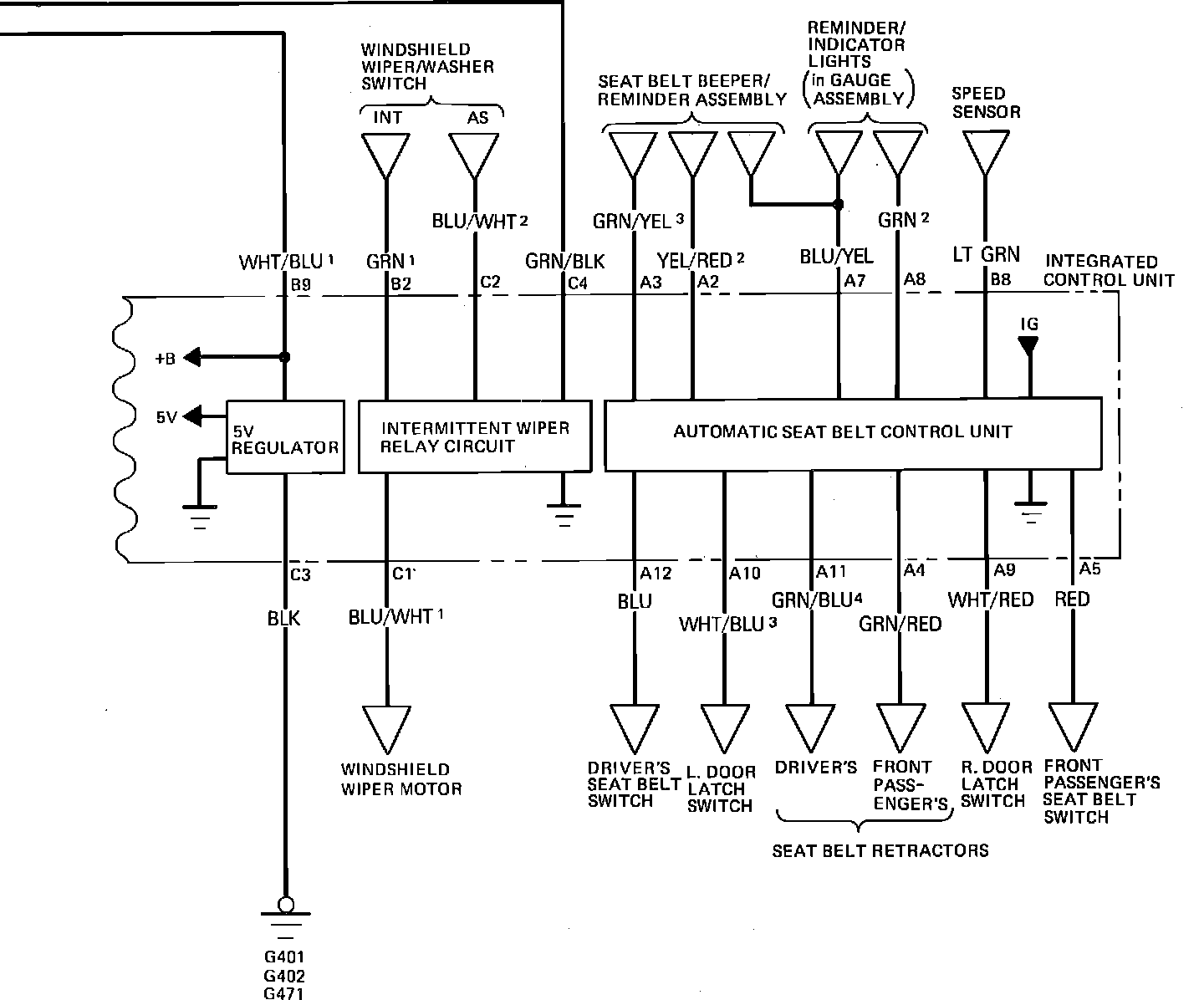

Fig. 53a Integrated Control Unit Wiring Diagram:

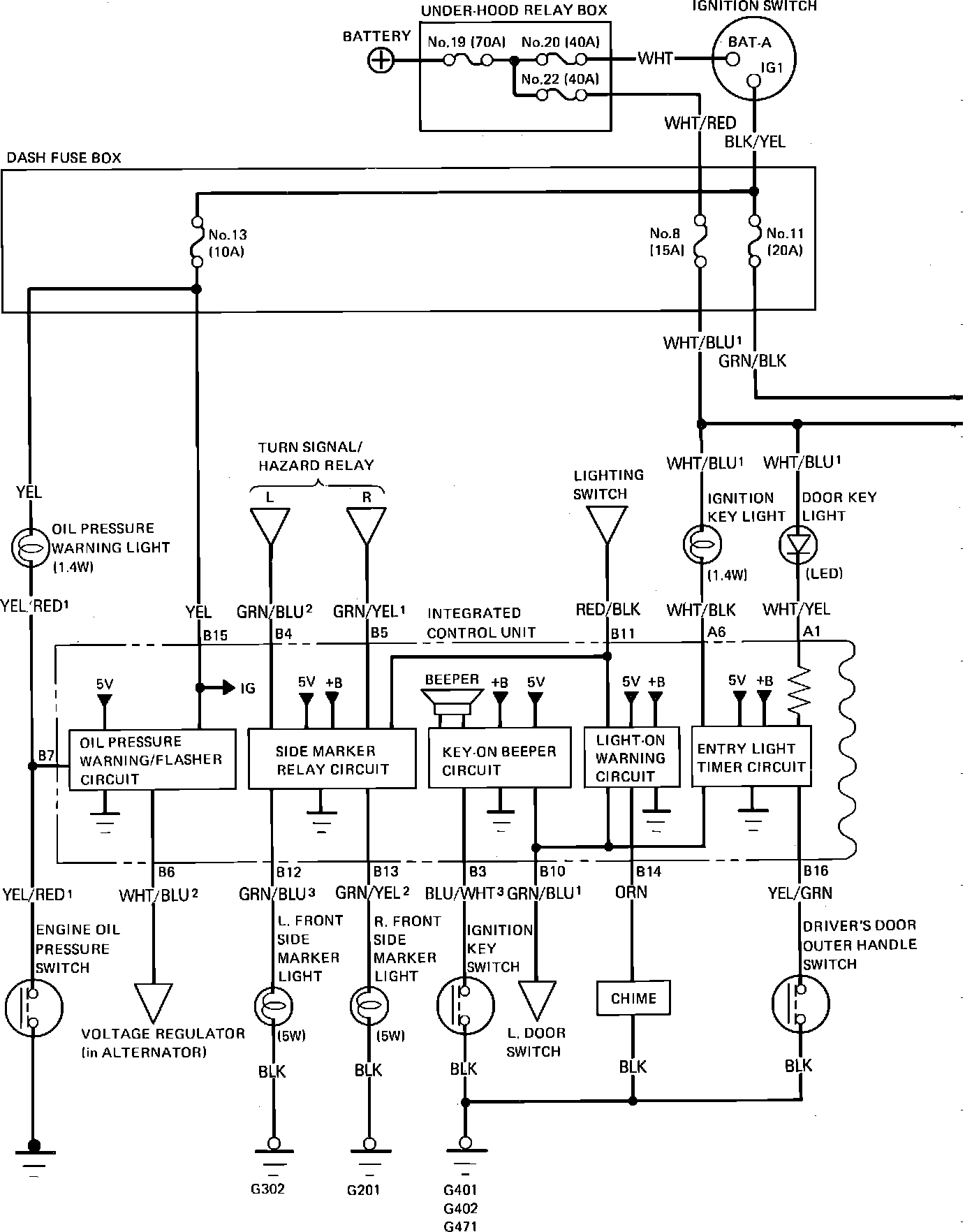

Fig. 53b Integrated Control Unit Wiring Diagram:
