Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1988
>>
Prelude L4-1958cc SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Wire Harness Routing
>>
Engine
Engine

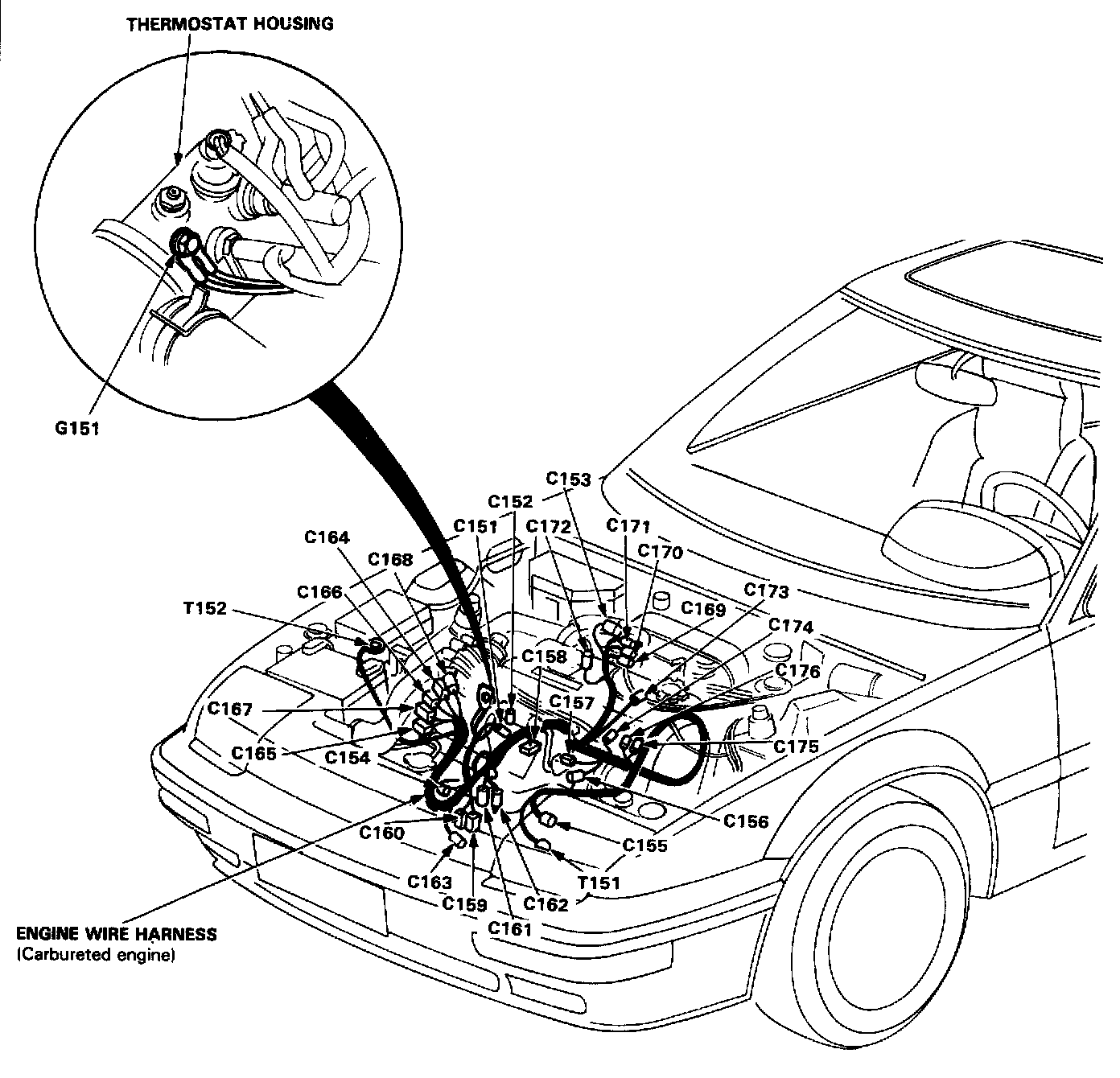

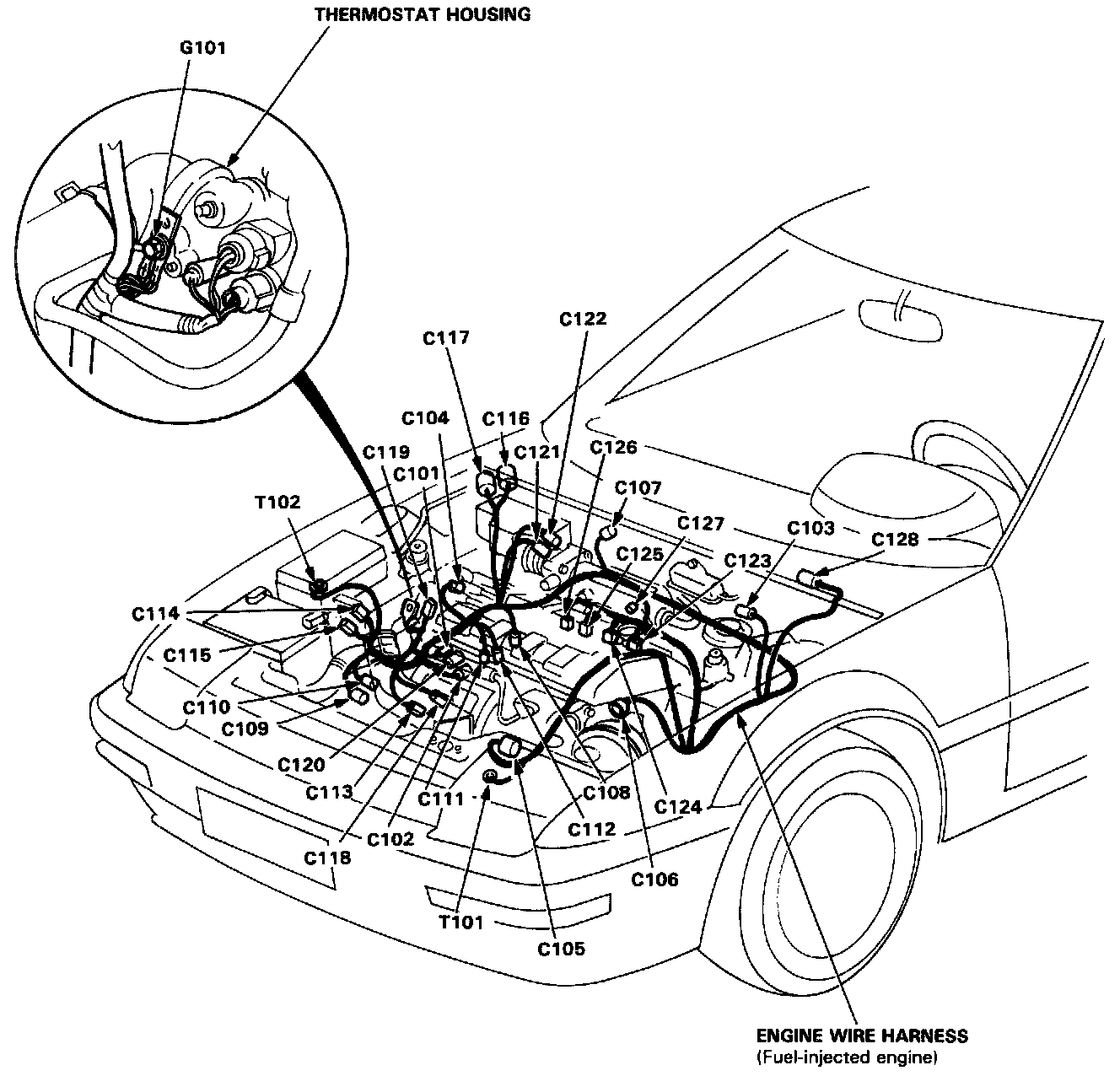

Engine Compartment

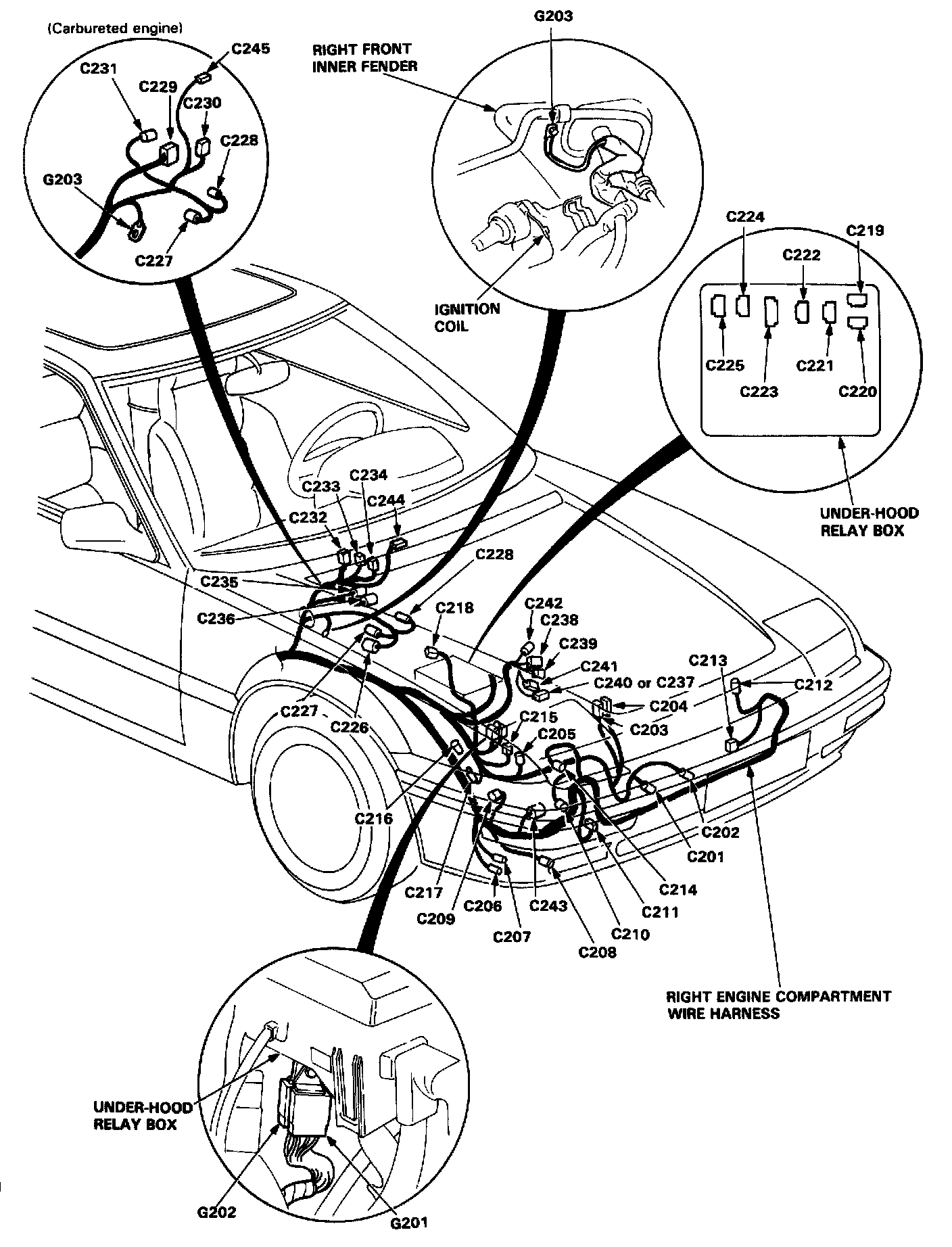

Engine Compartment Right Side
Engine Compartment Left Side
