Torque Specifications

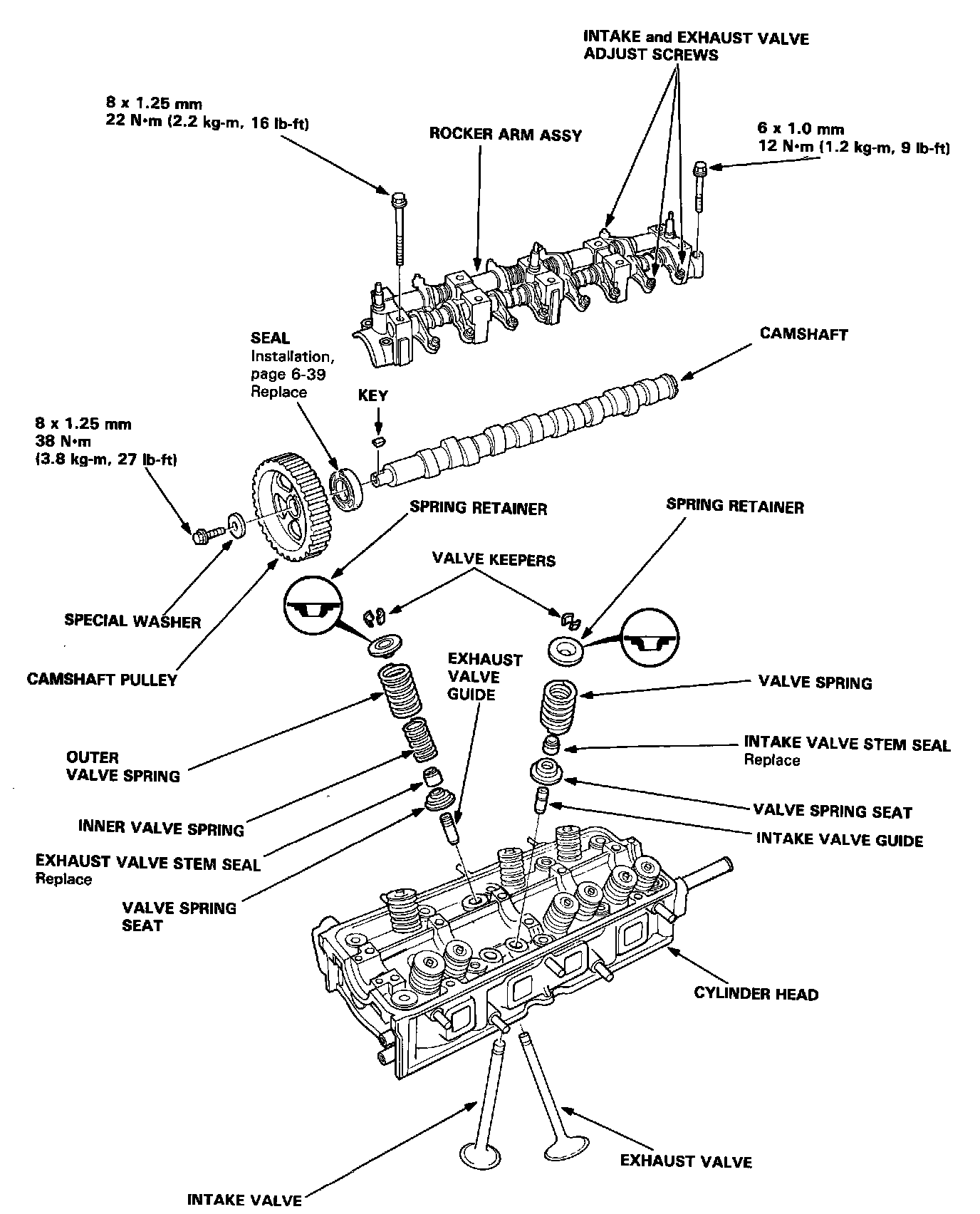

Cylinder Head, Camshaft, Rocker Arms and Manifolds

Rocker Arm Shaft Bolt Sequence:

Camshaft Pulley:

Exhaust Manifold:

Intake Manifold:

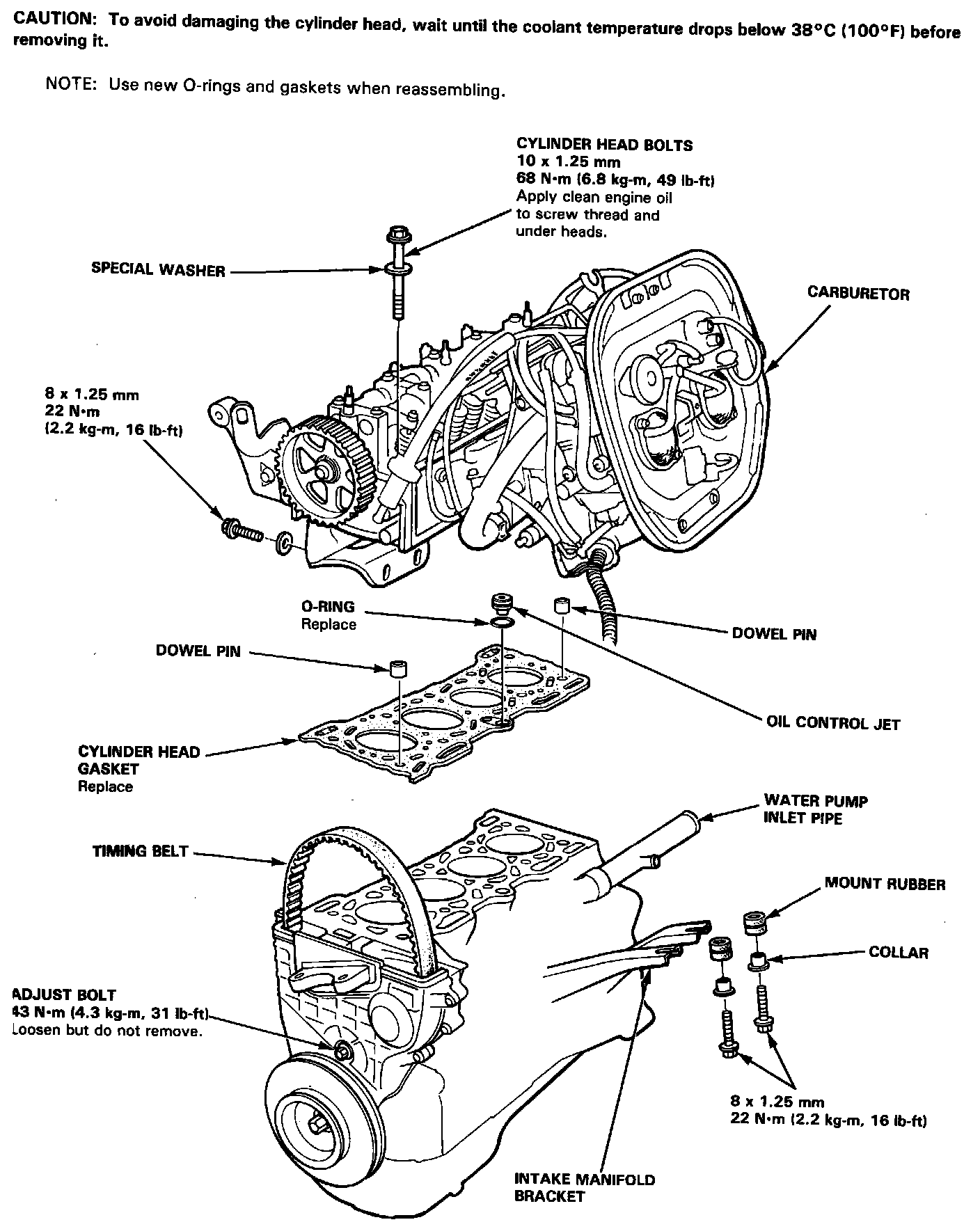

Cylinder Head Bolt Torque Sequence:

Torque cylinder head bolts in 2 steps, following sequence shown in figure. First torque bolts to 22 ft. lbs., then torque bolts to 49 ft. lbs.

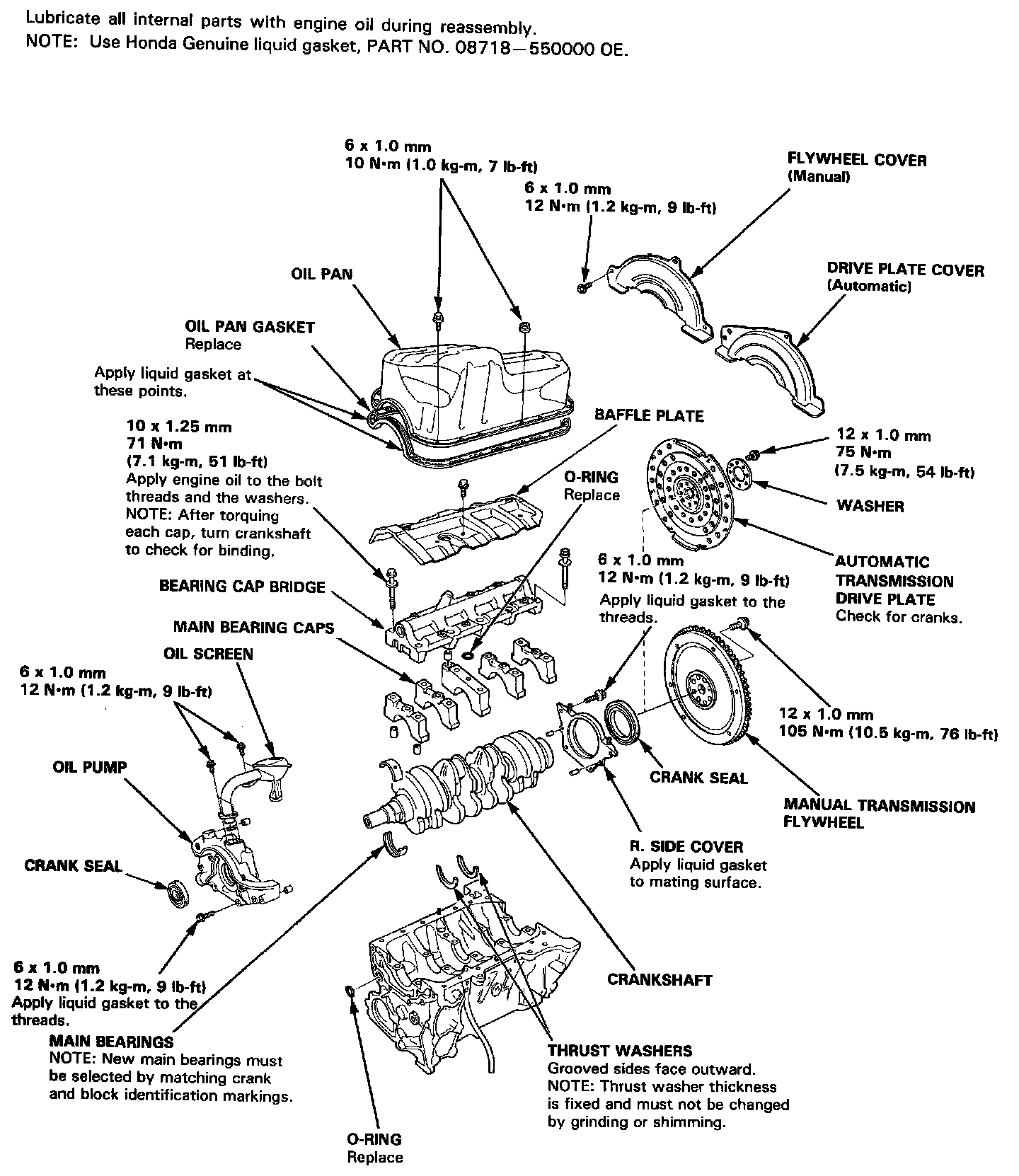

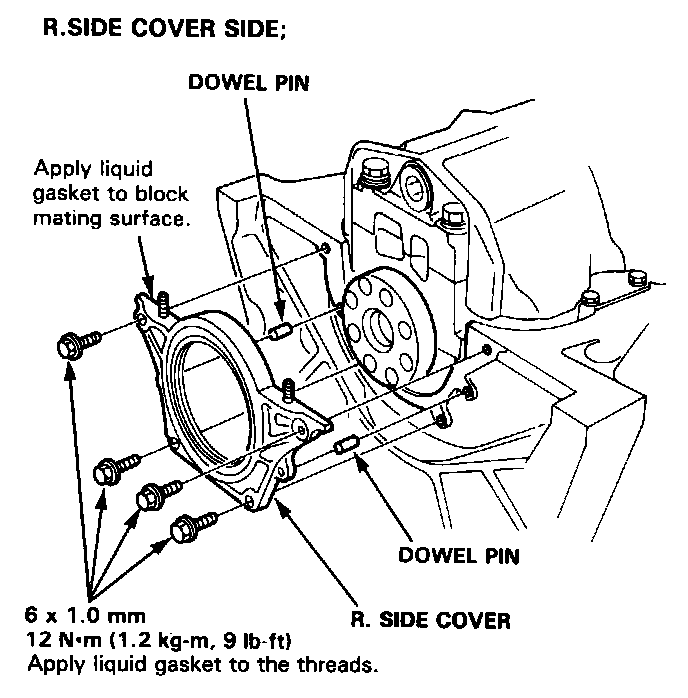

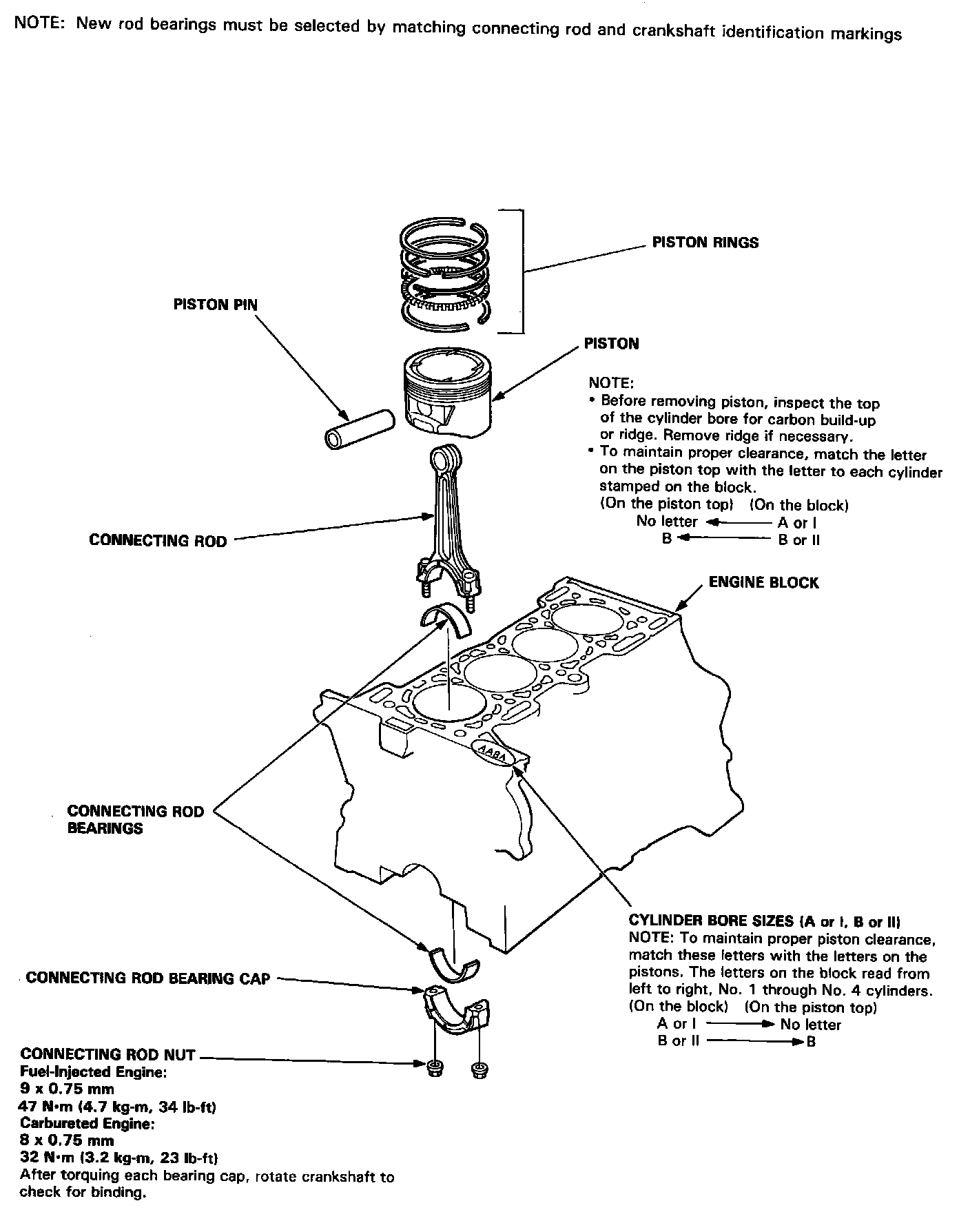

Cylinder Block

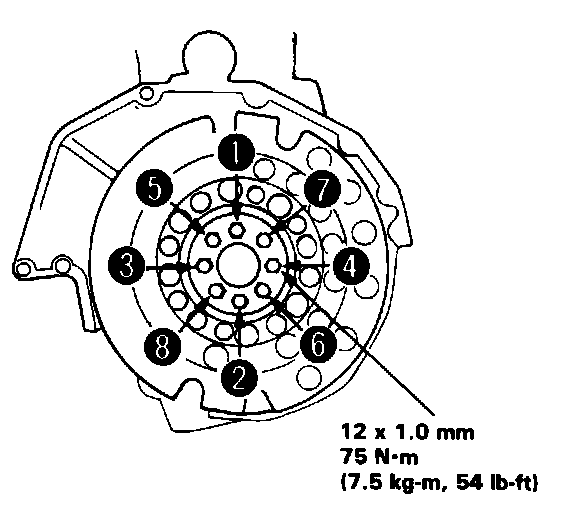

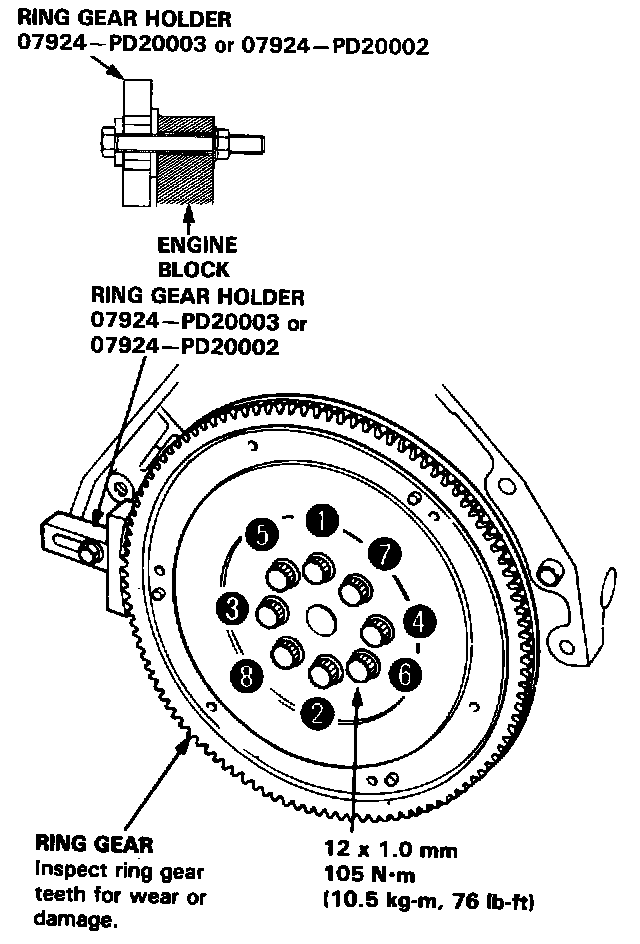

Flywheel/Flexplate Replacement

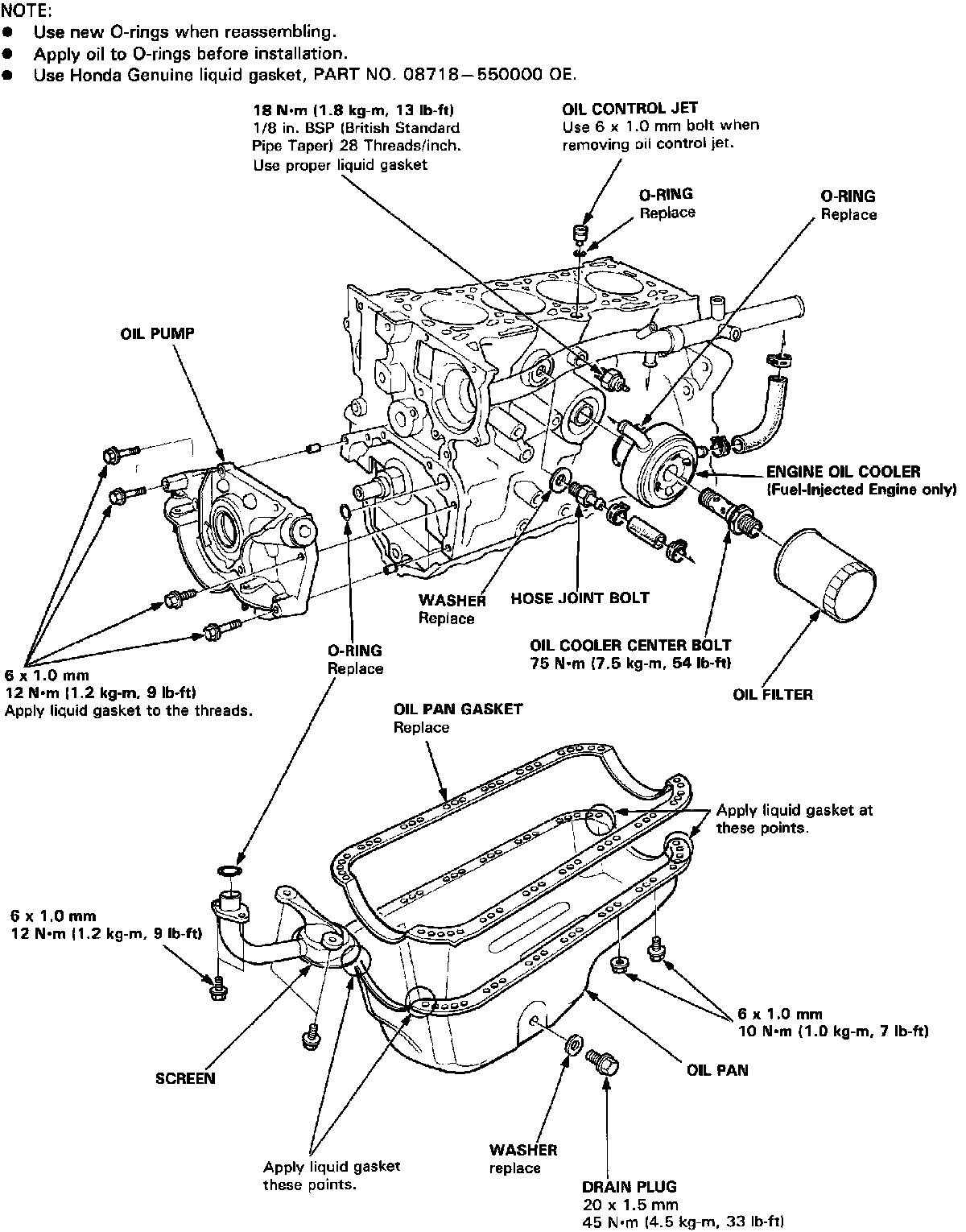

Lubrication
