Heater and Air Conditioning
>>
Heating and Ventilation System
Heating and Ventilation System

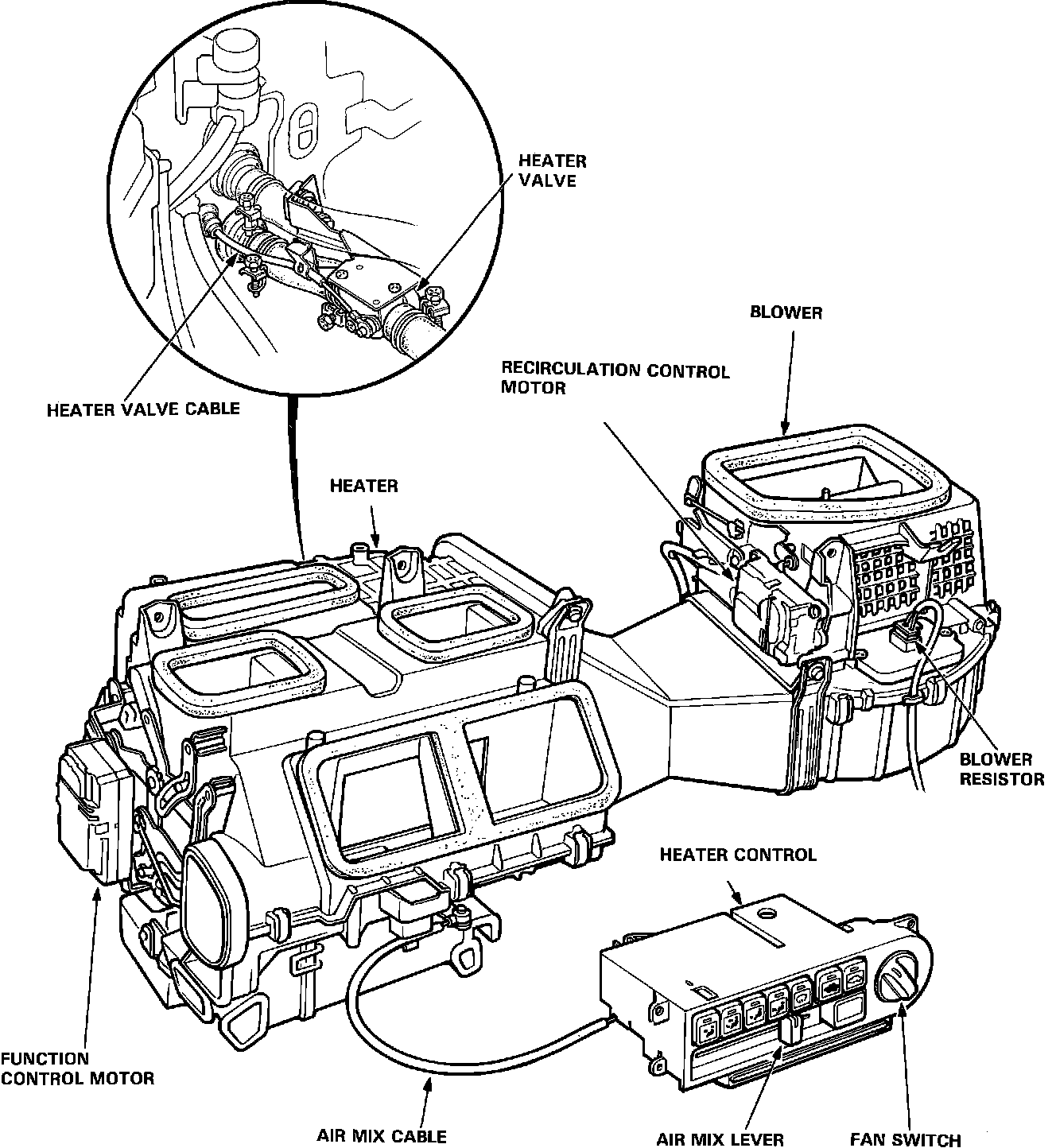

Fig. 1 System description, heater.:
