Instrument Cluster / Carrier: Service and Repair

REMOVAL

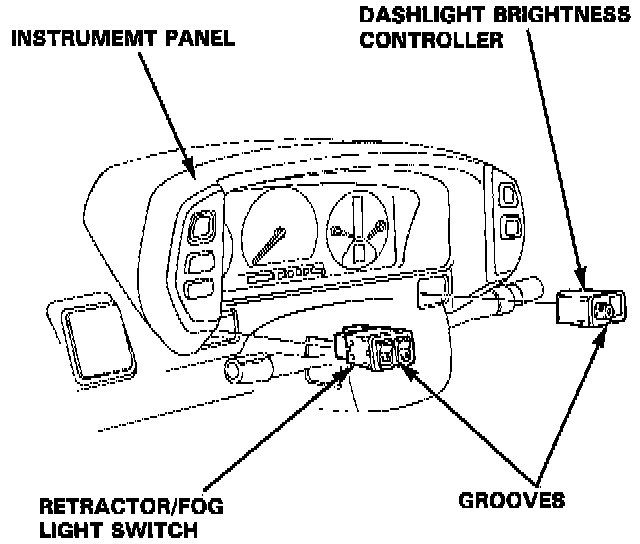

1. Remove the dashlight brightness controller and retractor/fog light switch from the instrument panel.

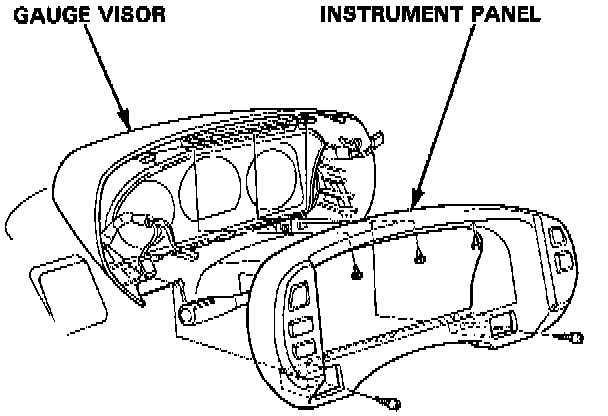

2. Remove the 5 screws, then remove the instrument panel from the gauge visor.
3. Remove the cap and 6 screws, then remove the gauge visor from the dashboard.




4. Remove the dashboard lower panel, then disconnect the speedometer cable from the gauge assembly.

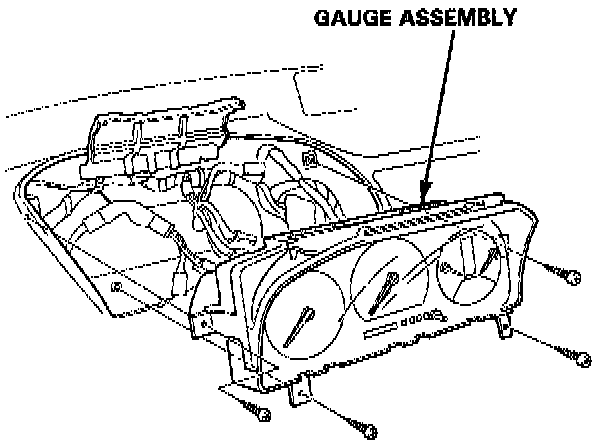

5. Remove the 4 screws, then pull out the gauge assembly from the dashboard.

NOTE: Be carefully not to pinch the wires when installing the gauge assembly.

To install, reverse order of removal.
