Engine Compartment Reference Diagram

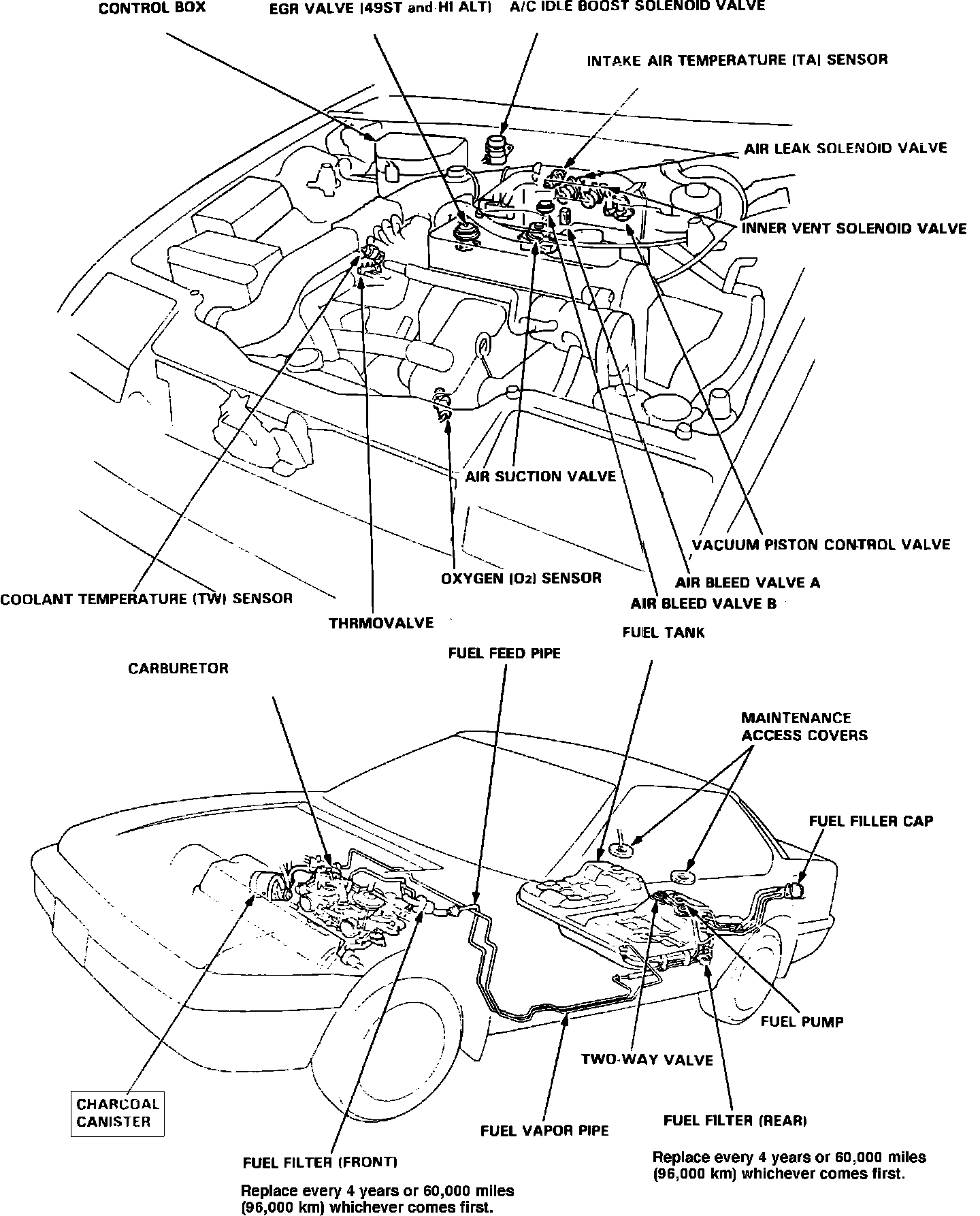

Fig. 70 Engine Compartment Reference Diagram.:



Fig. 72 Engine Compartment Reference Diagram.:



Fig. 69 Engine Compartment Reference Diagram.:



Fig. 69 Engine Compartment Reference Diagram.:
