Home >> Honda >> 1988 >> Prelude L4-1958cc SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations >> Control Box Component Locations (49 States)

Control Box Component Locations (49 States)

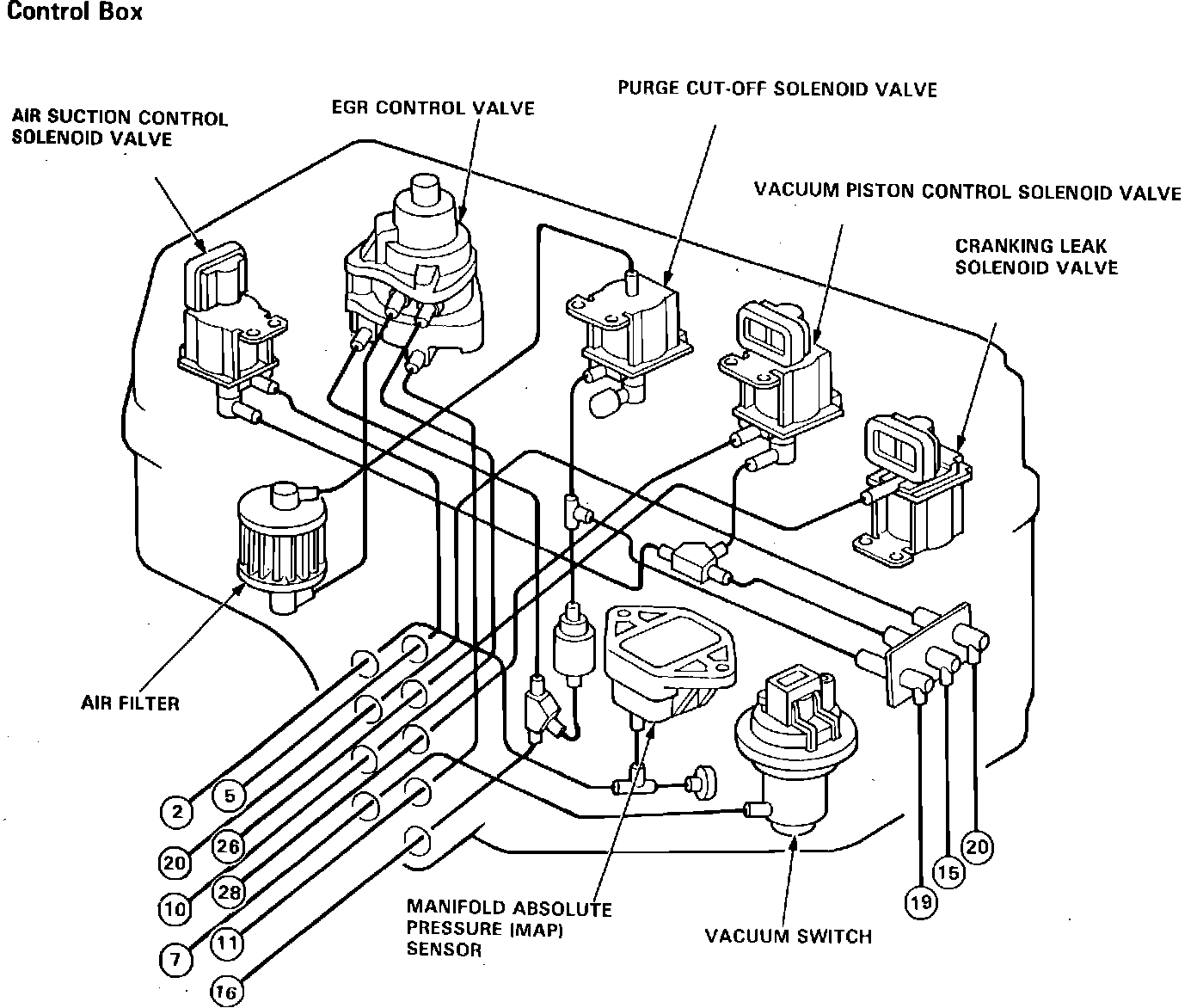

Fig. 280 Control Box 49 States:
