Air Intake System

Fig. 8 Air Intake System:

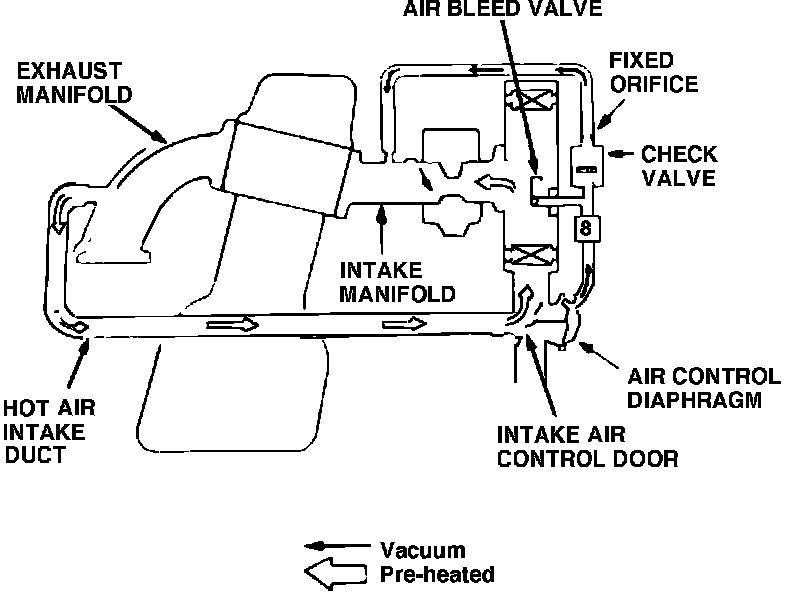

Fig. 9 Air Intake System Operation:

The air intake system, Fig. 8, supplies filtered, temperature controlled air to the carburetor. It consists of the air cleaner, air intake pipe, carburetor, intake manifold and the intake air control system. System operates as shown, Fig. 9.
