Home >> Honda >> 1989 >> Accord L4-1955cc 2.0L SOHC 2-bbl >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> Part 1 of 3

Part 1 of 3

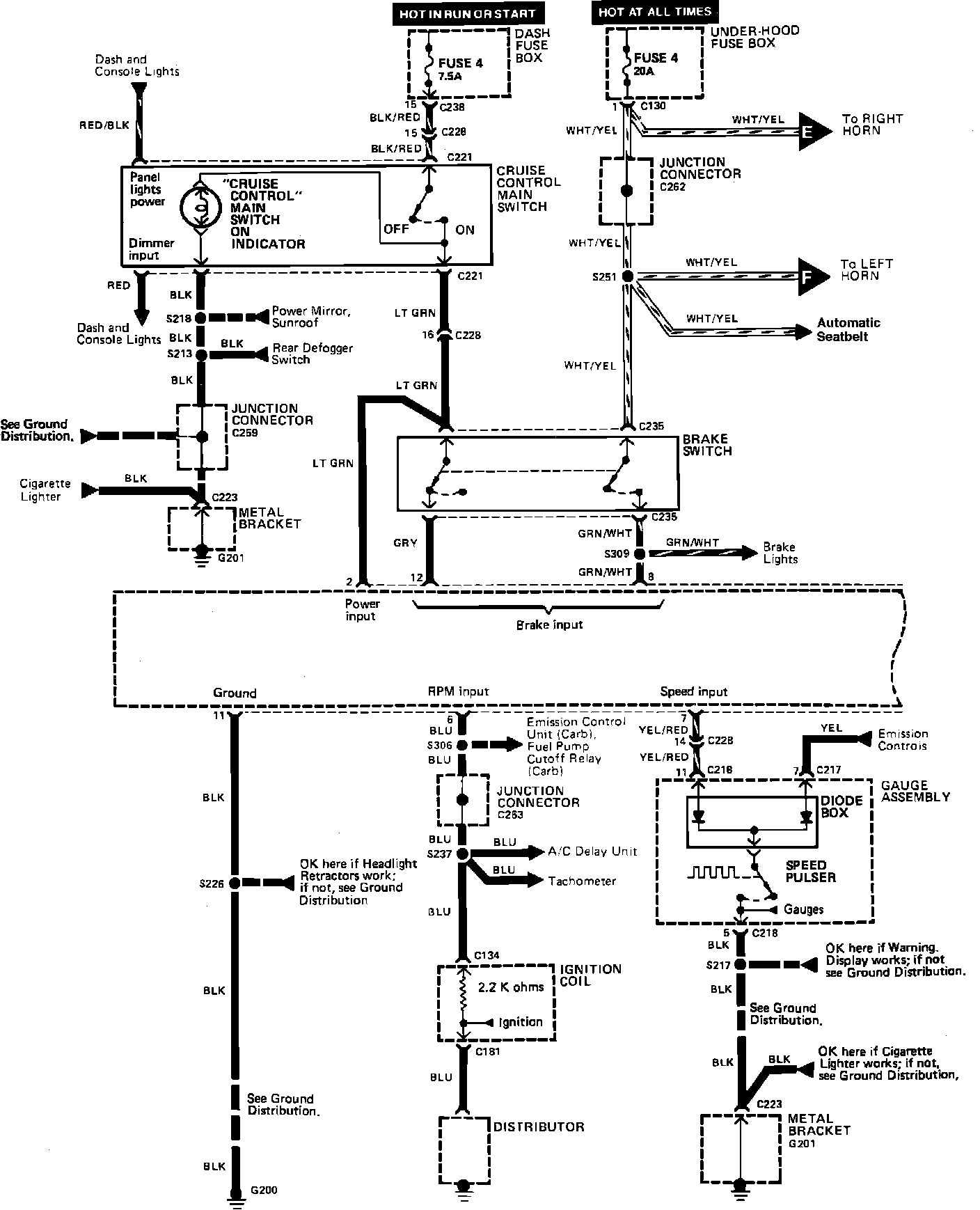

Cruise Control. Wiring Circuit:
