Home >> Honda >> 1989 >> Accord L4-1955cc 2.0L SOHC 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door/Trunk Ajar Indicator/Lamp >> Part 1 of 2

Part 1 of 2

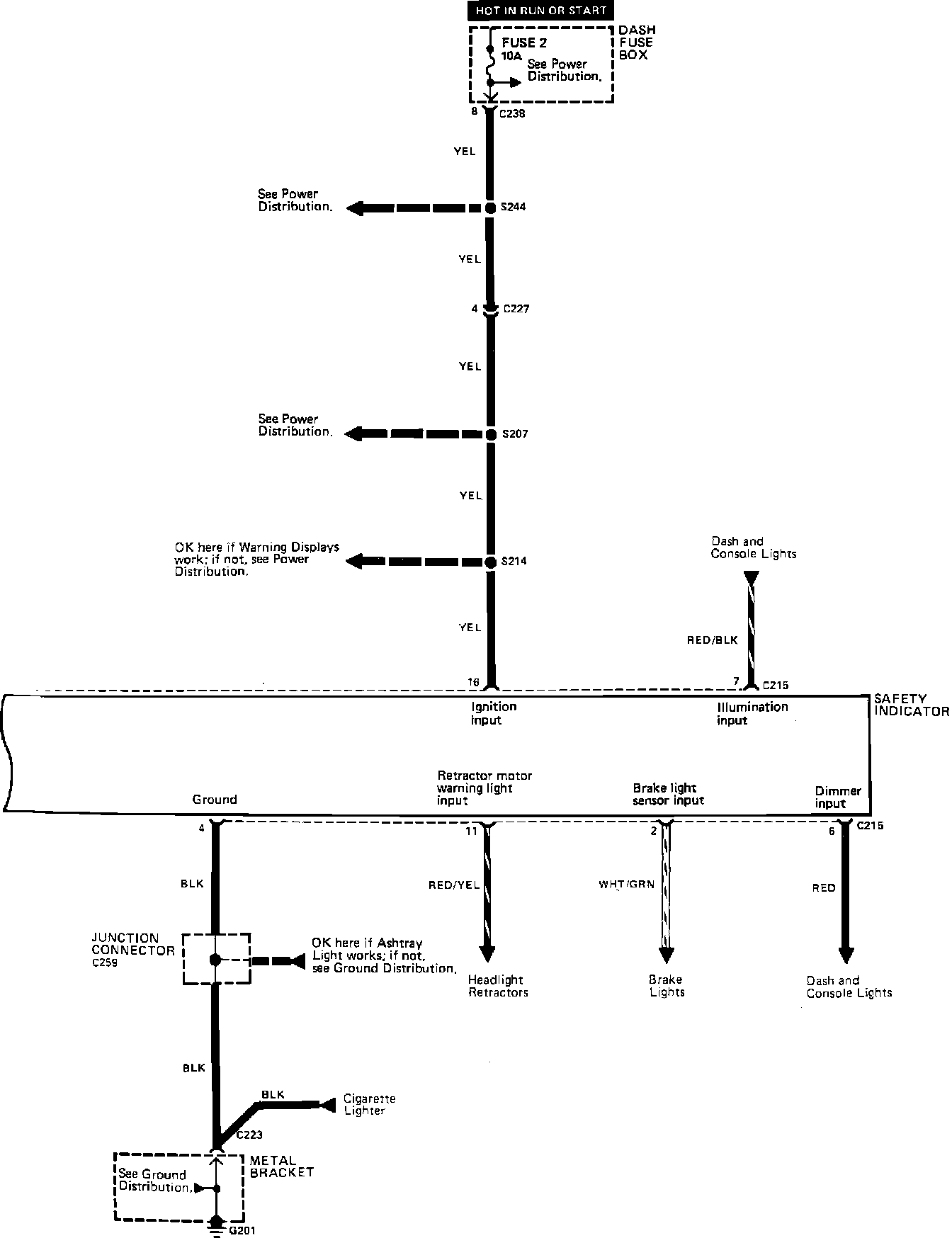

Safety Indicator, Interior & Trunk/Hatch Lamps - Part 1 Of 2:



Safety Indicator, Interior & Trunk/Hatch Lamps - Part 2 Of 2:
