Headlamp Motor

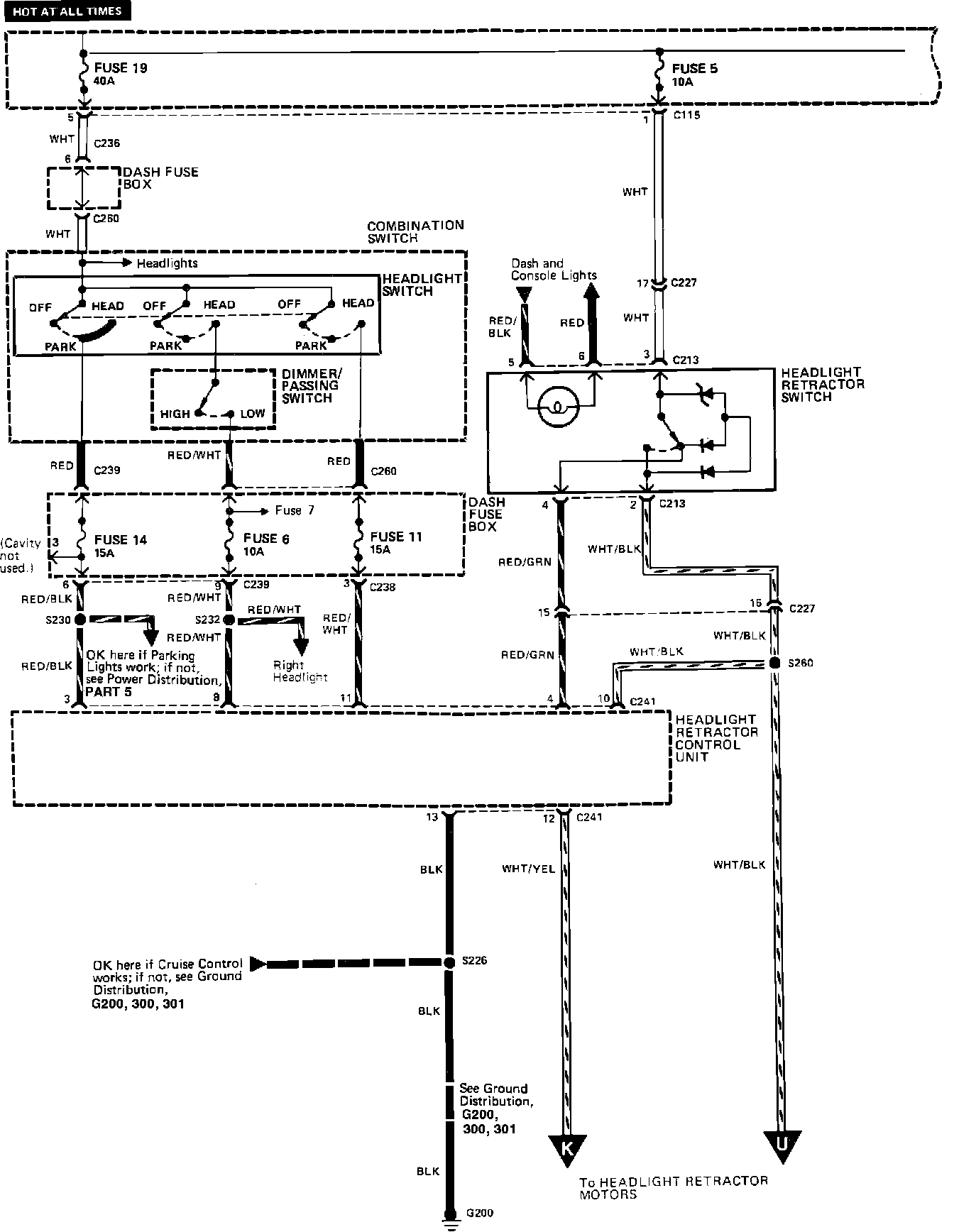

Headlamp Retractor, Controls. Wiring Circuit:

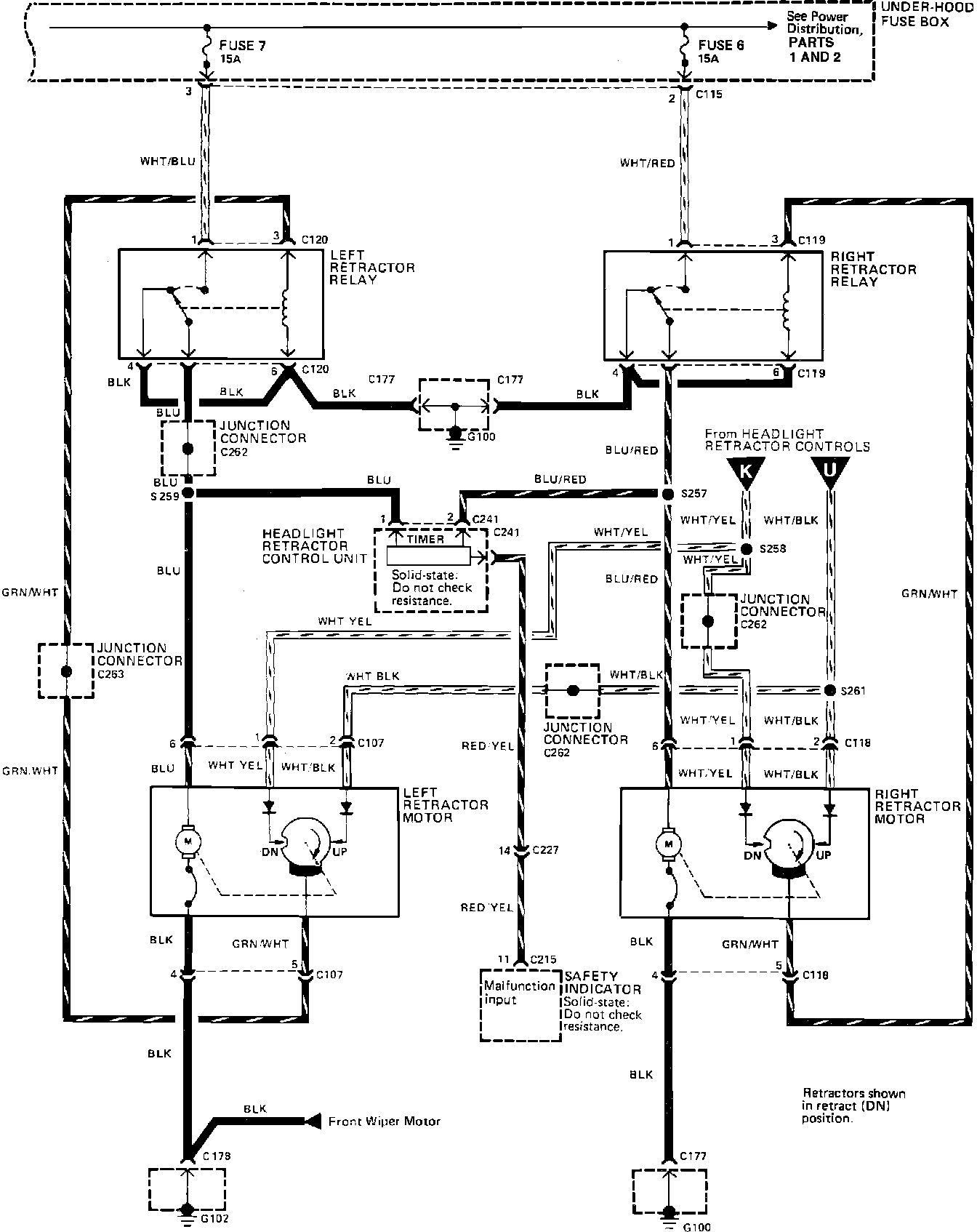

Headlamp Retractor, Motor. Wiring Circuit:
