Operation CHARM: Car repair manuals for everyone.
Home >> Honda >> 1989 >> Accord L4-1955cc 2.0L SOHC 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Standard Model

Standard Model

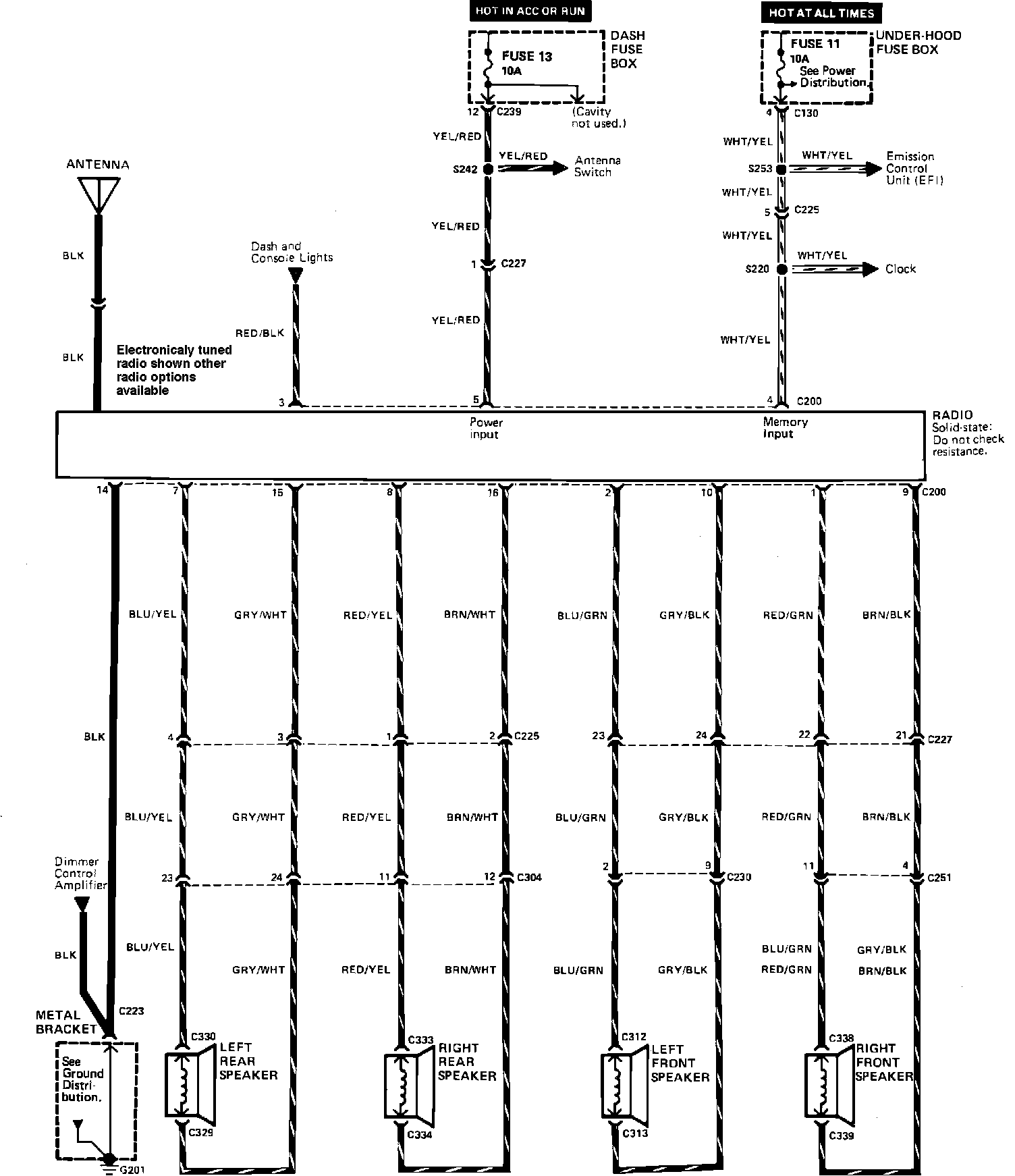

Radio. Wiring Circuit:
