Trailer Lighting Module
Trailer Lighting Module

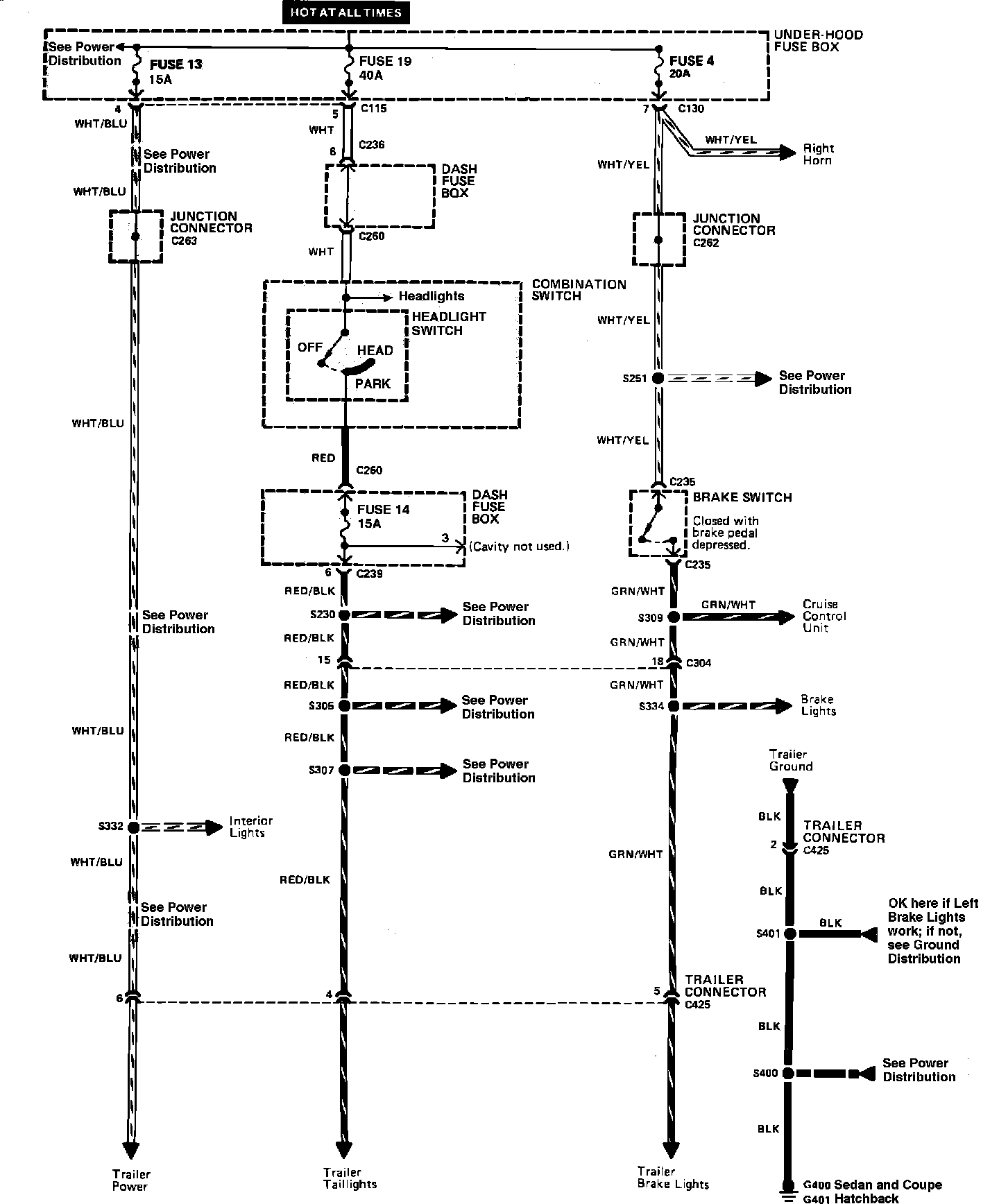

Trailer Adapter. Wiring Circuit:
Trailer Adapter. Wiring Circuit:
