Relay Box: Application and ID

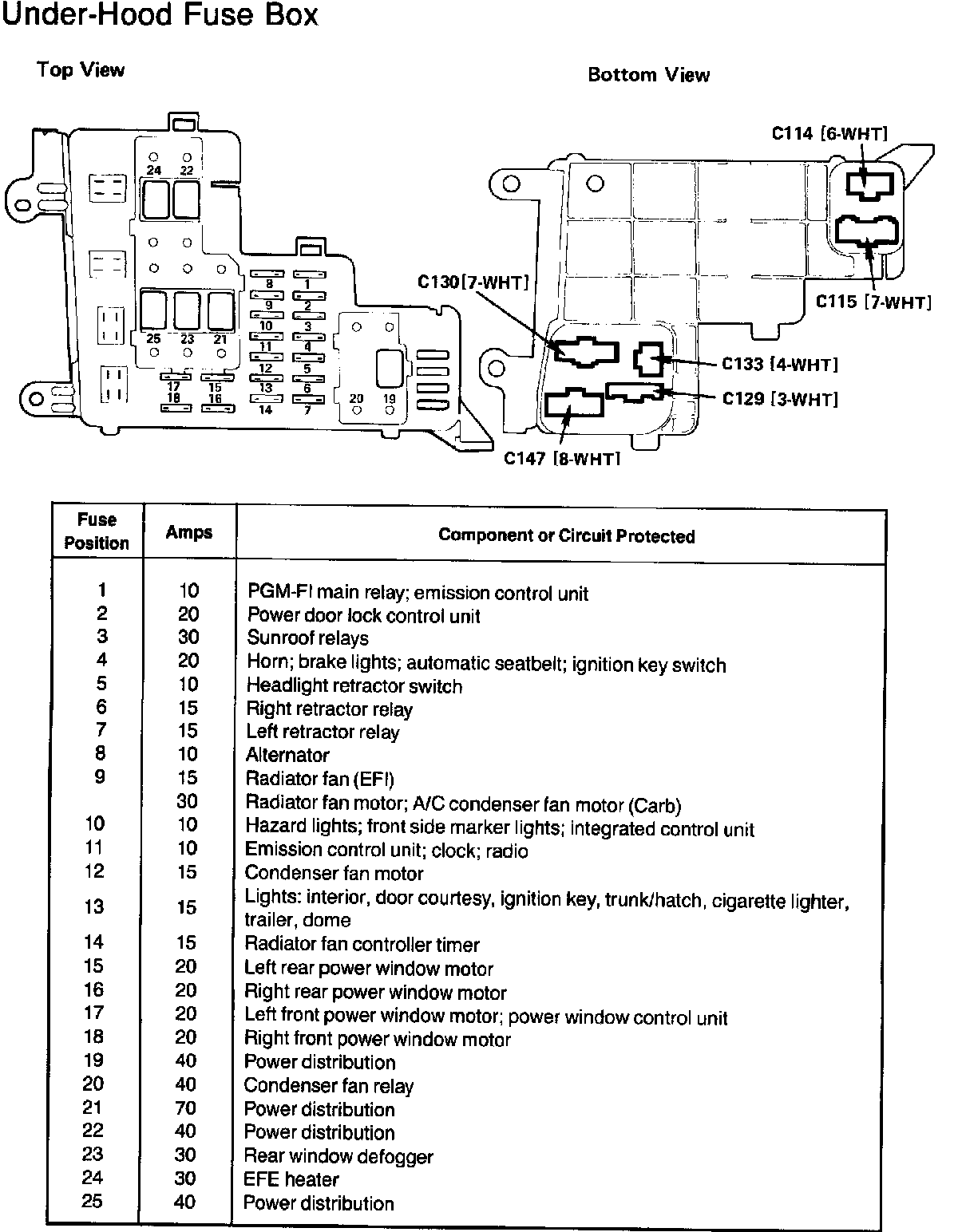

Underhood Fuse Box Details (Carb & EFI Models):

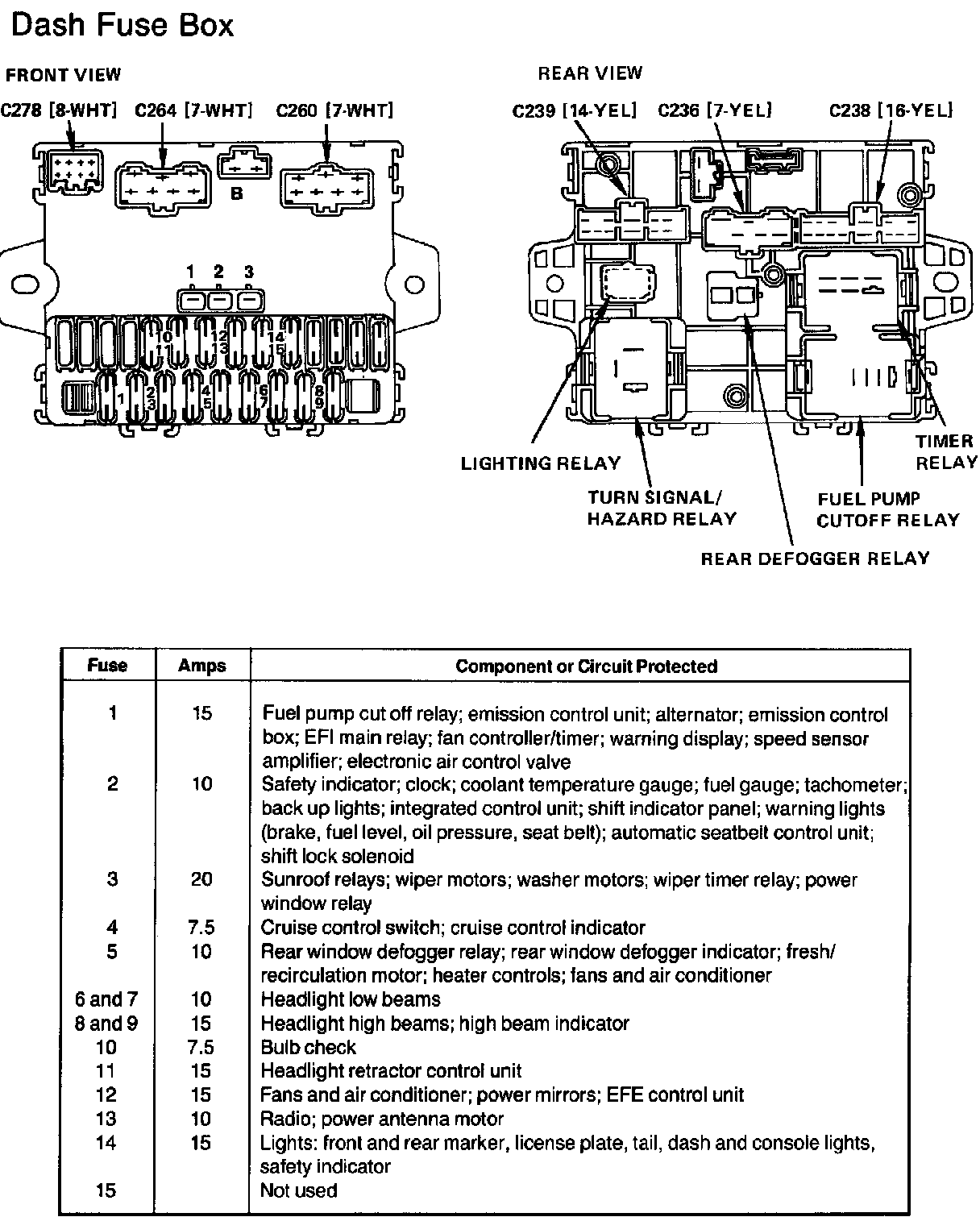

Dash Fuse Box Details (Carb & EFI Models):
