Early Fuel Evaporation ( EFE ): Description and Operation

Fig. 82 Early Fuel Evaporator and Heater:

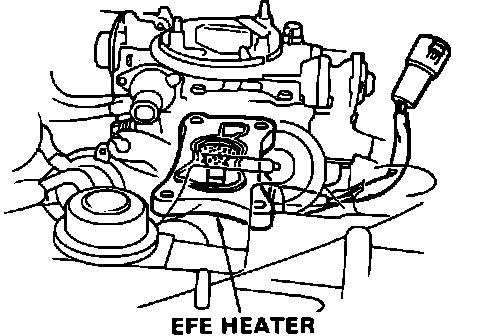

Fig. 94 EFE Heater Location:

To promote improved engine operation while the engine is warming up, the carburetor insulator includes a heater in the primary bore. The maximum temperature of the heater is regulated by the electrical resistance of the heating element.
