Early Fuel Evaporation ( EFE ): Testing and Inspection

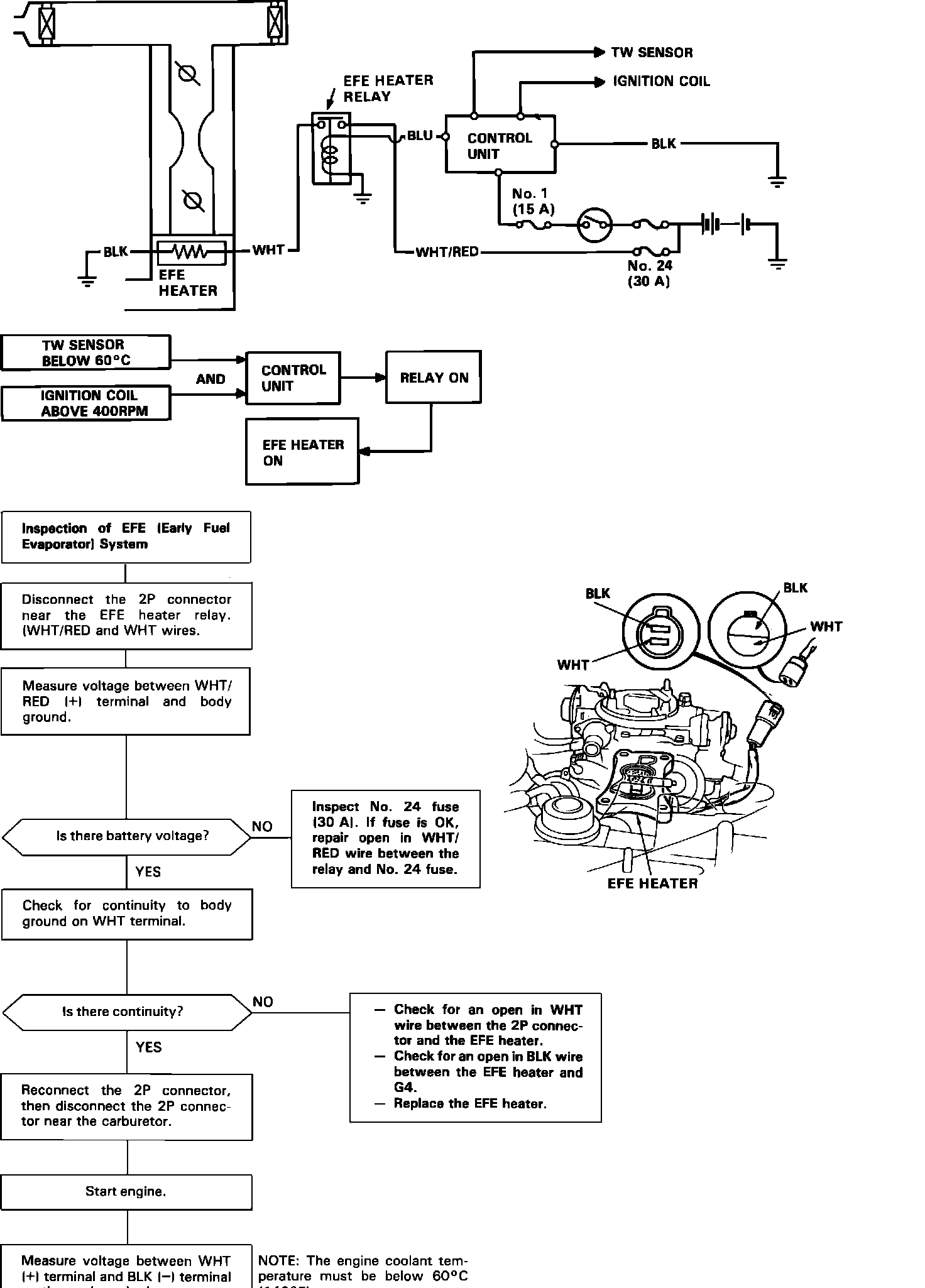

�آ+Fig. 88 Early Fuel Evaporator (EFE) System Testing Procedure:

CAUTION:

1. Be careful not to damage the EFE heater when servicing the carburetor.
2. Make sure there is no foreign matter on the EFE heater after installing.
3. Make sure that the O-ring and seal are properly installed.
4. Do not pull the harness while removing or installing the EFE heater.
5. When removing, make sure to disconnect the connector to the engine sub harness.
