Locations
>>
Body Mounted Air Intake Components
Body Mounted Air Intake Components

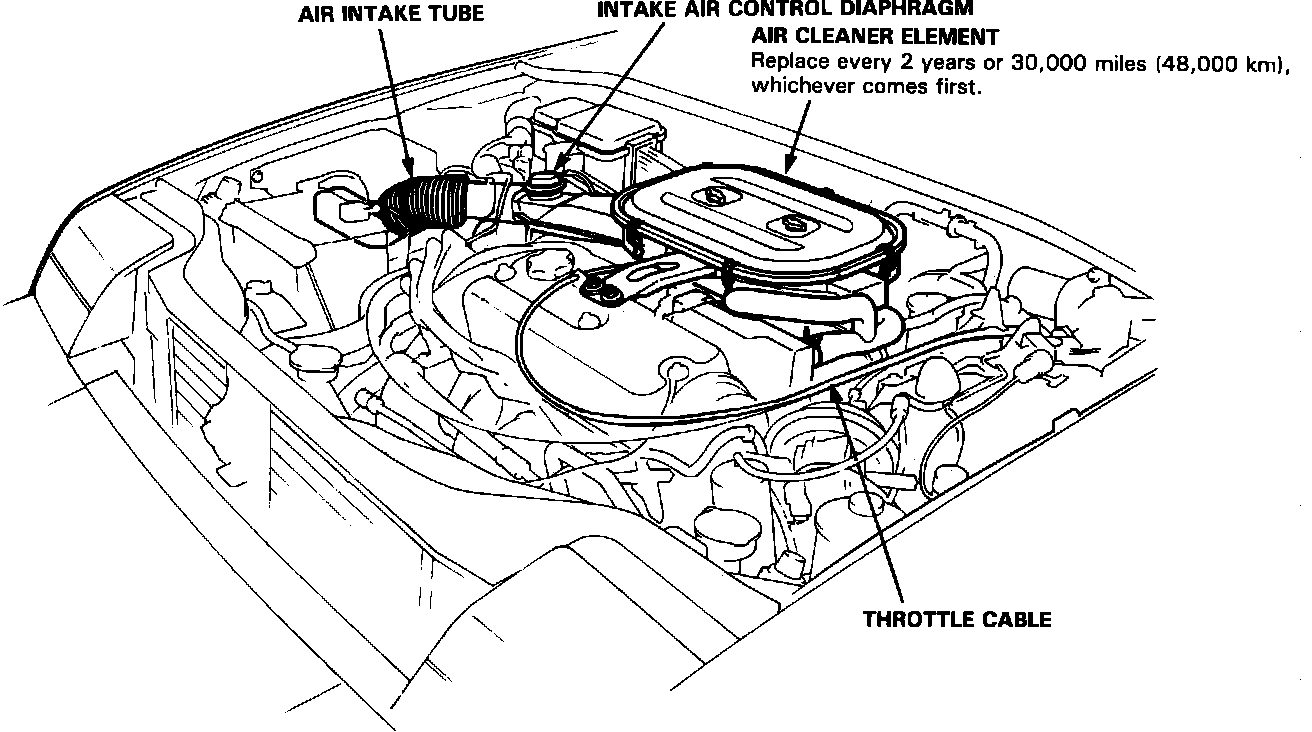

Fig. 5 Air Intake Component Locations:
