Home >> Honda >> 1989 >> Accord L4-1955cc 2.0L SOHC 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

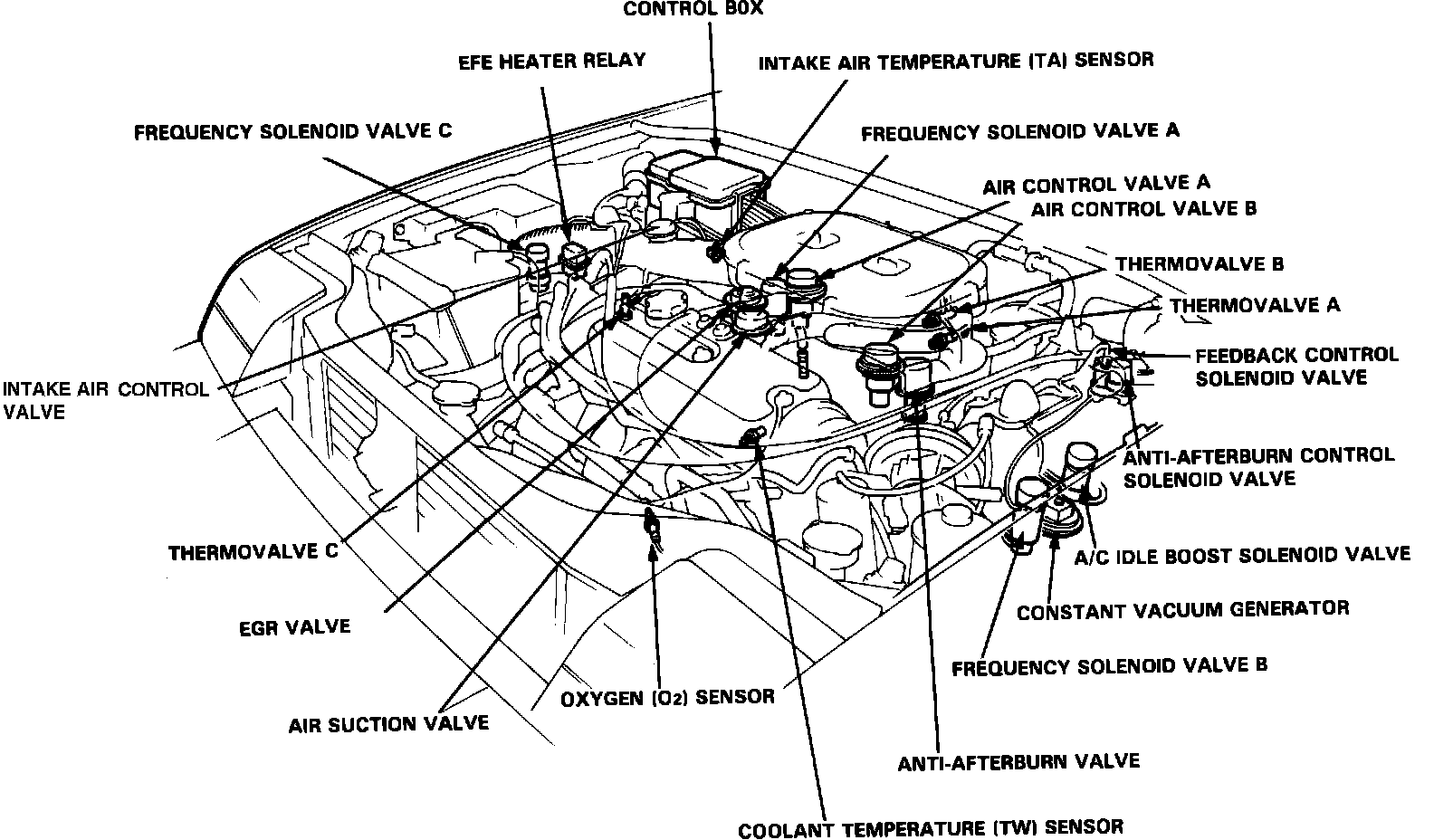

Fig. 2 Engine Compartment Components (Carbureted Engine):
