Home >> Honda >> 1989 >> Accord L4-1955cc 2.0L SOHC FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Shift Interlock, A/T

Shift Interlock, A/T

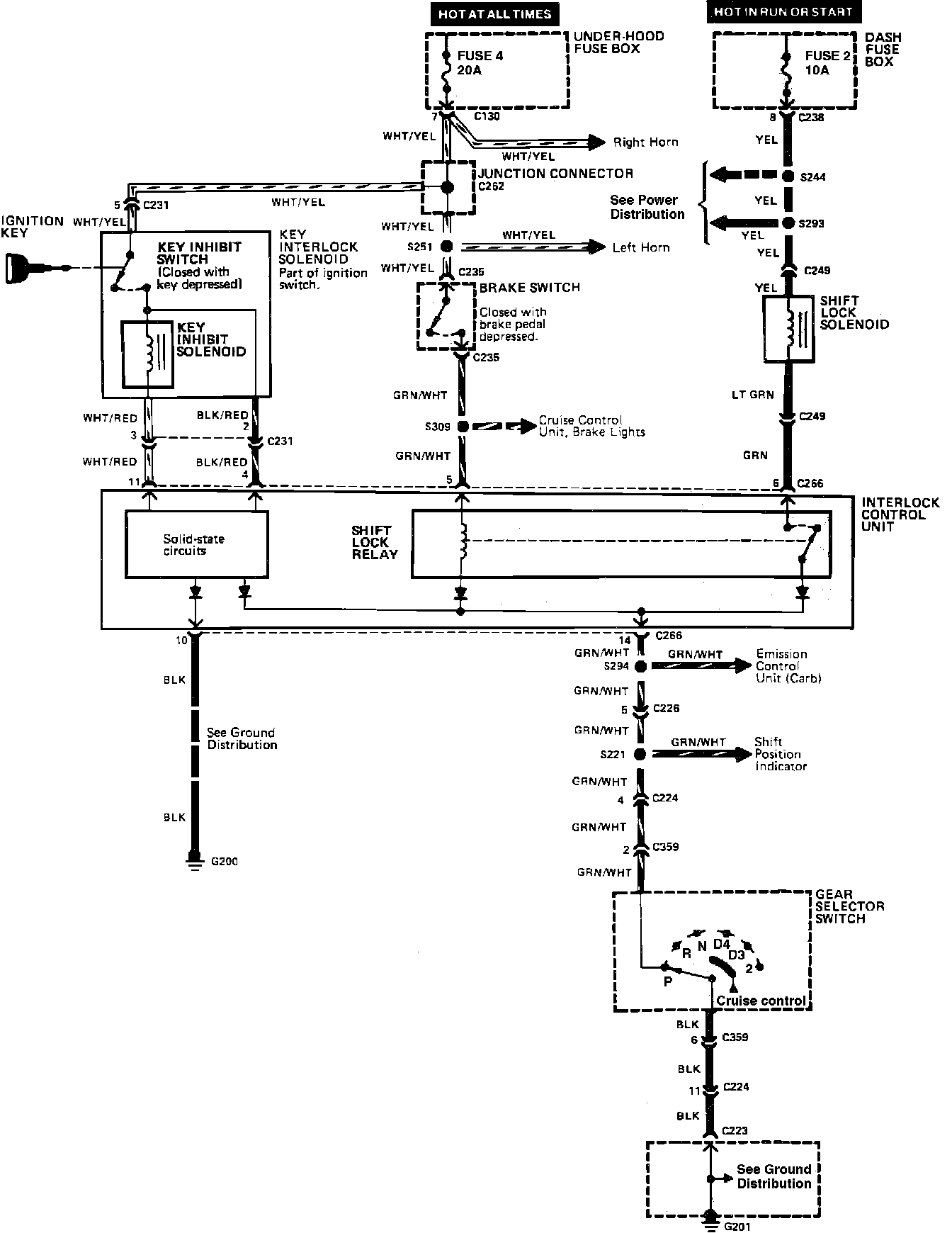

Automatic Transmission Interlock. Wiring Circuit:
