Control Module HVAC: Locations

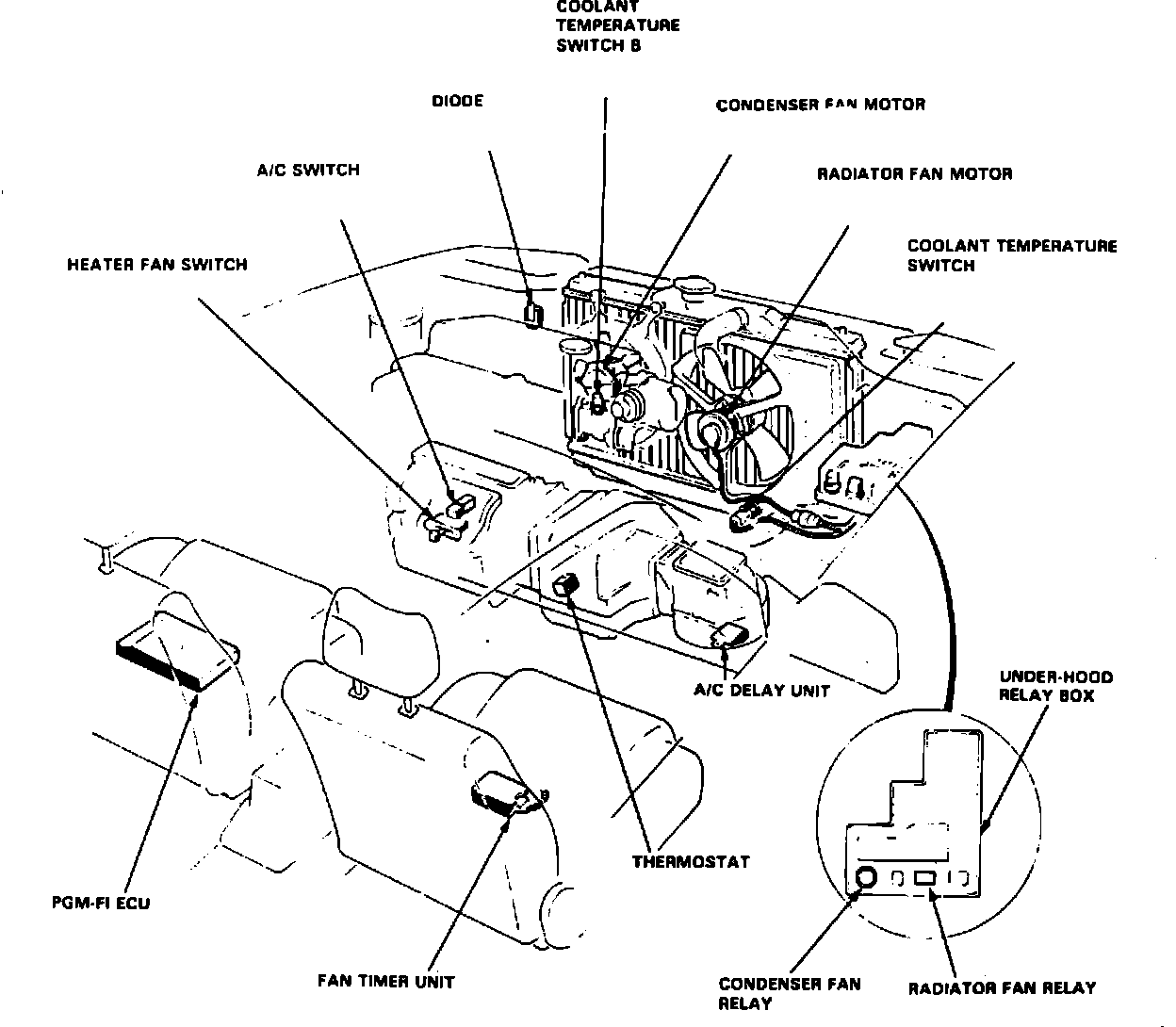

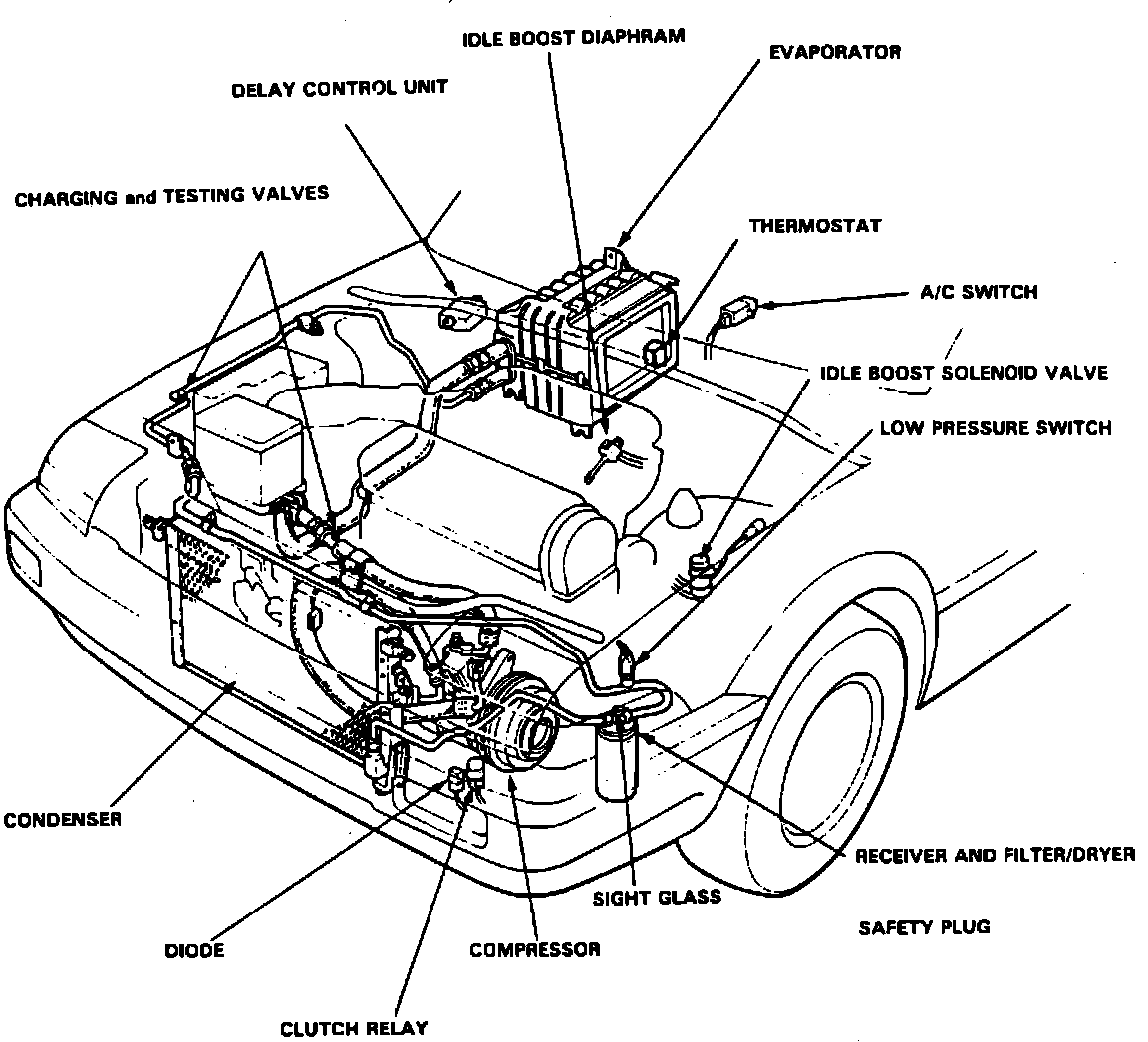

Air Conditioner System Components (Part 1 Of 2).:
Air Conditioner System Components (Part 1 Of 2).:
Under RH Side I/P
Applicable to: 1989 Models
