Accord L4-1955cc 2.0L SOHC FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Locations
>>
Fuel System Components
Fuel System Components

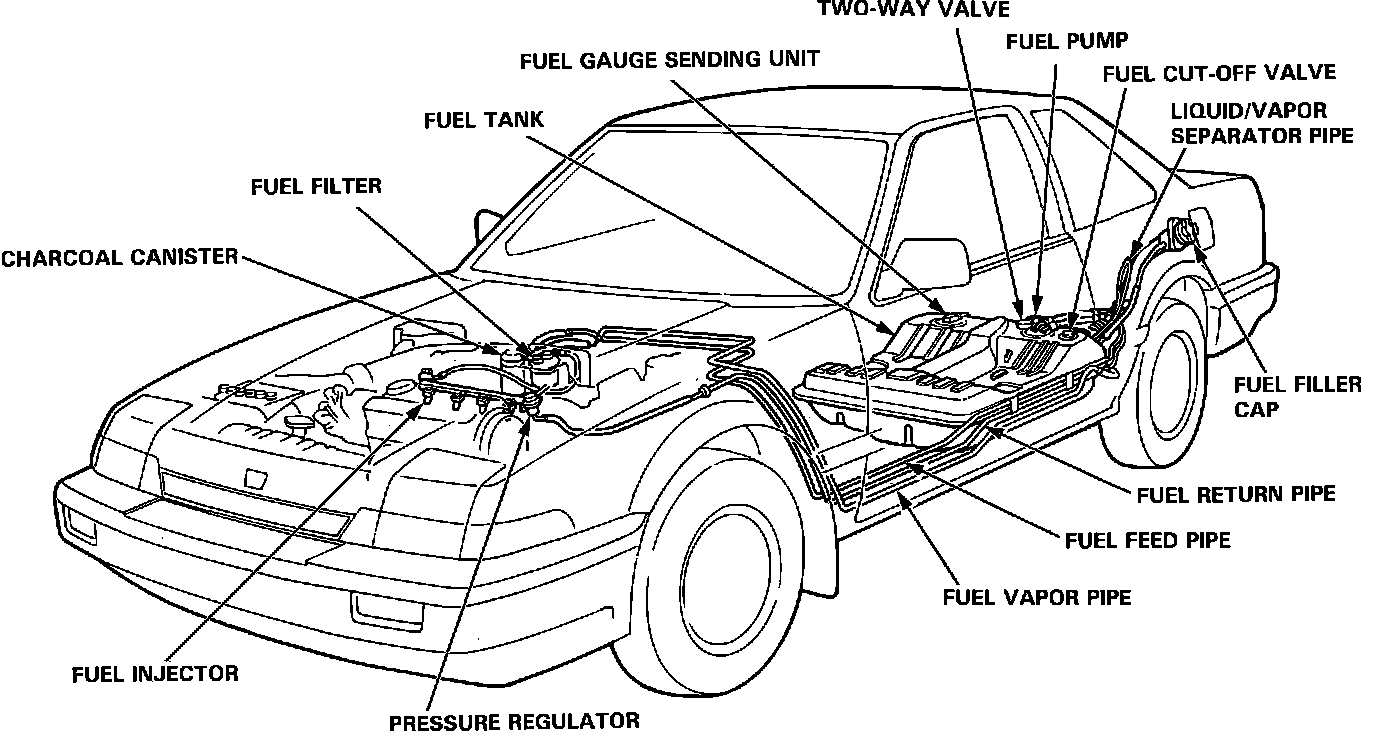

Fig. 102 Fuel And Vapor Hose Routing (PGM-FI Engine):
