Variable Induction System: Description and Operation

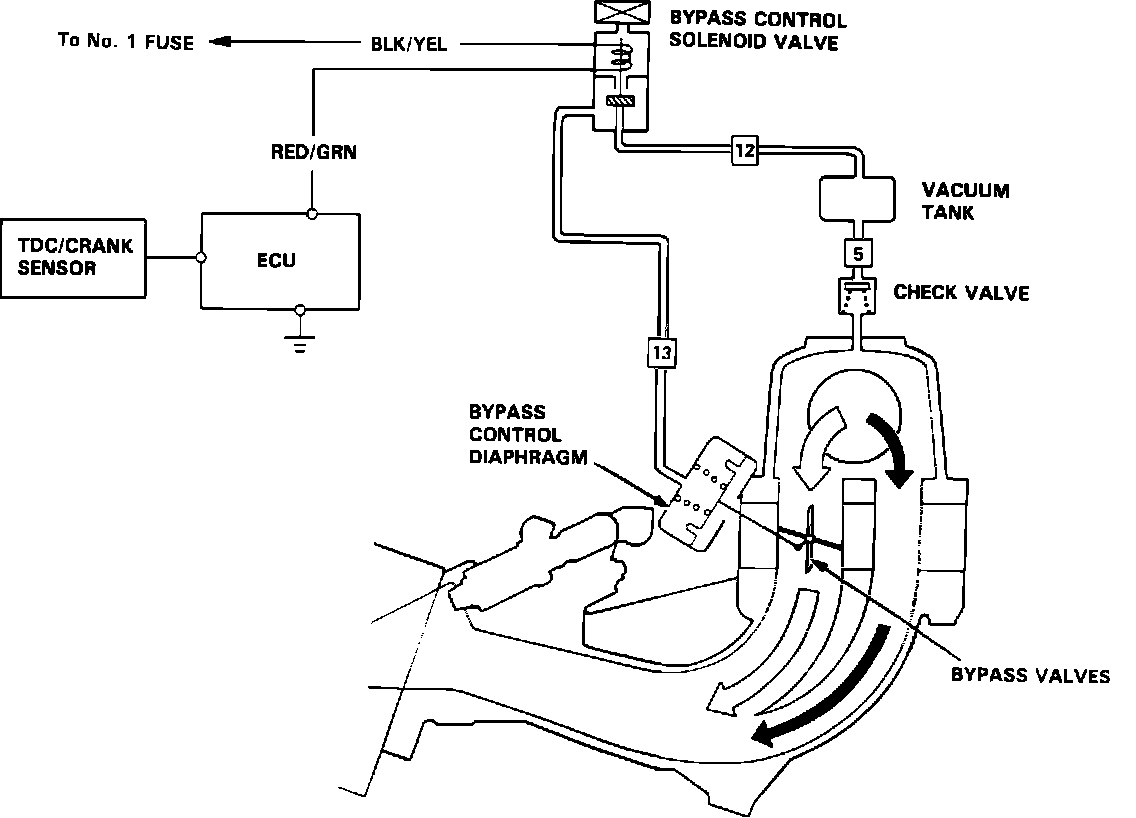

Fig. 65 Bypass Control System:

Two air intake paths are provided in the intake manifold to allow the selection of the intake path most favorable for a given engine speed.
Satisfactory power performance is achieved by closing and opening the bypass valves. High torque at low rpm is achieved when the valves are closed, however, high power at high rpm is achieved by opening the bypass valves.
