Home >> Honda >> 1989 >> CRX DX L4-1493cc 1.5L SOHC (D15B2) TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Computers and Control Systems >> Engine Control Module

Engine Control Module

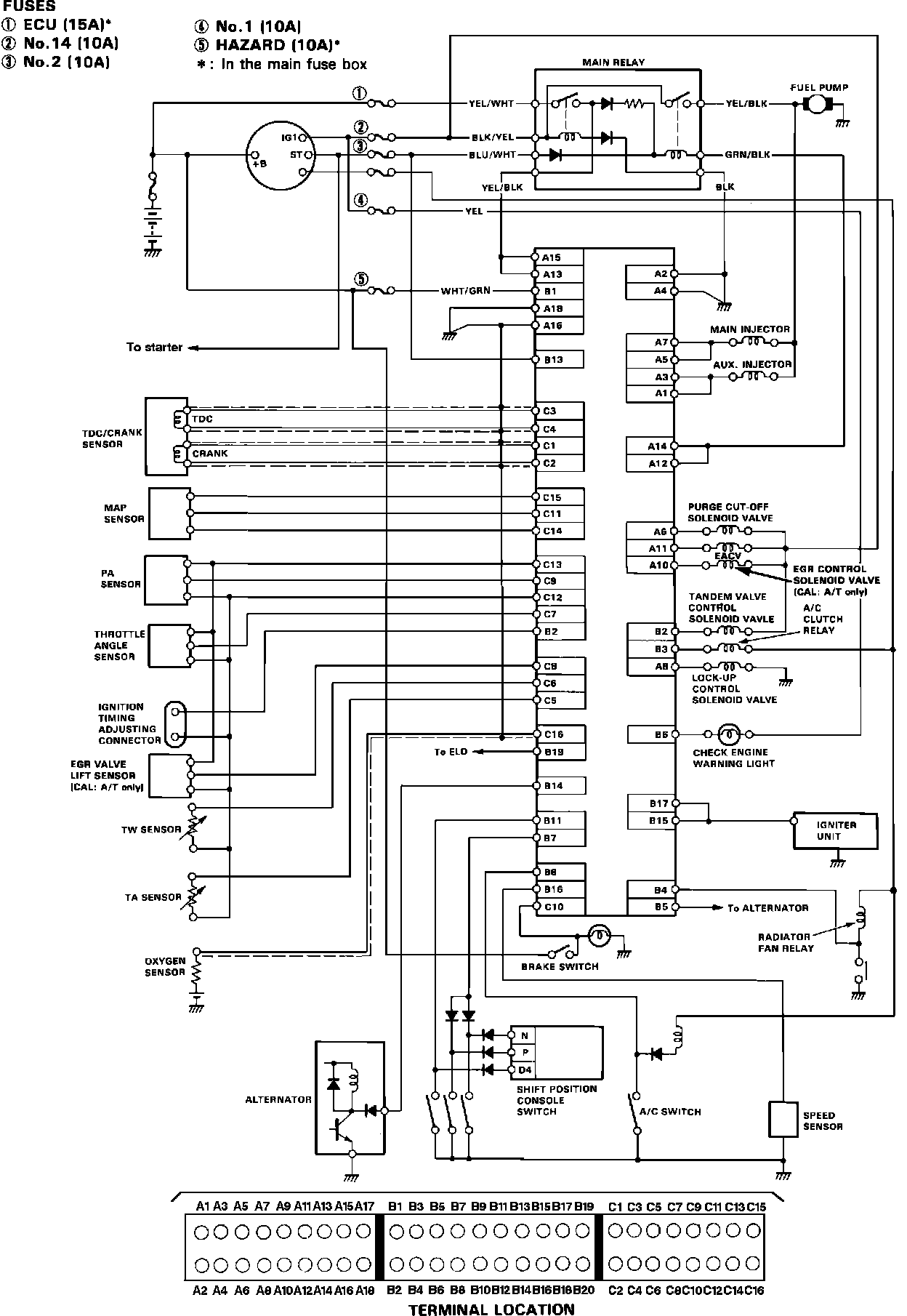

Fig. 26 Electronic Control Unit ECU And Terminal Location:
