Headlamp Switch

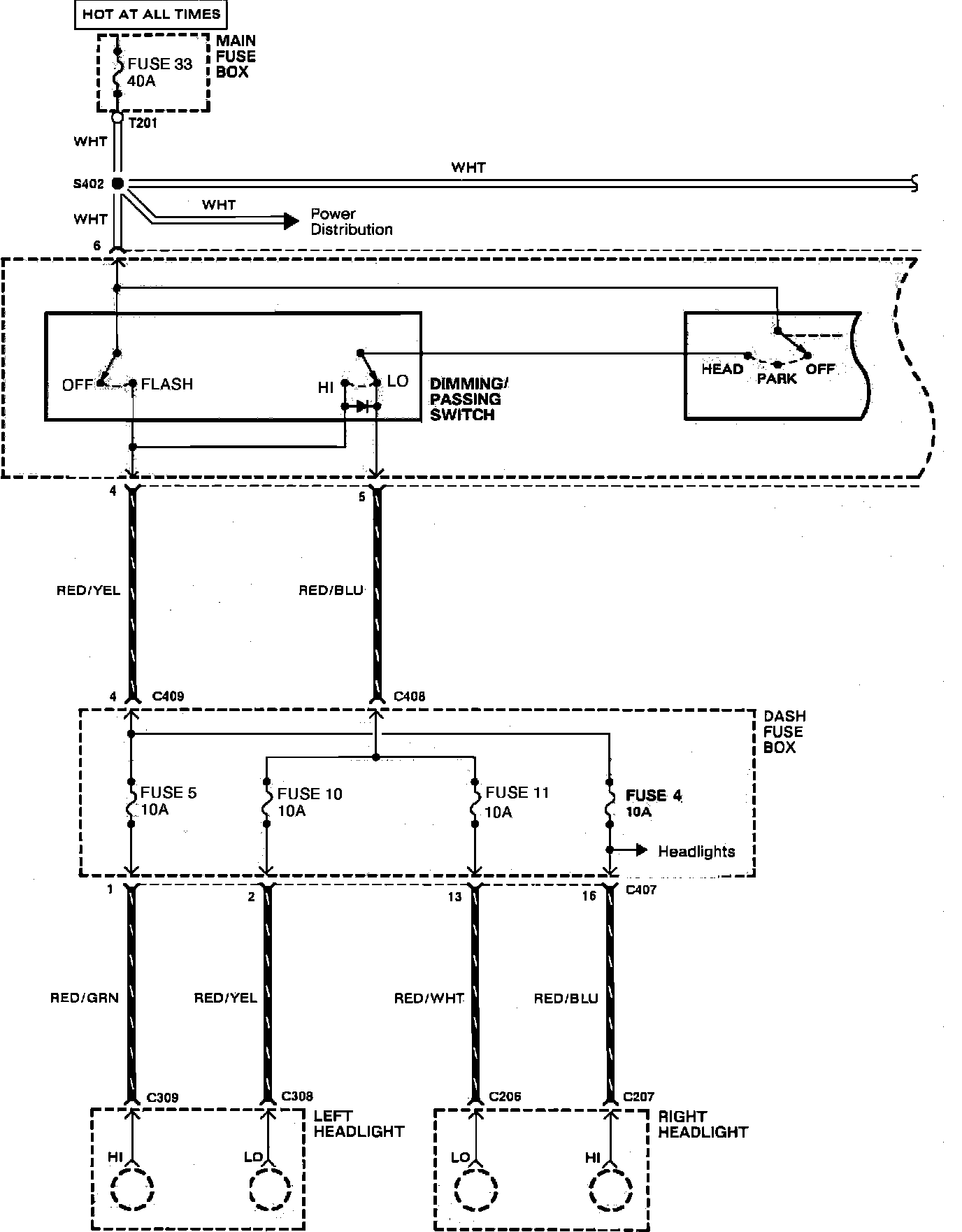

Headlamp Switch. Wiring Circuit:

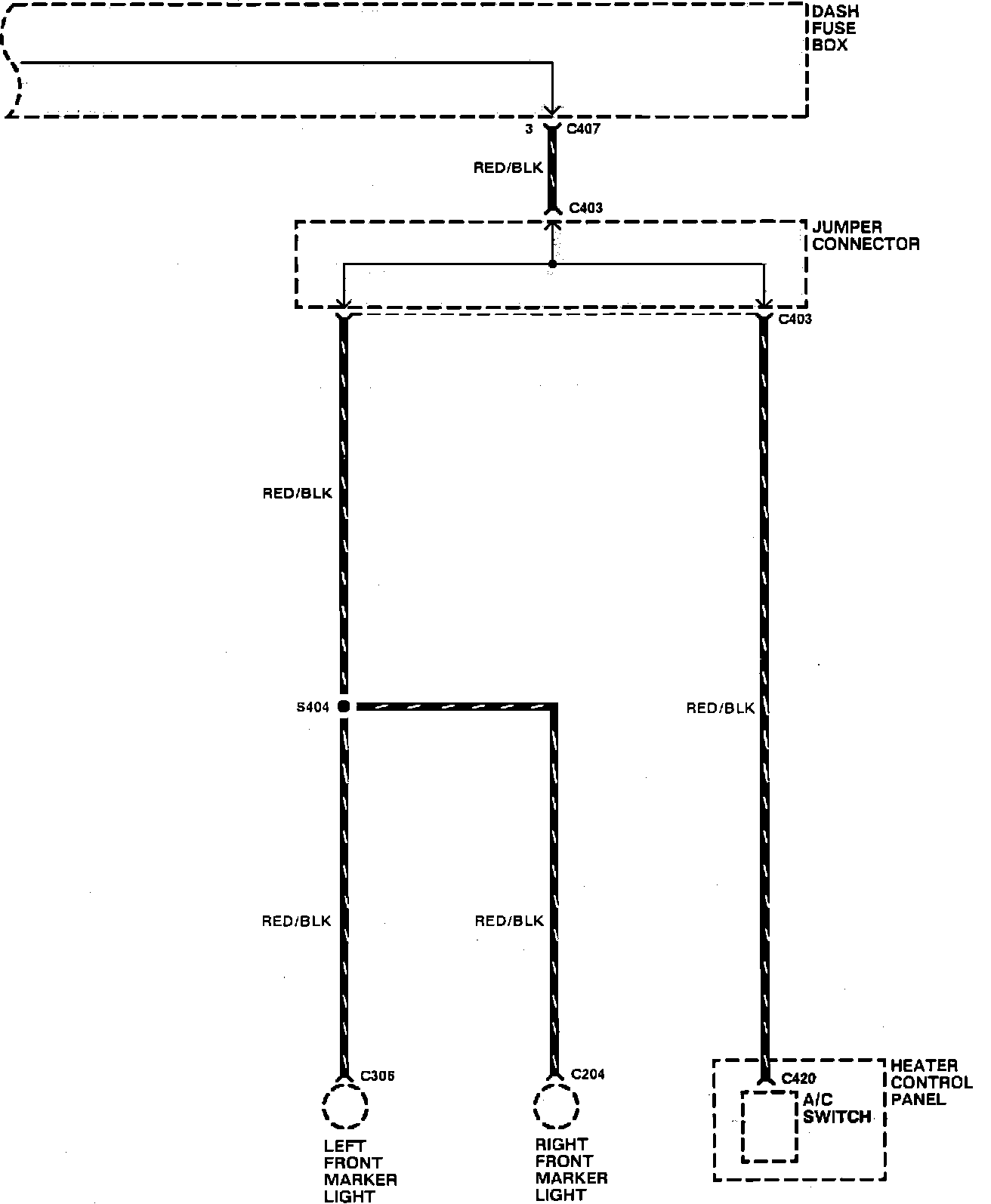

Headlamp Switch. Wiring Circuit:

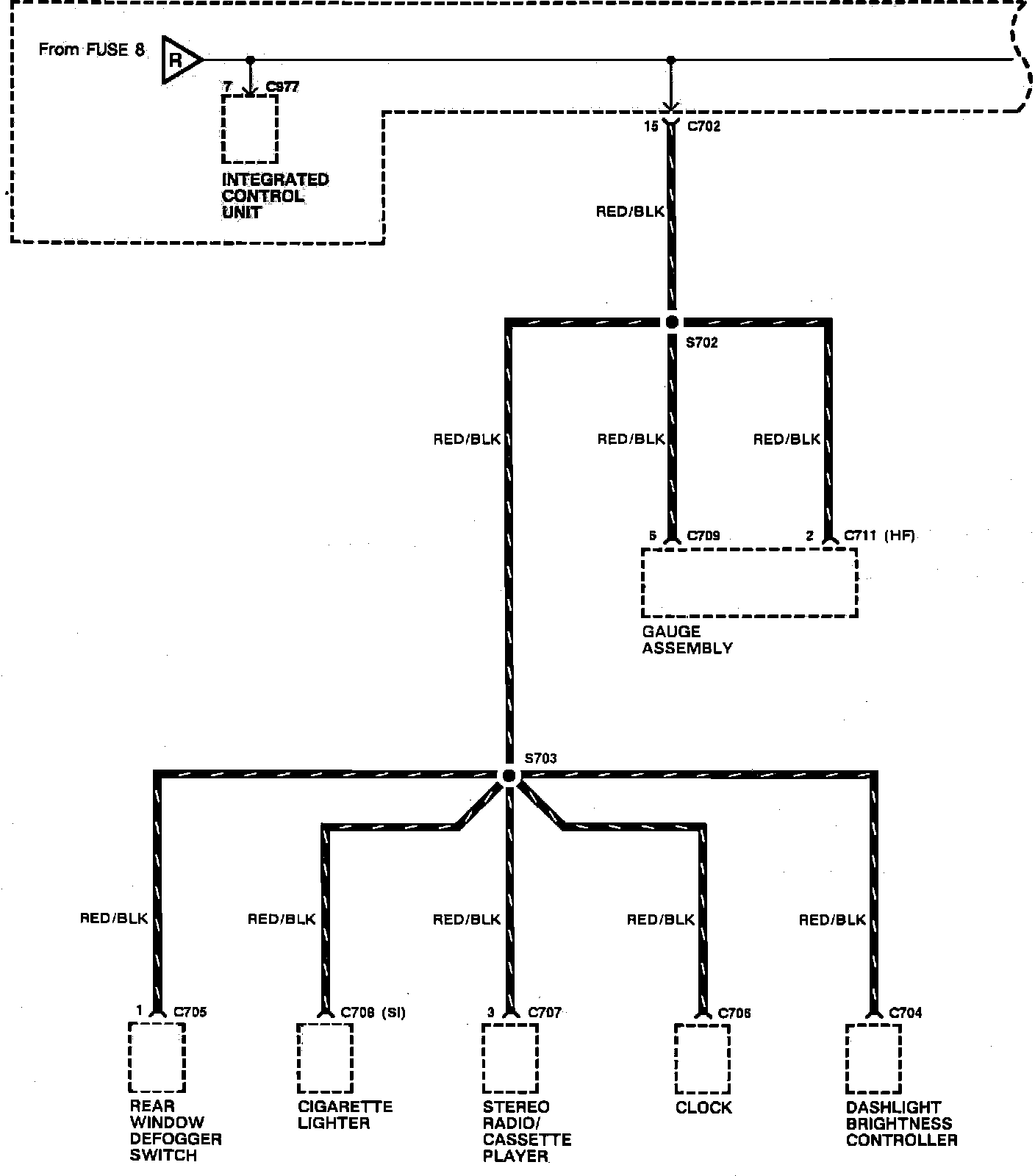

Headlamp Switch. Wiring Circuit:

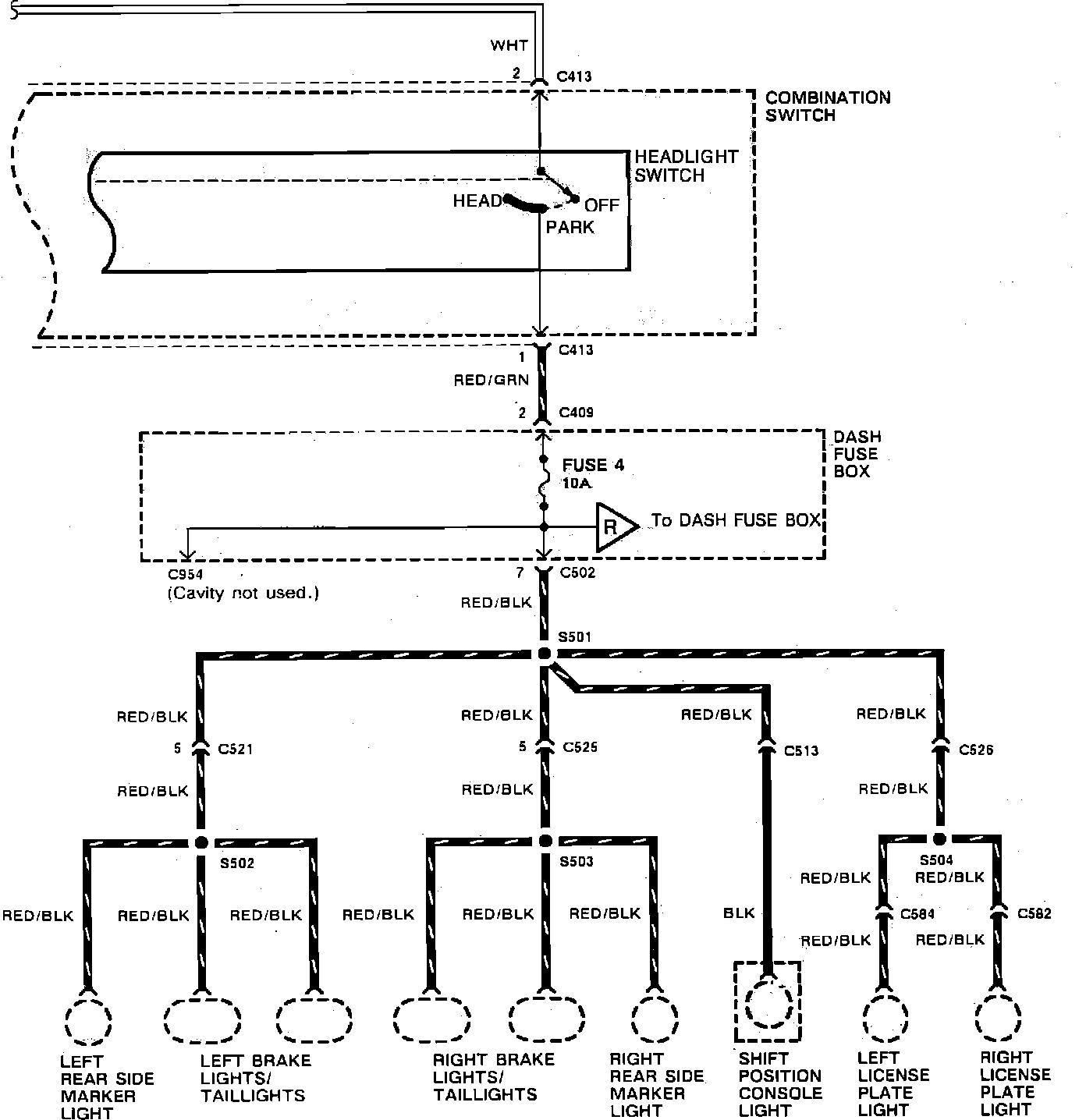

Headlamp Switch. Wiring Circuit:
