CRX DX L4-1493cc 1.5L SOHC (D15B2) TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Tachometer
Tachometer

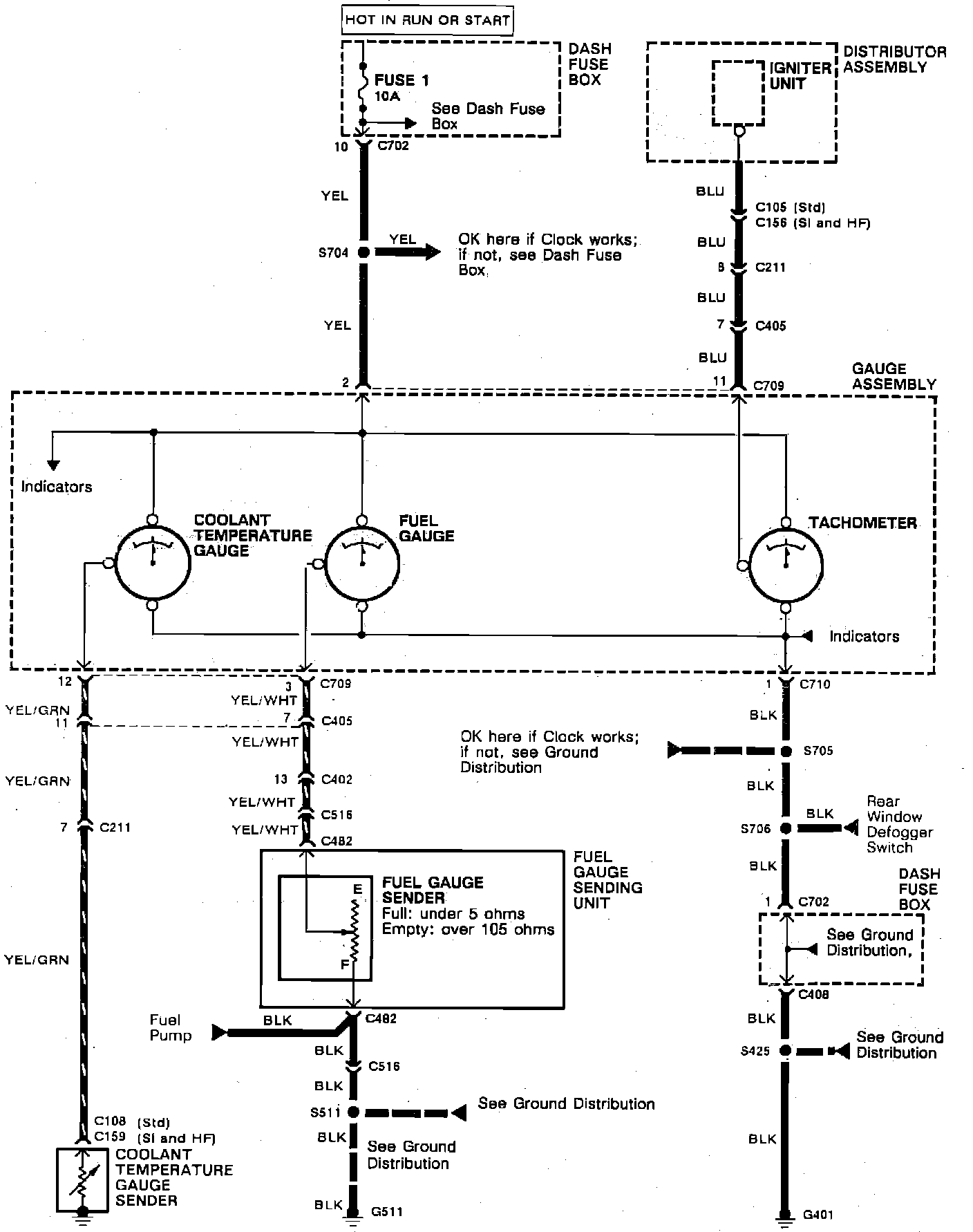

Gauges Wiring Circuit:
