Home >> Honda >> 1989 >> CRX DX L4-1493cc 1.5L SOHC (D15B2) TBI >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Testing and Inspection

Evaporative Emissions System: Testing and Inspection

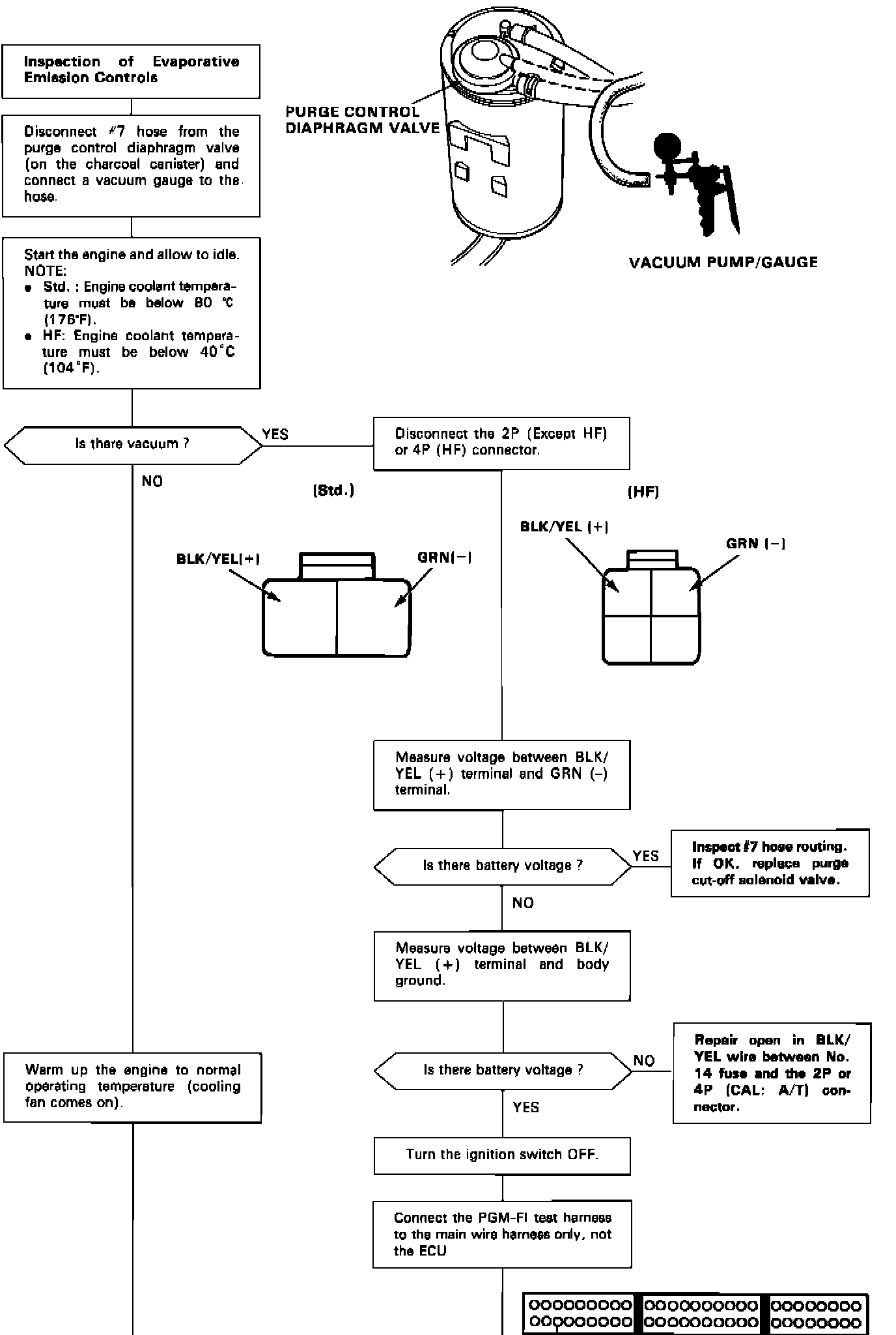

��3,R4,Fig. 62c Troubleshooting Evaporative Emission Control (std. and HF):
