Electrical Diagrams

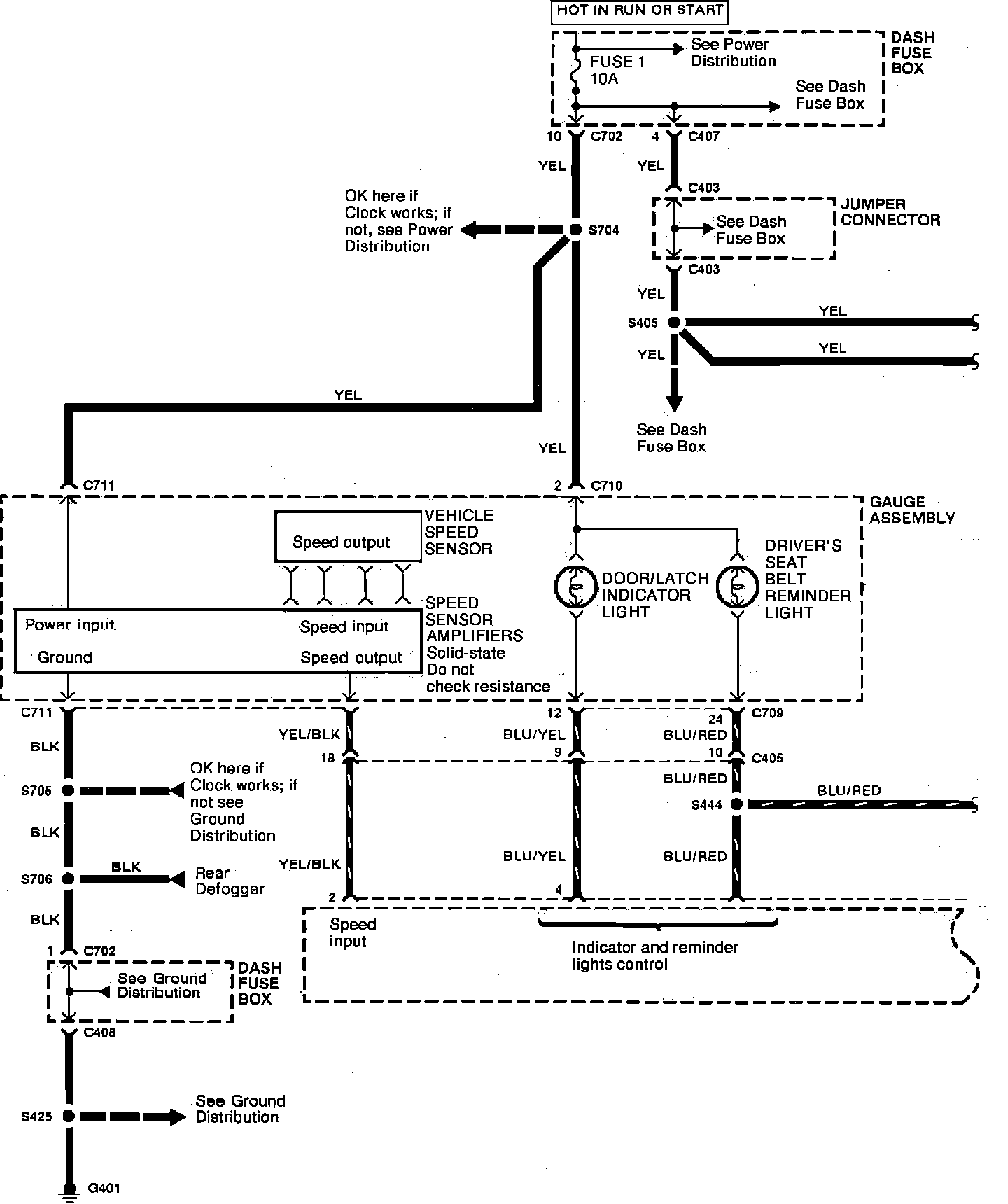

Automatic Seatbelt. Wiring Circuit:



Automatic Seatbelt. Wiring Circuit:



Automatic Seatbelt. Wiring Circuit:



Automatic Seatbelt. Wiring Circuit:
