Home
>>
Honda
>>
1989
>>
CRX HF L4-1493cc 1.5L SOHC (D15B6) MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Locations
>>
Control Box Components
Control Box Components

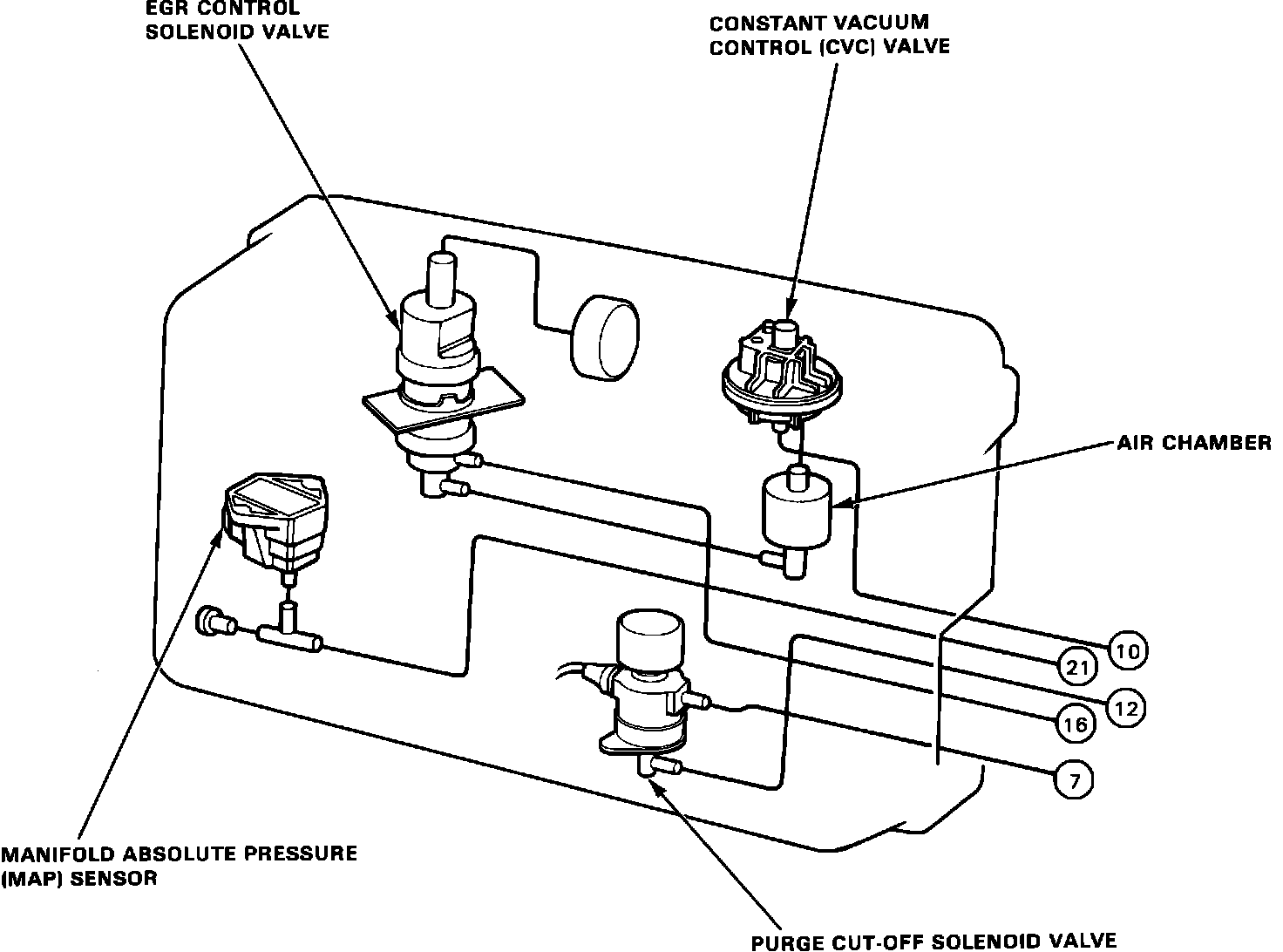

Fig. 22 Vacuum Control Box (HF):
