CRX HF L4-1493cc 1.5L SOHC (D15B6) MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Locations
>>
Air Intake System
Air Intake System

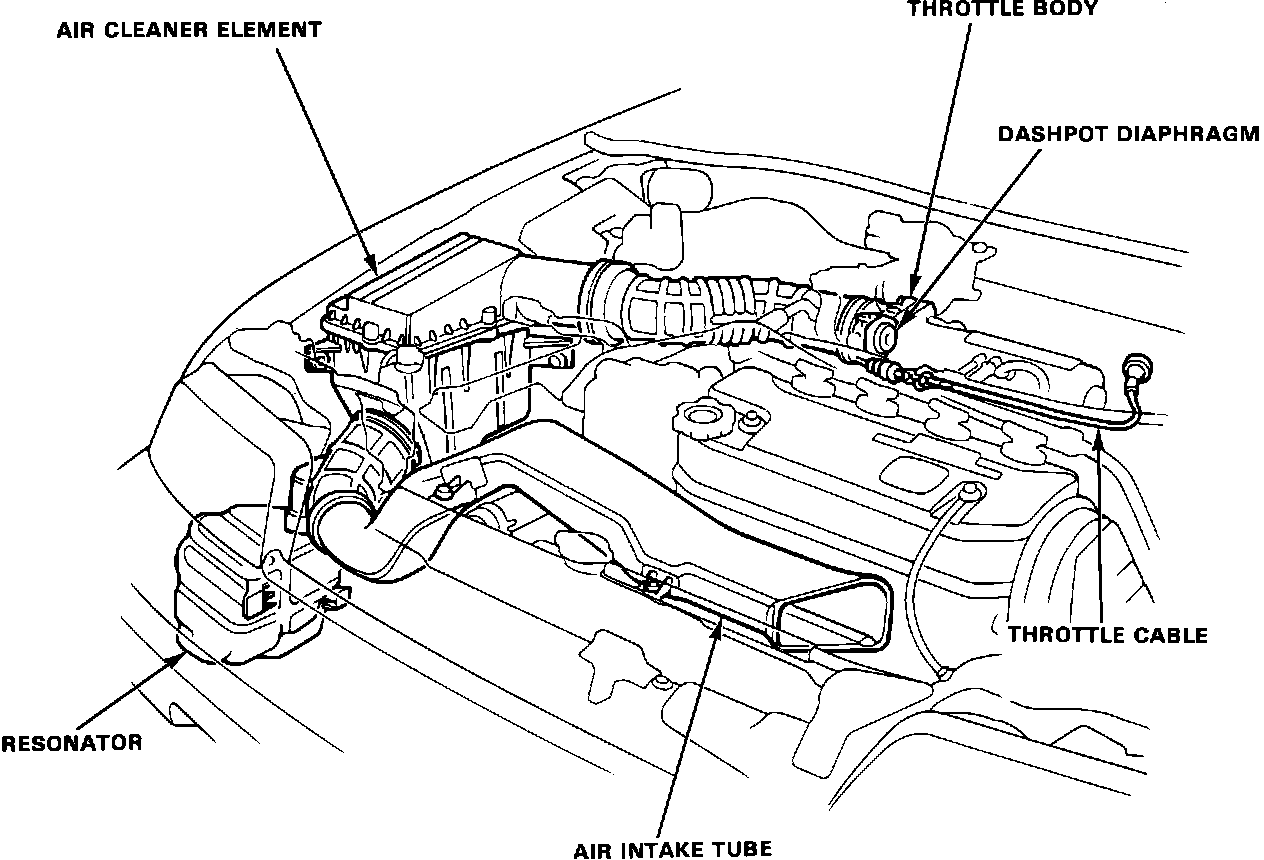

Fig. 14 Intake Air Components (HF Si):
