Ignition System Diagrams

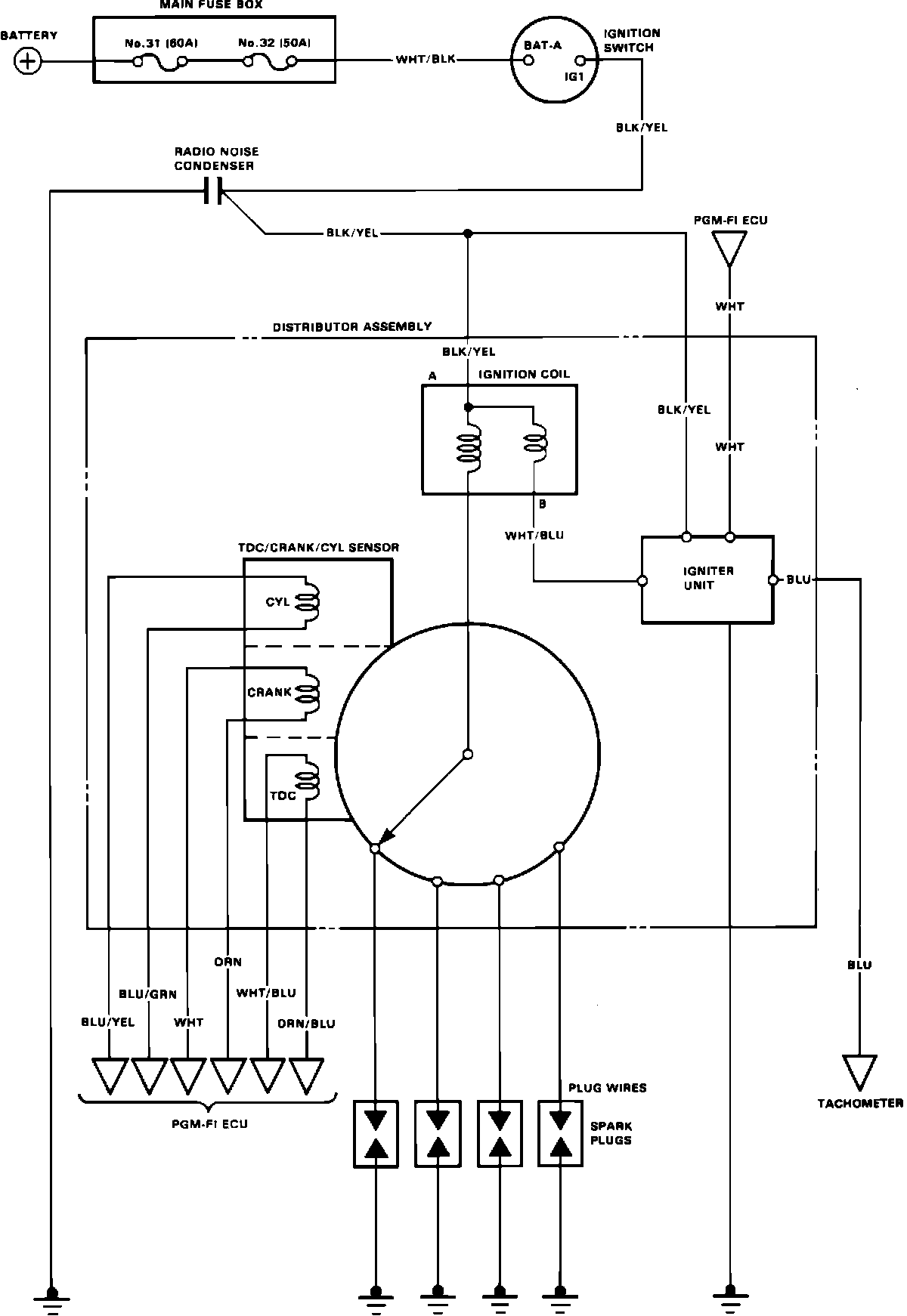

Circuit Diagram:






For additional wiring diagram information refer to the CHASSIS ELECTRICAL DIAGRAMS section.
