Electrical Diagrams

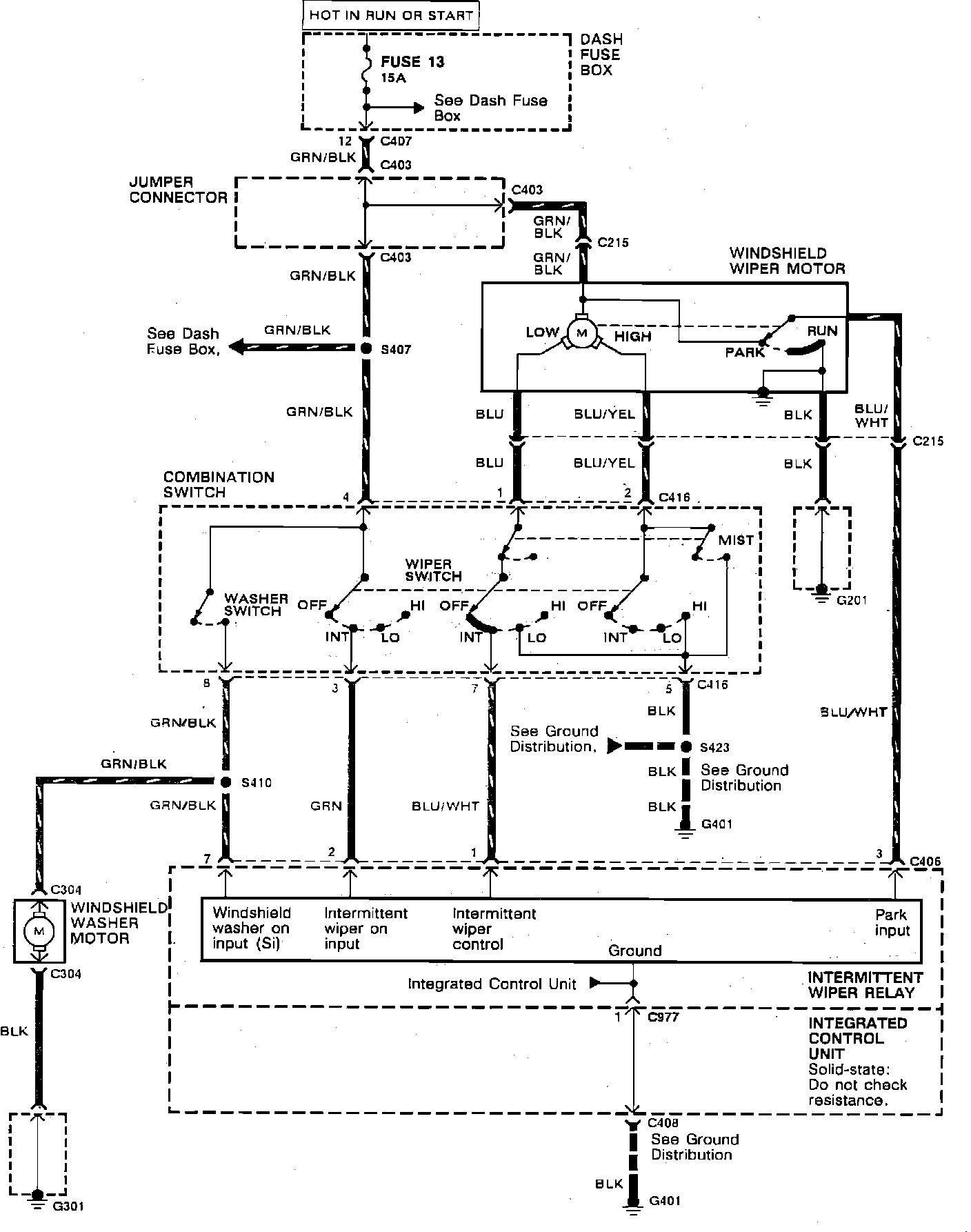

Front Windshield Washer/Wiper. Wiring Circuit:

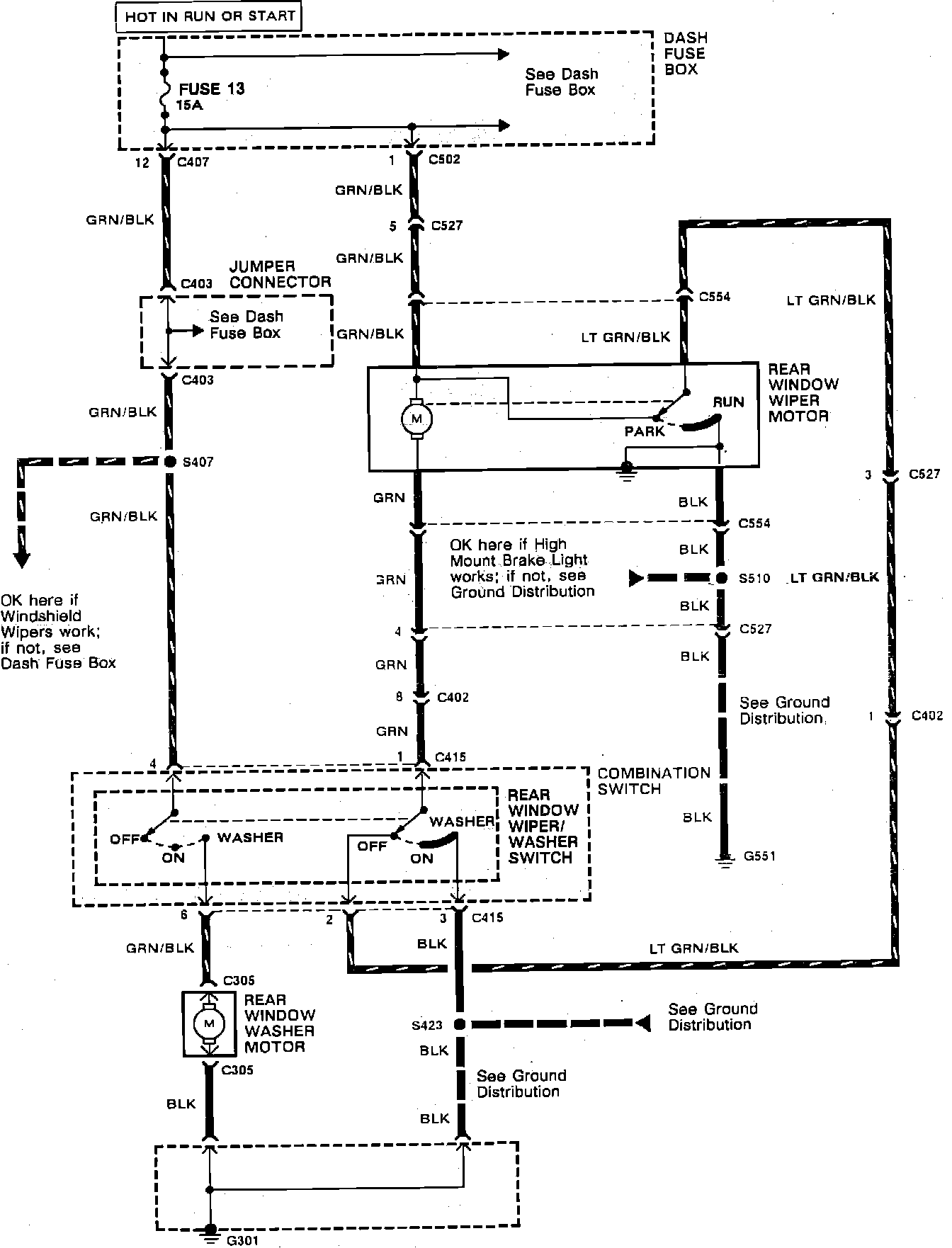

Rear Washer/Wiper. Wiring Circuit:
