Audible Warning Device
>>
Hatchback/Sedan
Hatchback/Sedan

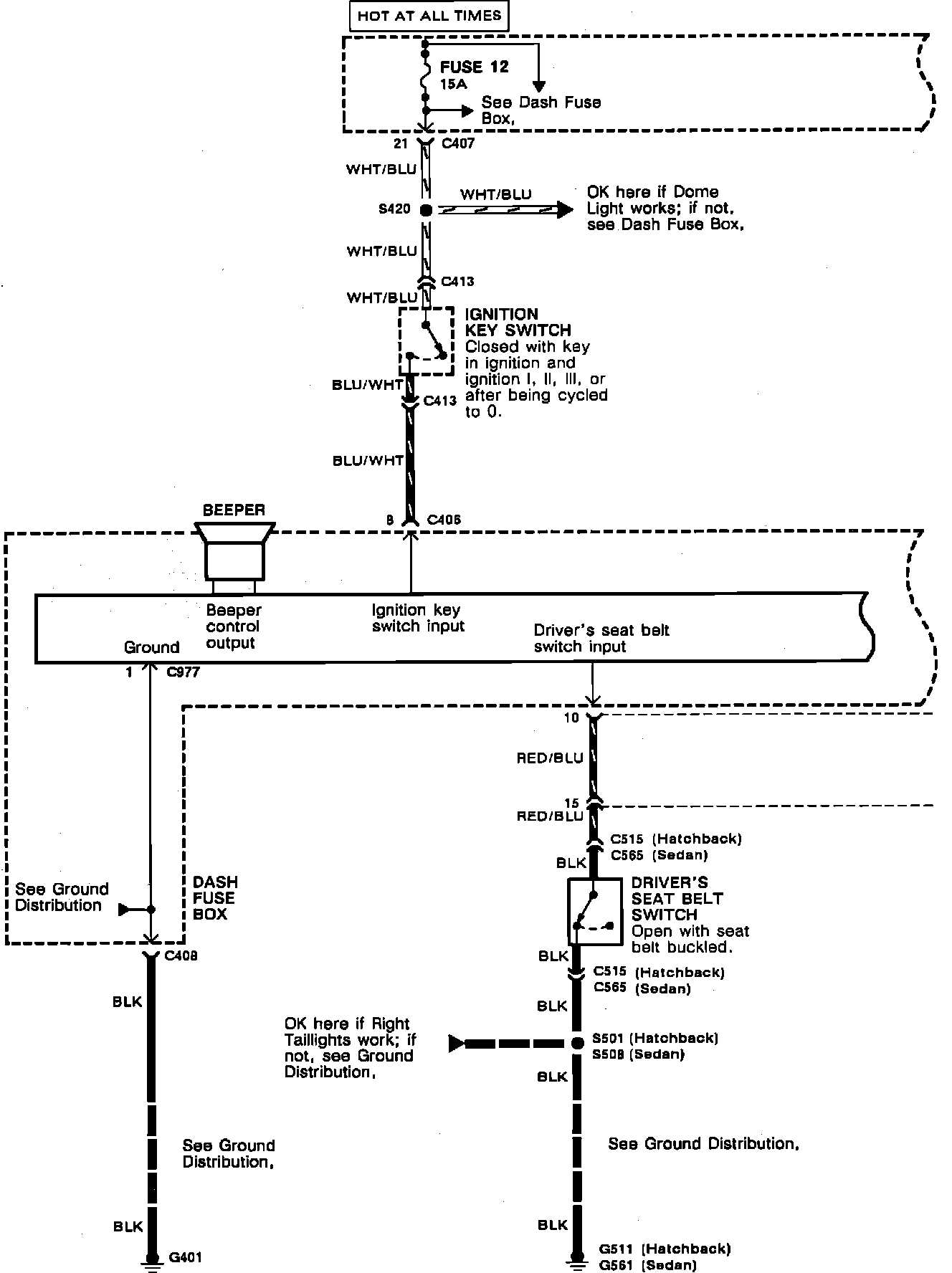

Key-On & Seatbelt Warning System. Wiring Circuit:
Key-On & Seatbelt Warning System. Wiring Circuit:
