Vacuum Diagram
>>
Except California W/Automatic Transmission
Except California W/Automatic Transmission

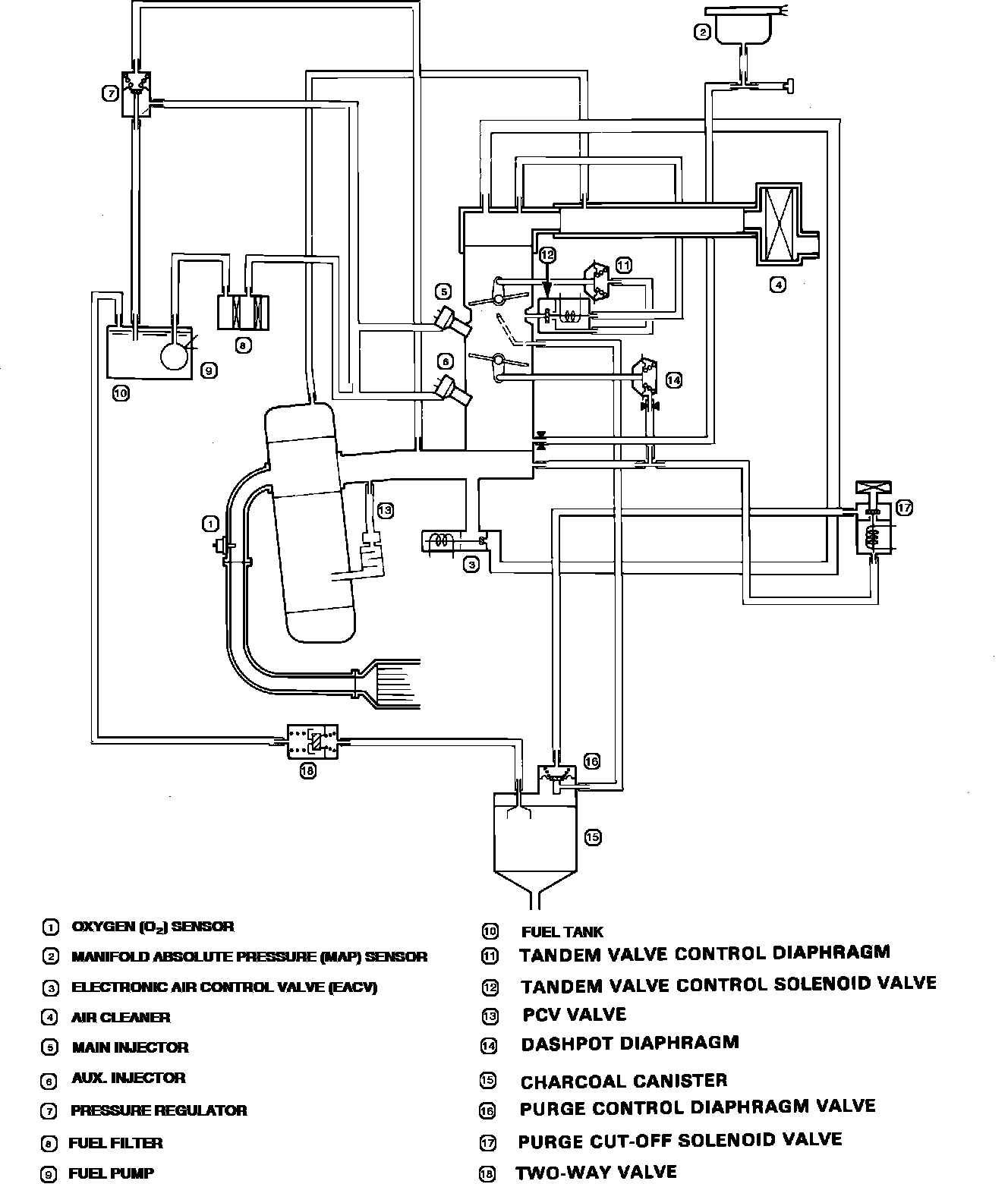

Fig. 11 Vacuum Diagram (Except CALIFORNIA A/T):
