Civic Hatchback L4-1493cc 1.5L SOHC (D15B2) TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Horn
>>
Wagon
Wagon

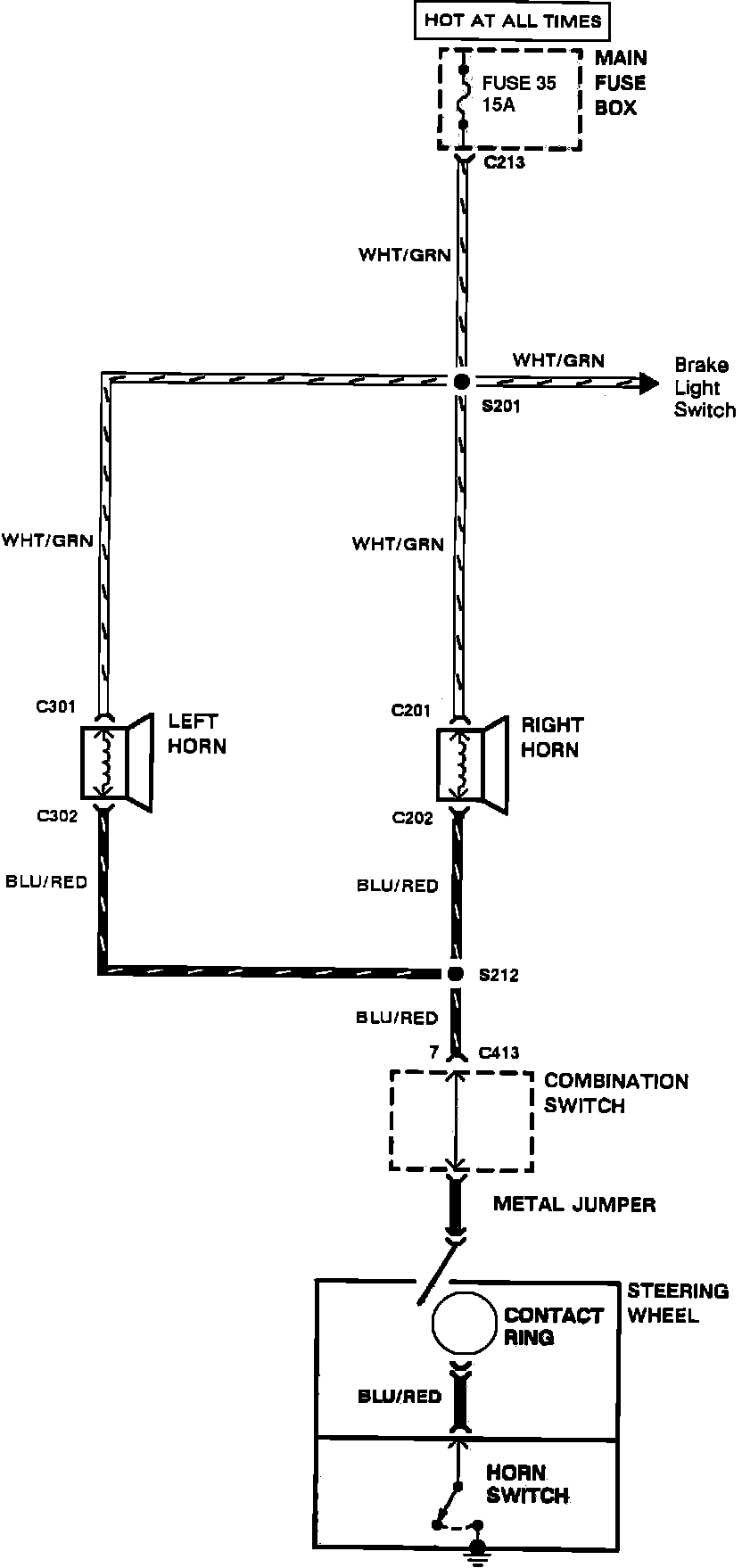

Horns. Wiring Circuit:
