Interior Lighting Module
>>
Hatchback/Sedan
Hatchback/Sedan

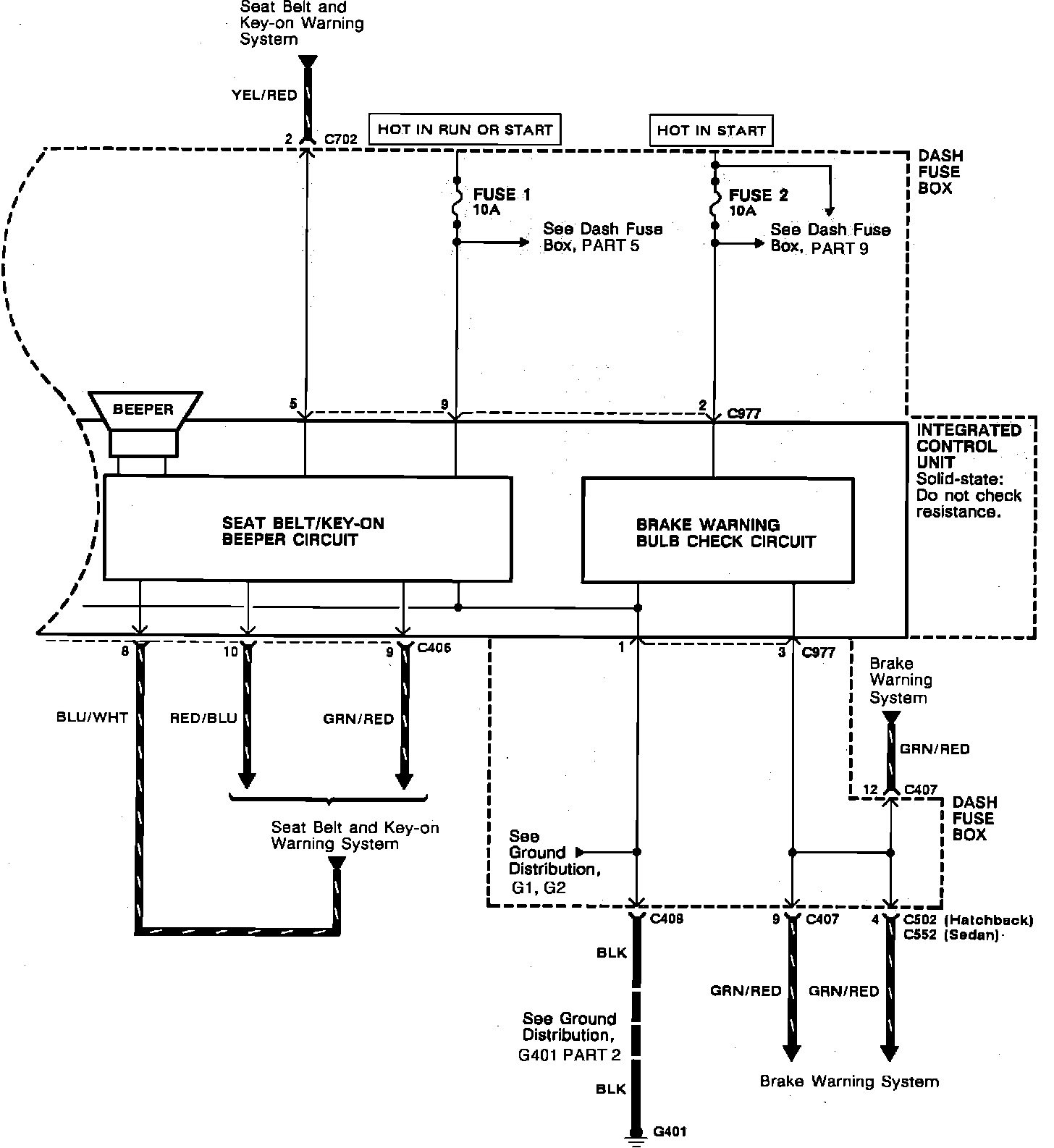

Integrated Control Unit. Wiring Circuit:

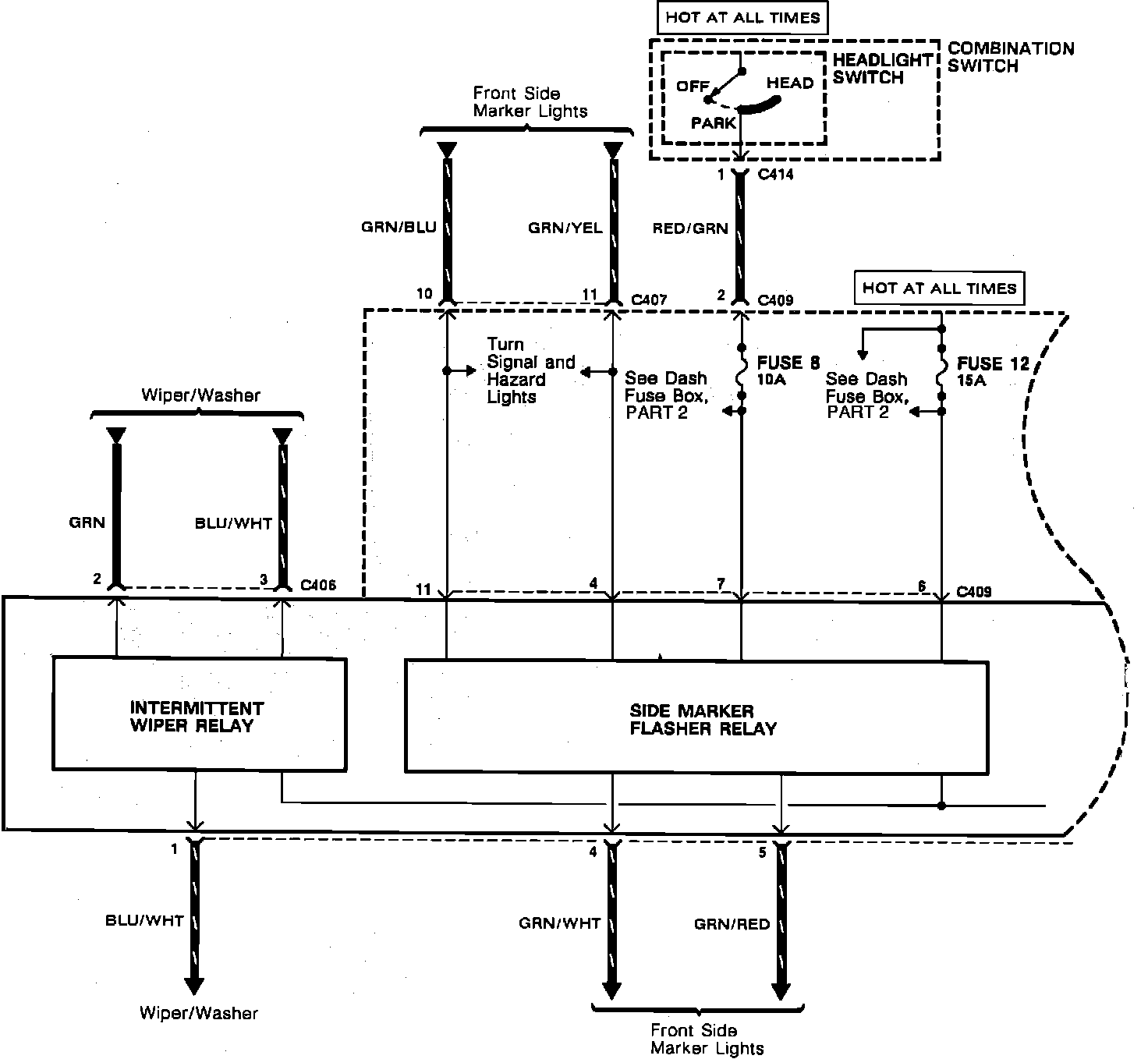

Integrated Control Unit. Wiring Circuit:
