Turn Signals
>>
Hatchback & Sedan
Hatchback & Sedan

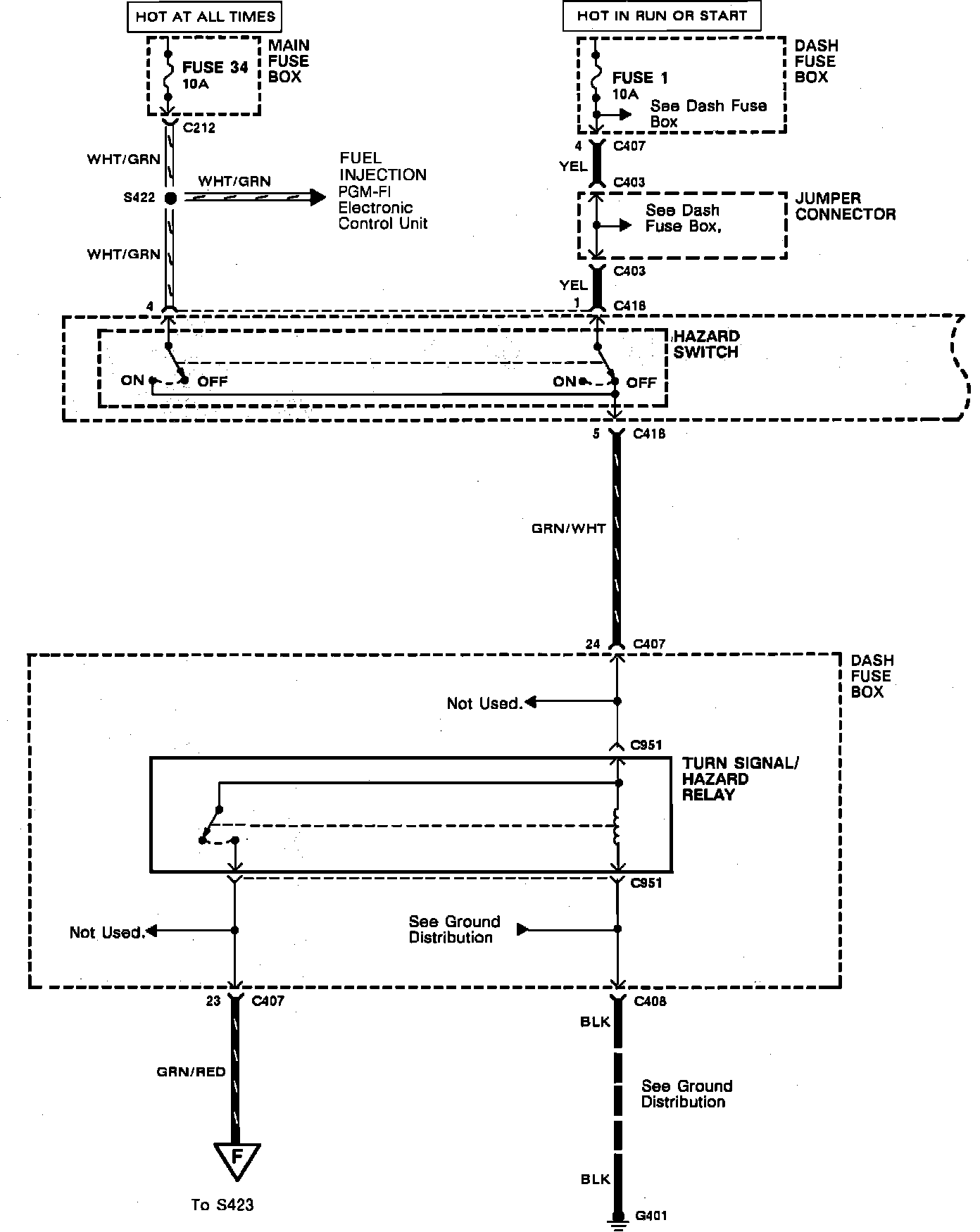

Hazard & Turn Signal Lamps. Wiring Circuit:
Hazard & Turn Signal Lamps. Wiring Circuit:
