Wagon

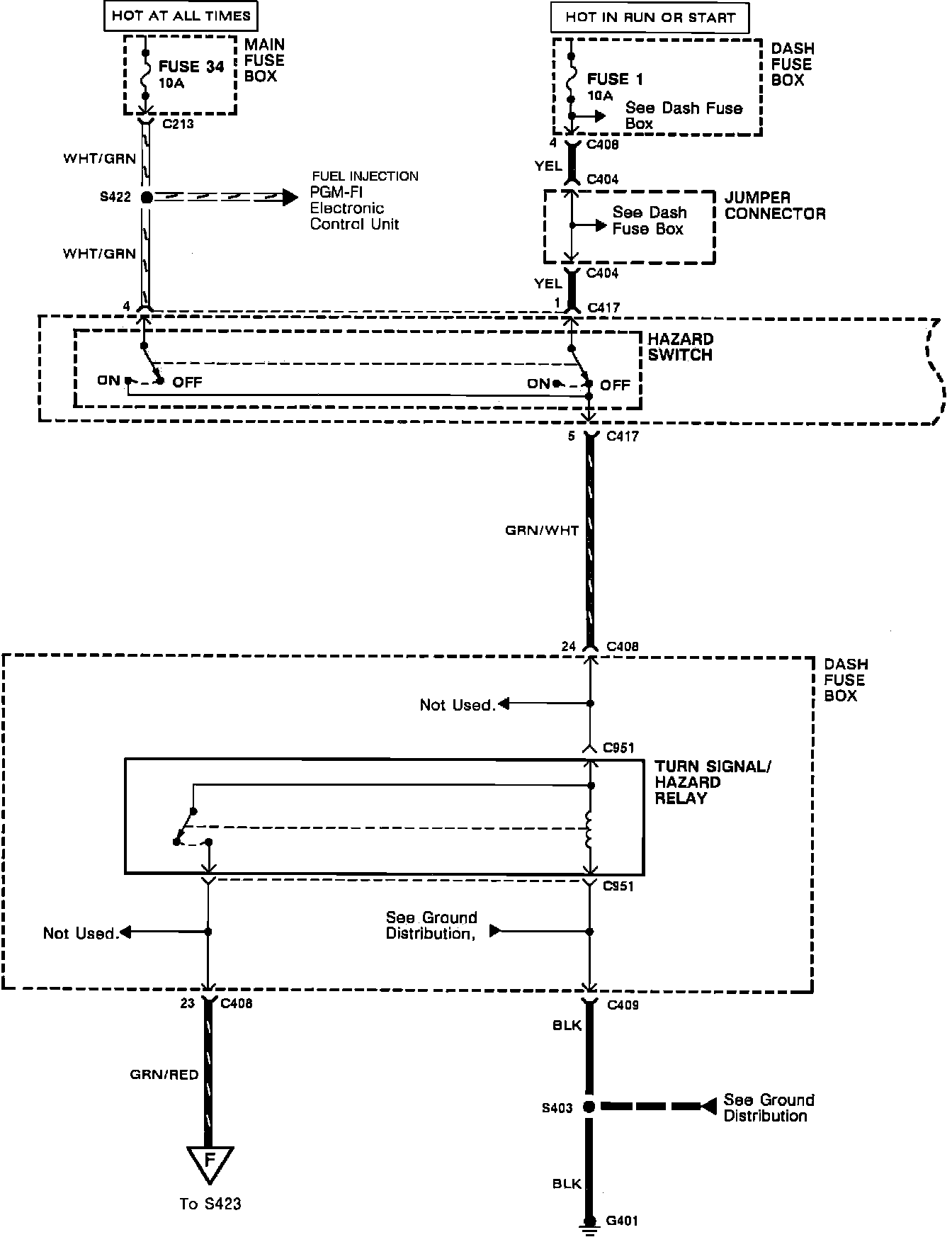

Hazard & Turn Lamps. Wiring Circuit:

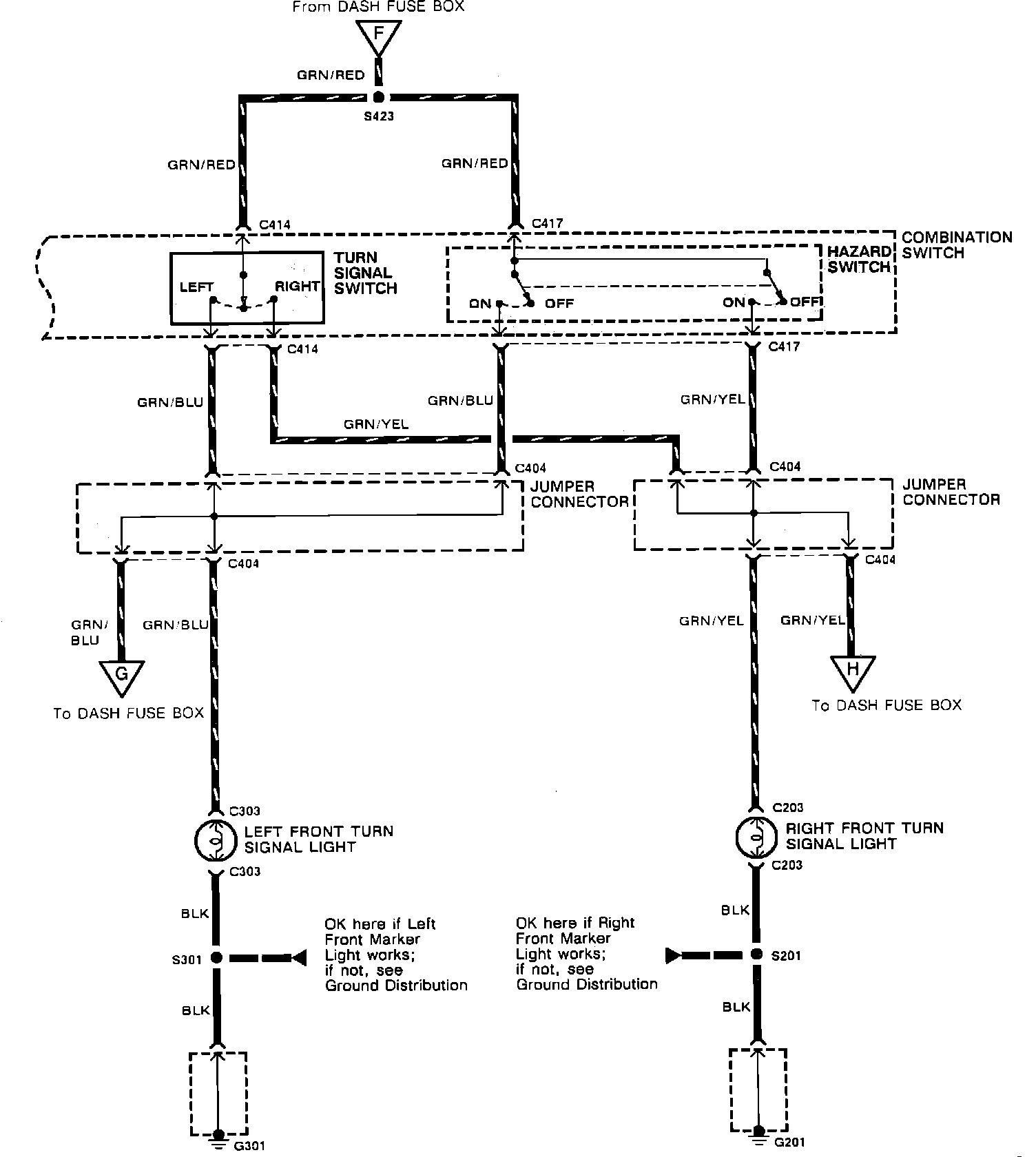

Hazard & Turn Lamps. Wiring Circuit:



Hazard & Turn Lamps. Wiring Circuit:
