Honda
>>
1989
>>
Civic Wagon 4WD L4-1590cc 1.6L SOHC (D16A6) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk Lamp
>>
Wagon
Wagon

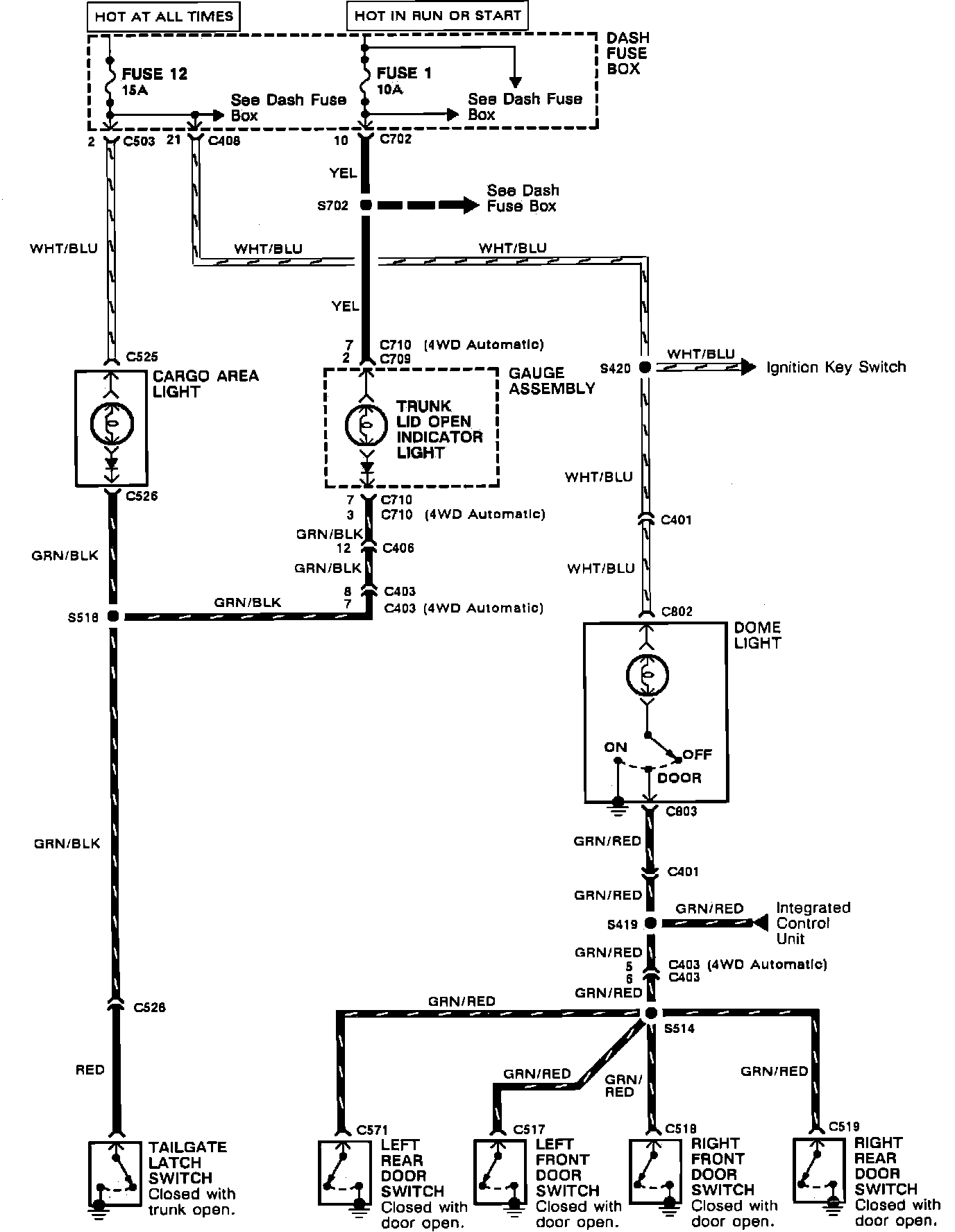

Dome & Trunk Lamps. Wiring Circuit:
