Interior Lighting Module
Interior Lighting Module

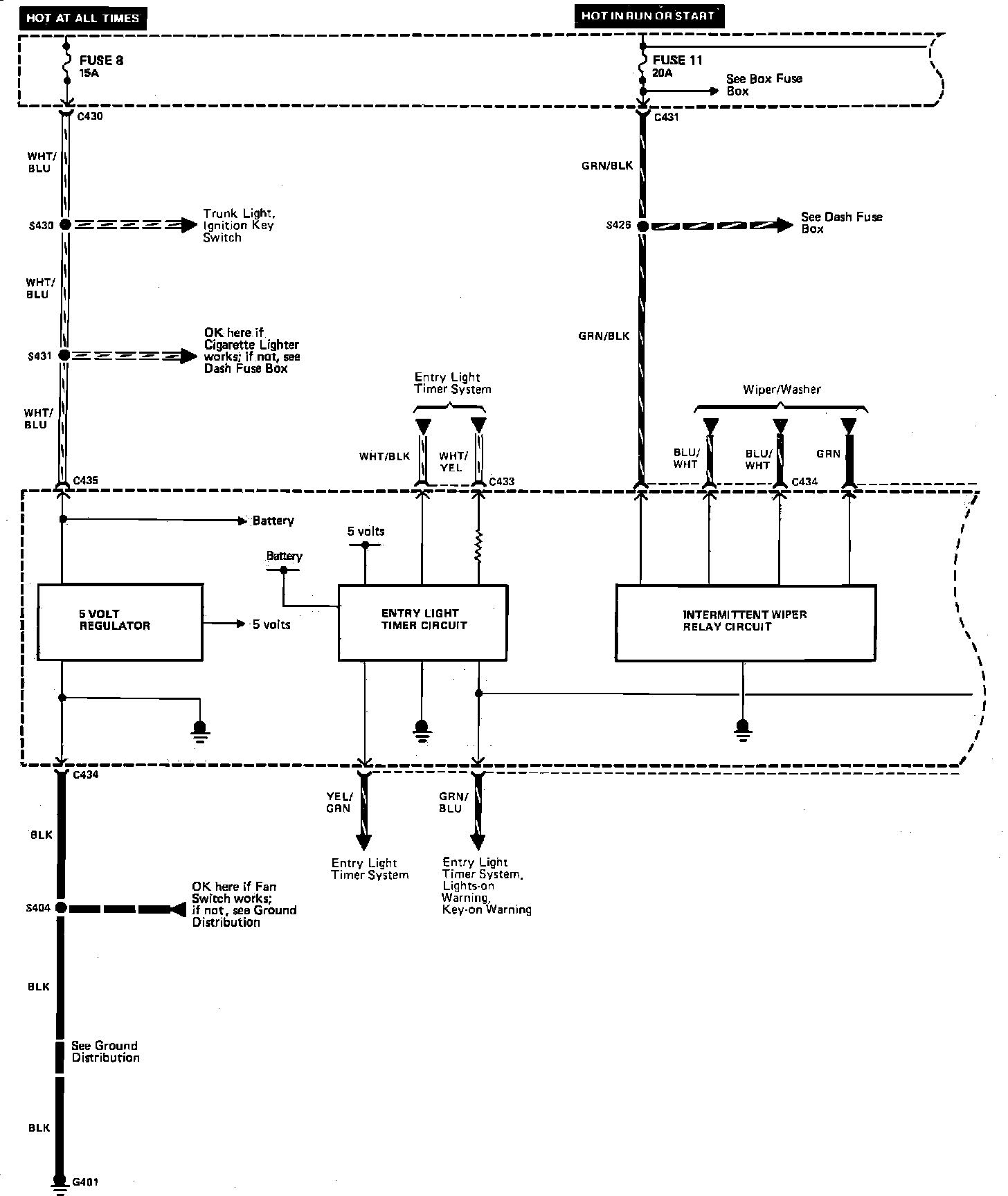

Intergrated Control Unit - Part 1 of 3:

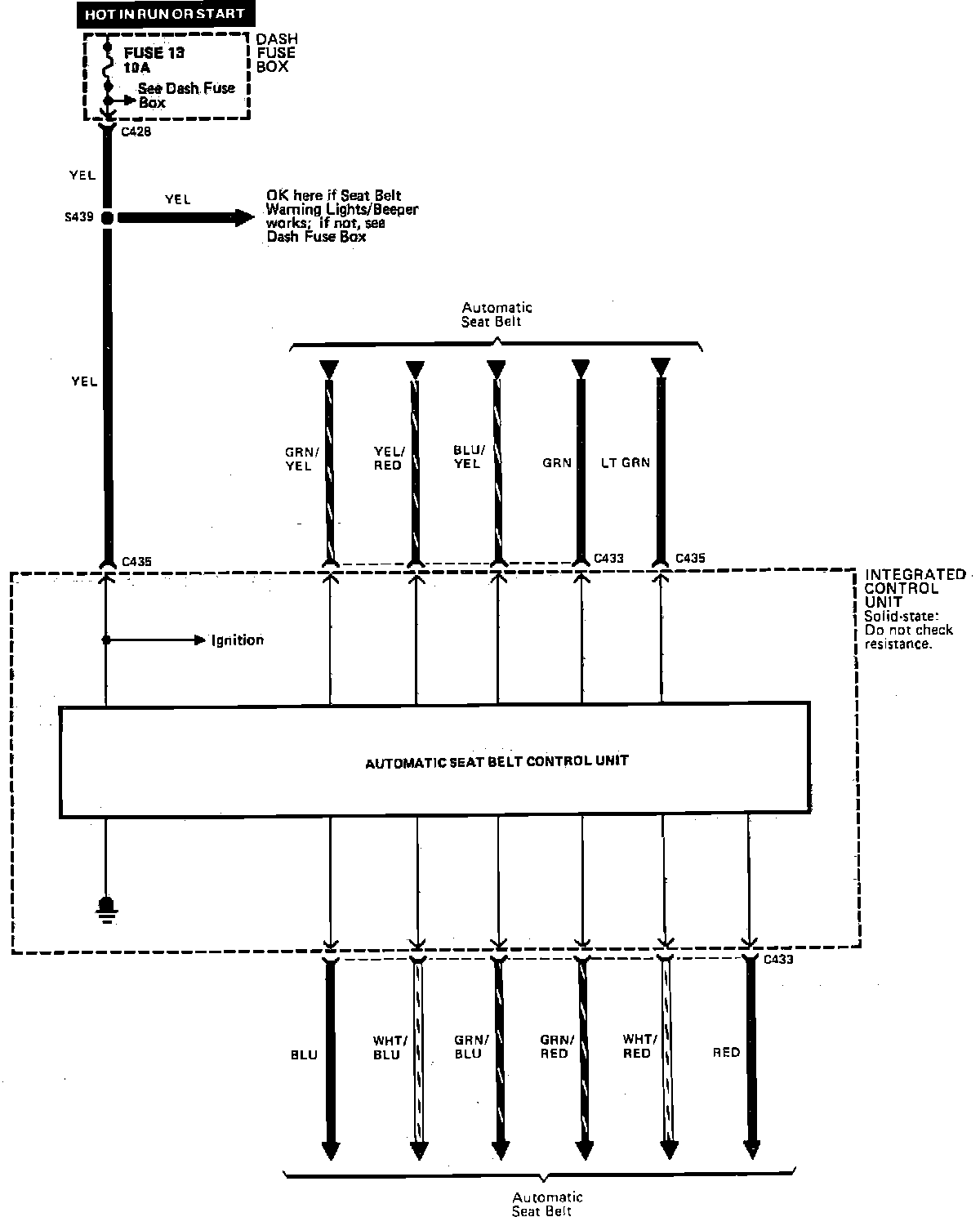

Intergrated Control Unit:

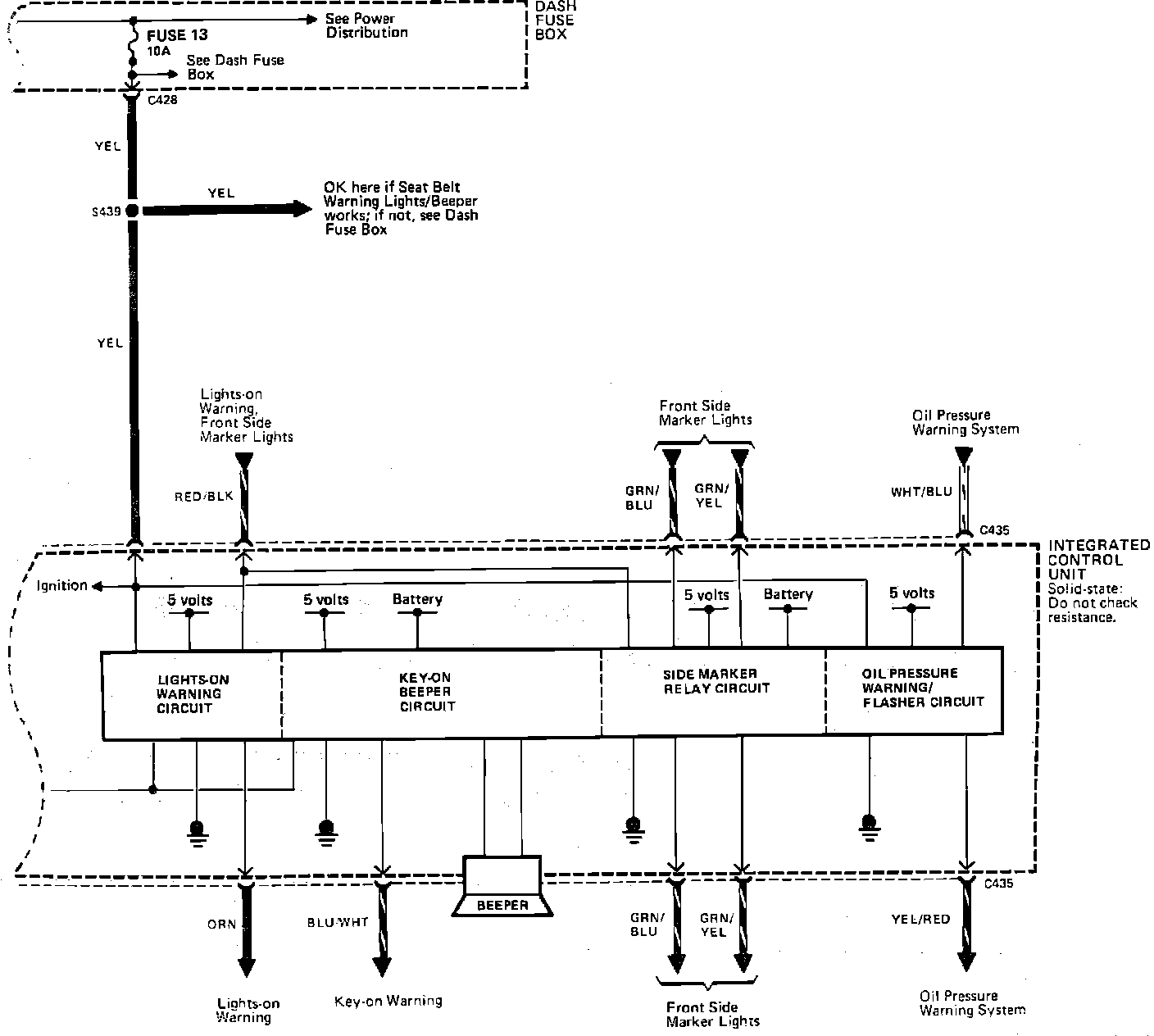

Intergrated Control Unit:
