Mixture Control Solenoid - Slow Cut

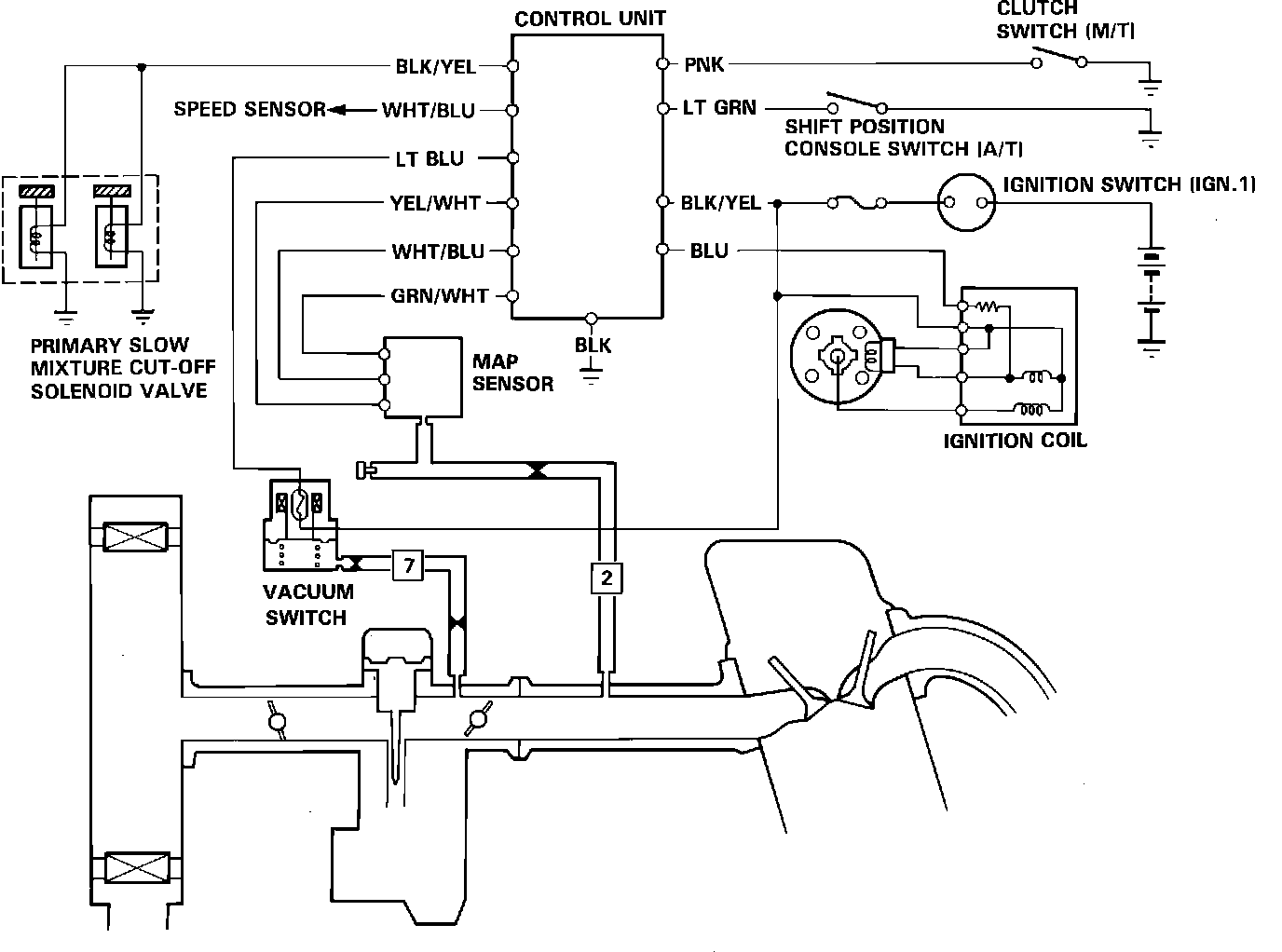

Fig. 24 Primary Slow Mixture Cut-Off Wiring And Vacuum Hose Diagram:
