Vanity Lamp

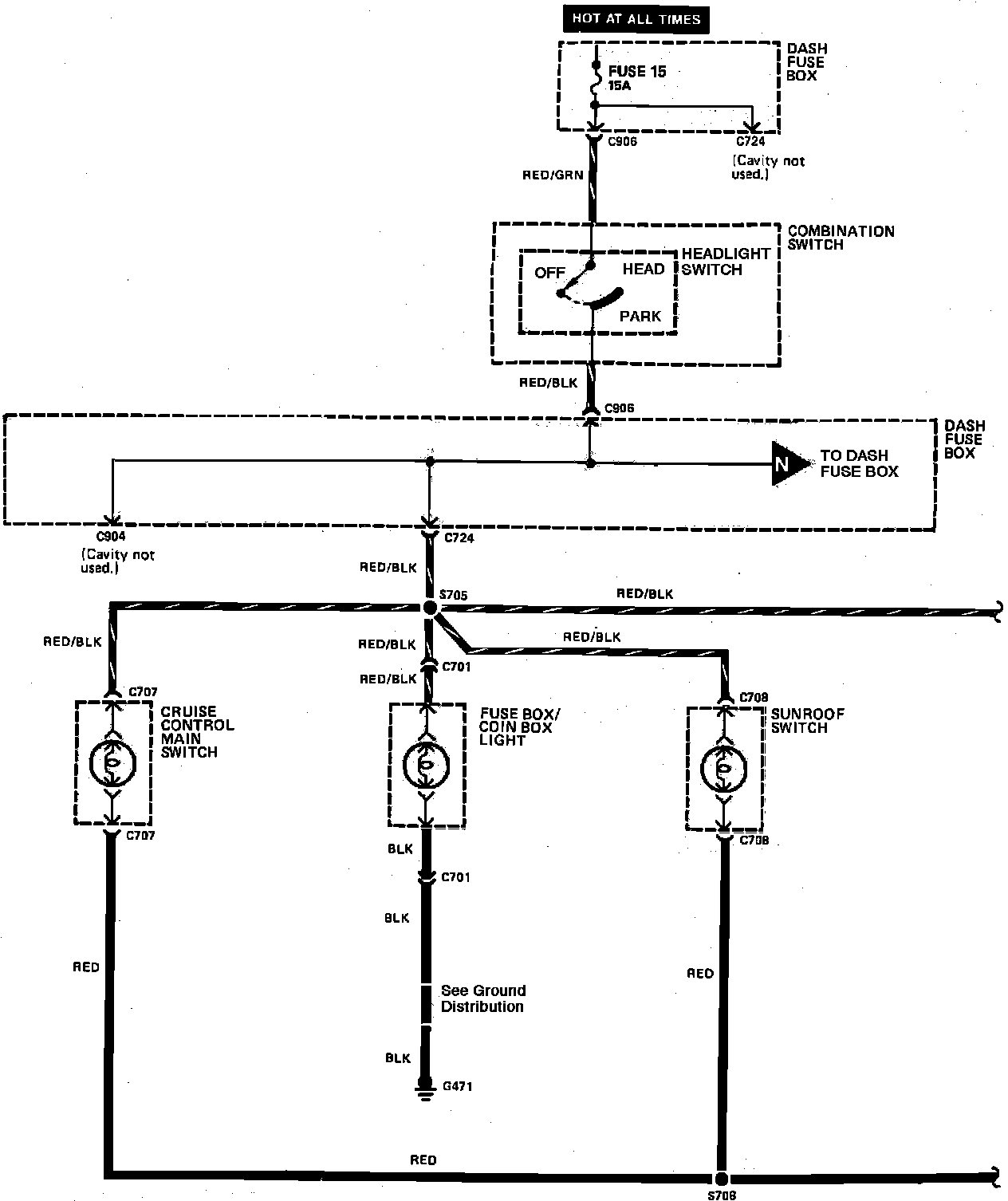

Dash & Console Lights:

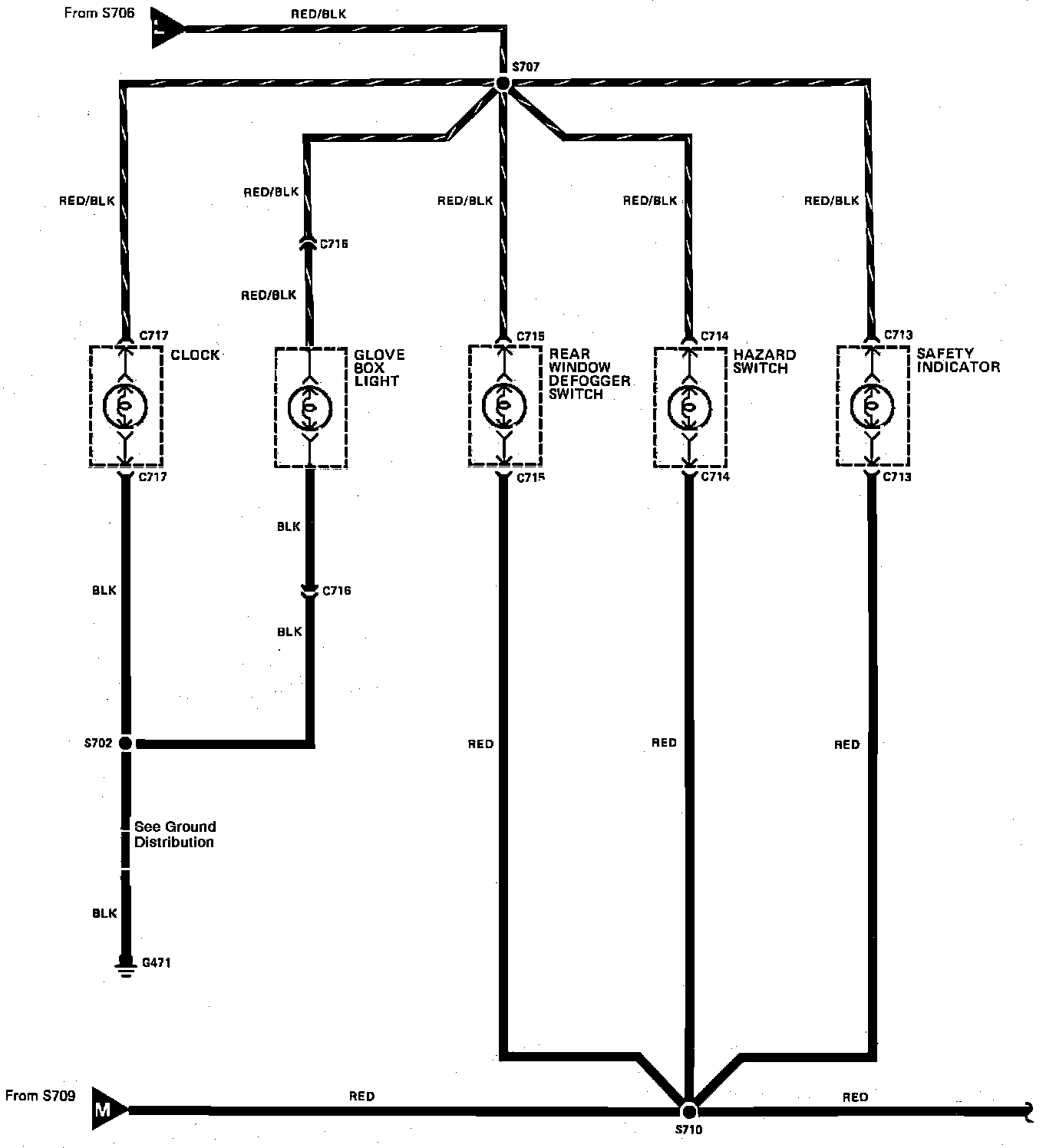

Dash & Console Lights:

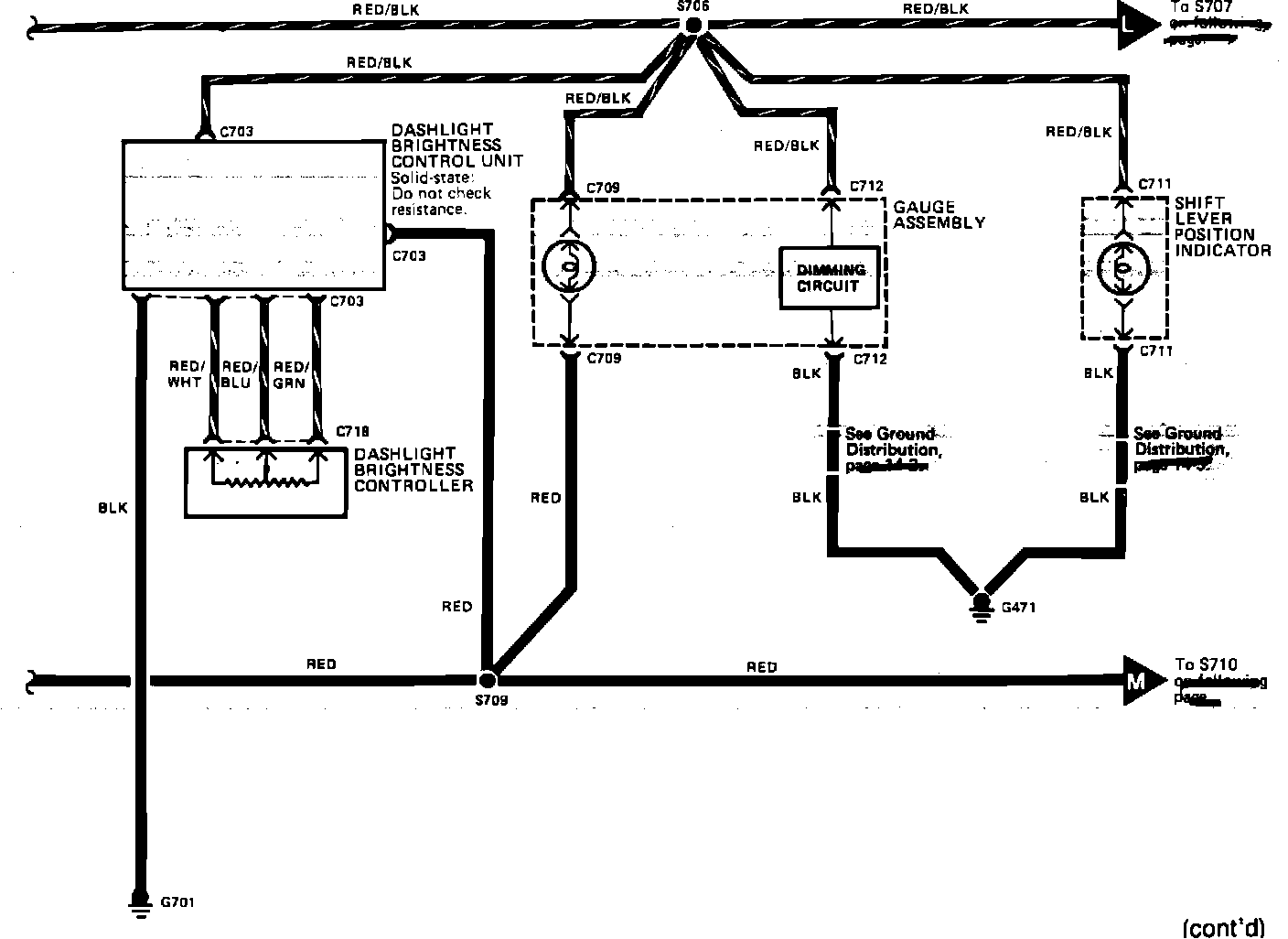

Dash & Console Lights:



Dash & Console Lights:
