Power Distribution
Power Distribution
Power Distribution. Fuses 24, 29, 30, 31 & 32:

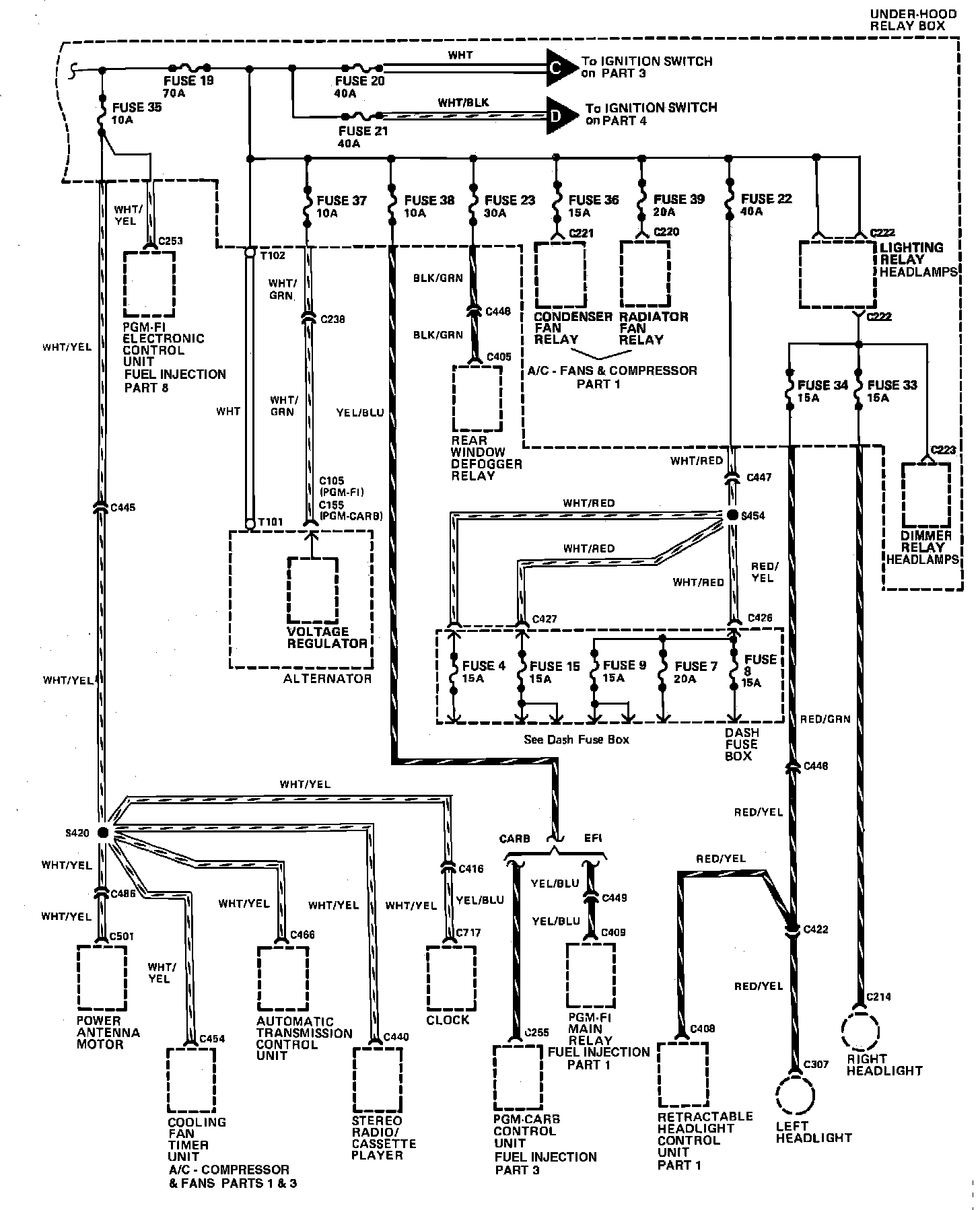

Power Distribution. Fuses 4, 7, 9, 15, 19, 20, 21, 22, 23, 33, 34, 35, 36, 37, 38 & 39:
