Home >> Honda >> 1989 >> Prelude L4-1958cc SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations >> Non-California

Non-California

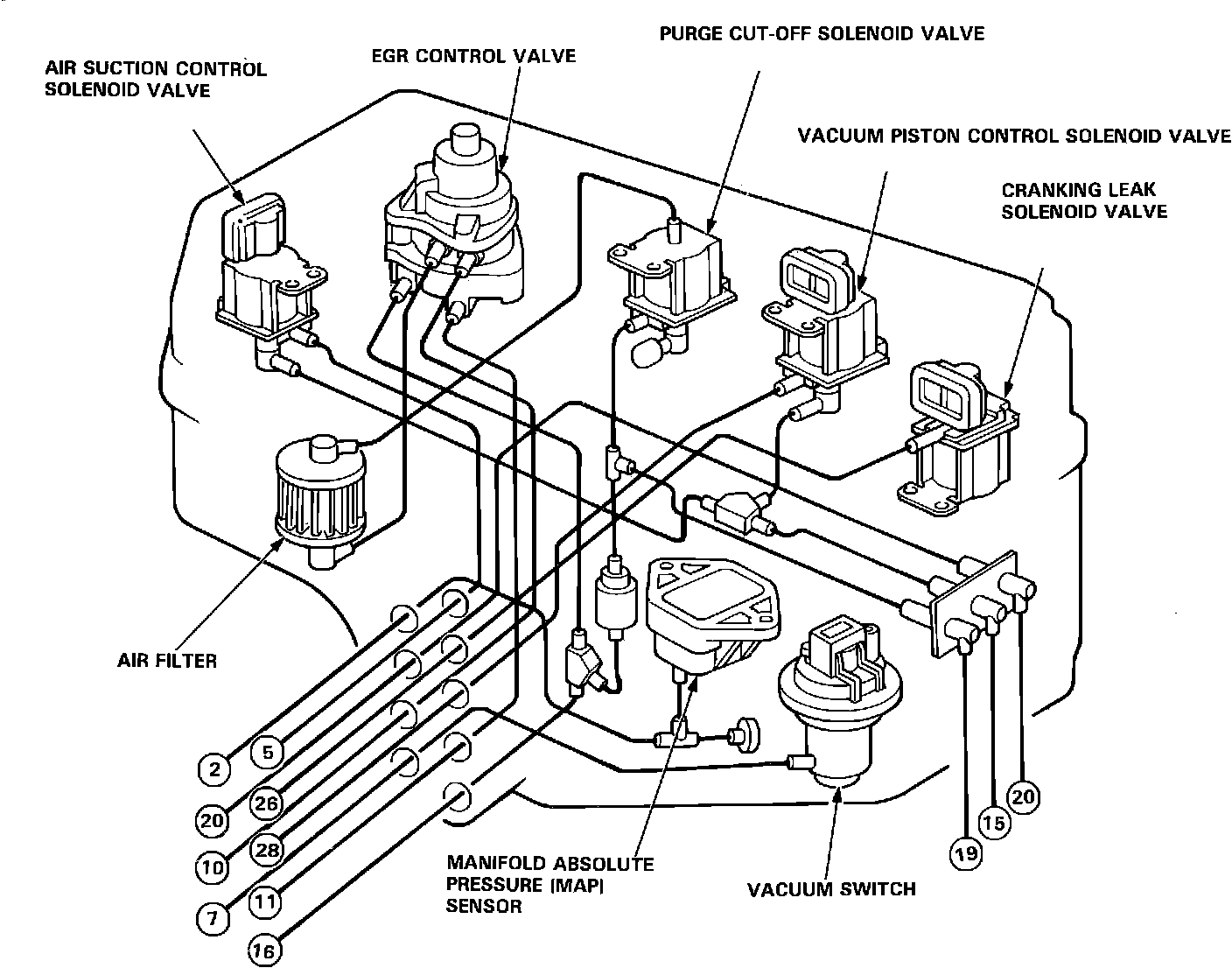

Fig. 7 Vacuum Control Box Components (49 State):
